توضیحات
CN3717 يک مدار مجتمع مديريت شارژ باتري سرب-اسيد باک حالت PWM است. اين مي تواند به طور مستقل و خودکار شارژ باتري هاي سرب اسيد را مديريت کند. داراي مزاياي اندازه بسته بندي کوچک، اجزاي جانبي کم و استفاده ساده است. CN3717 داراي حالت هاي شارژ قطره اي، جريان ثابت، شارژ بيش از حد و شارژ شناور است که براي شارژ باتري هاي سرب اسيدي بسيار مناسب است. در حالت شارژ بيش از حد و شارژ شناور، ولتاژ شارژ توسط يک شبکه تقسيم کننده مقاومت خارجي تنظيم مي شود. در حالت شارژ جريان ثابت، جريان شارژ توسط يک مقاومت خارجي تنظيم مي شود. در مرحله اضافه شارژ، جريان شارژ به تدريج کاهش مي يابد. هنگامي که جريان شارژ به مقدار تعيين شده توسط مقاومت خارجي کاهش مي يابد، CN3717 وارد حالت شارژ شناور مي شود. در حالت شارژ شناور، اگر ولتاژ باتري به 82.2 درصد ولتاژ اضافه شارژ تنظيم شده کاهش يابد، يک چرخه شارژ جديد به طور خودکار شروع مي شود. . هنگامي که برق ورودي قطع مي شود يا ولتاژ ورودي کمتر از ولتاژ باتري است، CN3717 به طور خودکار وارد حالت خواب کم مصرف مي شود. ساير عملکردها عبارتند از: قفل ولتاژ پايين ورودي، نظارت بر دماي باتري، حفاظت از ولتاژ اضافي ترمينال باتري و نشان دادن وضعيت شارژ. CN3717 از يک بسته 16 پين TSSOP استفاده مي کند.
Description

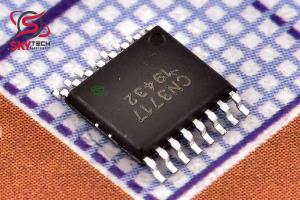

CN3717 is a PWM buck mode lead-acid battery charging management integrated circuit. It can independently and automatically manage the charging of lead-acid batteries. It has the advantages of small package size, few peripheral components and simple use. CN3717 has trickle charge, constant current, overcharge and float charge modes, which is very suitable for charging lead-acid batteries. In overcharge and float charge modes, the charging voltage is set by an external resistor divider network; in constant current charge mode, the charging current is set by an external resistor. In the overcharge stage, the charging current gradually decreases. When the charging current drops to the value set by the external resistor, CN3717 enters the float charge state. In the float charge state, if the battery voltage drops to 82.2% of the set overcharge voltage, a new charging cycle starts automatically . When the input power fails or the input voltage is lower than the battery voltage, CN3717 automatically enters a low-power sleep mode. Other functions include input low voltage latch, battery temperature monitoring, battery terminal overvoltage protection and charging status indication. CN3717 uses a 16-pin TSSOP package.
|
