تراشه شارژ باتری

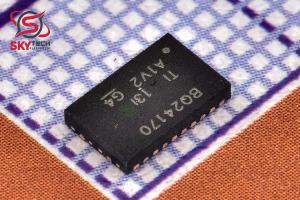

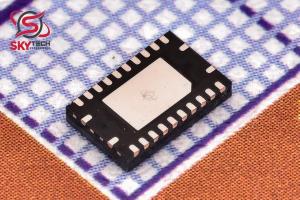

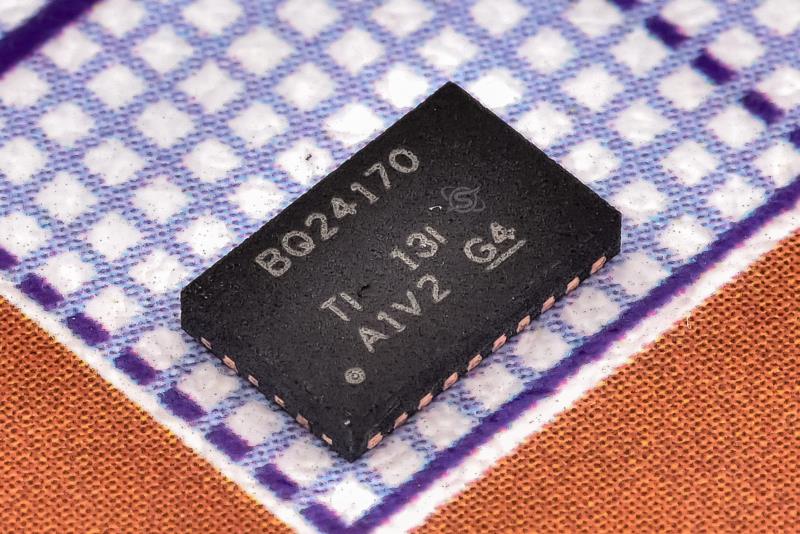

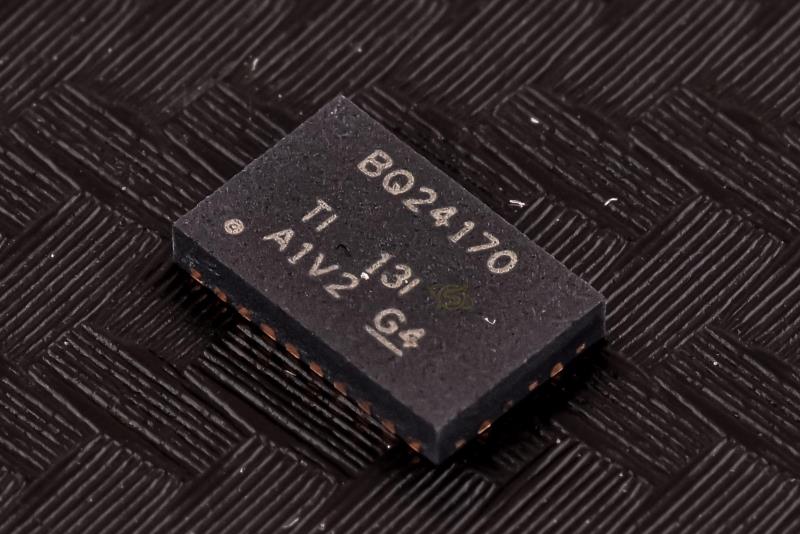

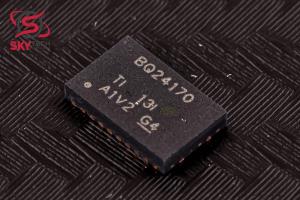

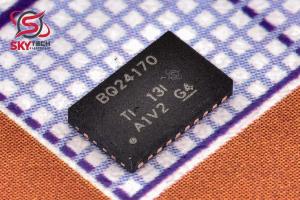

BQ24170RGY
1.6MHz Synchronous Switched-Mode Li-Ion and Li-Polymer Stand-Alone Battery Charger With Integrated MOSFETs and Power Path Selector
کیفیت: ORIGINAL(distributor) پکیج: VQFN-24
قیمت تک فروشی 2,625,523 ریال
قیمت عمده 2,502,308 ریال (10 به بالا)
قیمت ویژه 2,453,022 ریال (100 به بالا)
قیمت فوق العاده2,428,379 ریال (1000 به بالا)
 قیمت تک فروشی 2.695 تتر با تخفیف
14.5513.8613.5813.44
|
|
|
نوع محصول |
Battery Charger |
|
حداکثر دماي کاري |
85 سانتيگراد |
|
حداقل دماي کاري |
-40 سانتيگراد |
|
|
شرکت توليد کننده |
Texas Instruments |
|
توضیحات
bq24170/172 يک شارژر باتري ليتيوم يوني و ليتيوم پليمري مستقل با دو ماسفت برق کانال N يکپارچه است. اين يک کنترل کننده PWM سنکرون با فرکانس ثابت با تنظيم دقيق جريان ورودي، جريان شارژ و ولتاژ ارائه مي دهد. دماي بسته باتري را به دقت کنترل مي کند تا فقط در يک پنجره دماي از پيش تعيين شده شارژ شود. همچنين تشخيص باتري، پيش تهويه، پايان شارژ و نظارت بر وضعيت شارژ را فراهم مي کند. حلقه تنظيم حرارتي جريان شارژ را کاهش مي دهد تا دماي محل اتصال 120 درجه سانتيگراد در حين کار حفظ شود.
bq24170/172 باتري را در سه فاز شارژ ميکند: پيشتنظيم، جريان ثابت و ولتاژ ثابت. bq24170 يک، دو يا سه سلول را شارژ مي کند (که توسط پين CELL انتخاب مي شود)، و bq24172 براي حداکثر سه سلول Li+ قابل تنظيم است.
Description
The bq24170/172 is highly integrated stand-alone Li-ion and Li-polymer switch-mode battery charger with two integrated N-channel power MOSFETs. It offers a constant-frequency synchronous PWM controller with high accuracy regulation of input current, charge current, and voltage. It closely monitors the battery pack temperature to allow charge only in a preset temperature window. It also provides battery detection, pre-conditioning, charge termination, and charge status monitoring. The thermal regulation loop reduces charge current to maintain the junction temperature of 120°C during operation.
The bq24170/172 charges the battery in three phases: precondictioning, constant current, and constant voltage. The bq24170 charges one, two, or three cells (selected by CELL pin), and the bq24172 is adjustable for up to three series Li+ cells.
|
