آی سی رابط گرافیکی

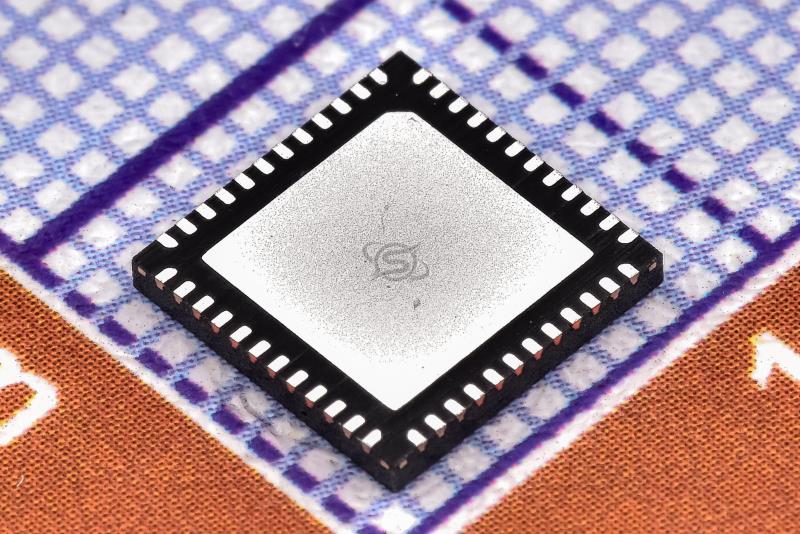

FT801Q-R
The FT801 is an easy to use graphic controller targeted for embedded applications to generate high-quality Human Machine Interfaces (HMIs).
کیفیت: ORIGINAL(distributor) پکیج: VQFN-48
قیمت تک فروشی 14,514,096 ریال
قیمت عمده 13,910,592 ریال (10 به بالا)
قیمت ویژه 13,632,980 ریال (100 به بالا)
قیمت فوق العاده13,494,174 ریال (1000 به بالا)
 قیمت تک فروشی 20.601 تتر با تخفیف
115.2110.4108.19107.09
|
توضیحات
با تکيه بر موفقيت نسل اول کنترلرهاي صفحه نمايش لمسي FT80x با تکنولوژي Embedded Video Engine (EVE)، اين سري در حال حاضر گسترش يافته است تا شامل چهار دستگاه کنترل کننده گرافيک ديگري باشد که قابليت هاي پيشرفته و پيشرفته اي را ارائه مي دهند .
تراشه FT801 يک درايور نمايشگر گرافيکي TFT مي باشد که با استفاده از آن به راحتي مي توان LCDهاي تا رزولوشن 500*500را توسط انواع ميکروکنترلرهاي داراي ارتباط SPI و I2C راه اندازي کرد.
FT801 تمام سخت افزار مورد نياز جهت راه اندازي نمايشگرهاي TFT را دارا مي باشد. فقط کافيست LCD خود را انتخاب کرده و آن را به برد متصل کنيد و سپس با استفاده از خانواده هاي مختلف ميکروکنترلرها اقدام به راه اندازي نمايشگر کنيد.
دقت کنيد با استفاده از اين برد شما به راحتي مي توانيد يک HMI حرفه اي را طراحي کنيد.
Description
The FT801 is an easy to use graphic
controller targeted for embedded
applications to generate high-quality
Human Machine Interfaces (HMIs).
It has the following features:
FT801 functionality includes graphic
controller, audio processing, and capacitive
touch controller interface.
Compatibility mode allows display code to be
run on FT801 or FT800. Extended mode
enables multi-touch capabilities for FT801.
Embedded Video Engine (EVE) with widget
support can offload the system MPU and
provide a variety of graphic features
Built-in graphics operations allow users with
little expertise to create high-quality display
Support capacitive touch screen with up to 5
touches detection
Hardware engine can recognize touch tags
and track touch movement. It provides
notification for up to 255 touch tags.
Enhanced sketch processing
Programmable interrupt controller provides
interrupts to host MPU/MCU
Built-in 12MHz crystal oscillator with PLL
providing 48MHz or 36MHz system clock
Clock switch command for internal or
external clock source. External 12MHz
crystal or clock input can be used for higher
accuracy.
Video RGB parallel output (default RGB data
width of 6-6-6) with 2 bit dithering;
configurable to support resolution up to
512x512 and R/G/B data width of 1 to 6
Programmable timing to adjust HSYNC and
VSYNC timing, enabling interface to
numerous displays
Support for LCD display in WQVGA
(480x272) and QVGA (320x240) formats
with data enable (DE) support mode and
VSYNC/HSYNC mode
The FT801 calculates for 8-bit colour despite
only providing pins for 6-bit (RGB-6,6,6);
this improves the half tone appearance
Display enable control output to LCD panel
Mono audio channel output with PWM output
Built-in sound synthesizer
Audio wave playback for mono 8-bit linear
PCM, 4-bit ADPCM and µ-Law coding format
at sampling frequency from 8kHz to 48kHz.
Built-in digital filter reduces the system
design complexity of external filtering
PWM output for backlight dimming control
for LED
Low power consumption for portable
application, 24mA active (typical) and 250
uA sleep (typical)
No frame buffer RAM required
Advanced object oriented architecture
enables low cost MPU/MCU as system host
using I2C and SPI interfaces
Power mode control allows chip to be put in
power down, sleep and standby states
Supports host interface I/O voltage from
1.8V to 3.3V
Standard serial interface to host MPU/MCU
with SPI up to 30MHz or I²C clocking up to
3.4MHz
Internal voltage regulator supplies 1.2V to
the digital core
-40°C to 85°C extended operating
temperature range
Available in a compact Pb-free, VQFN-48,
7mm X 7mm X 0.9mm package, RoHS
compliant
|
