مقاومت نوری
22MM LDR

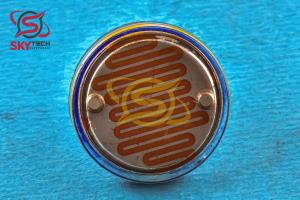

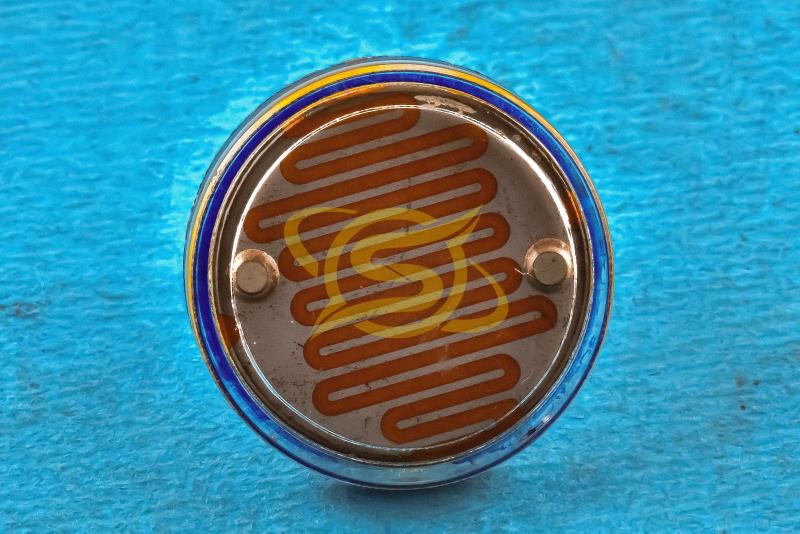

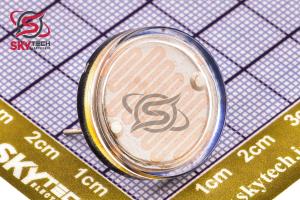

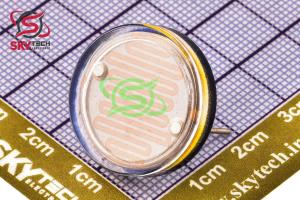

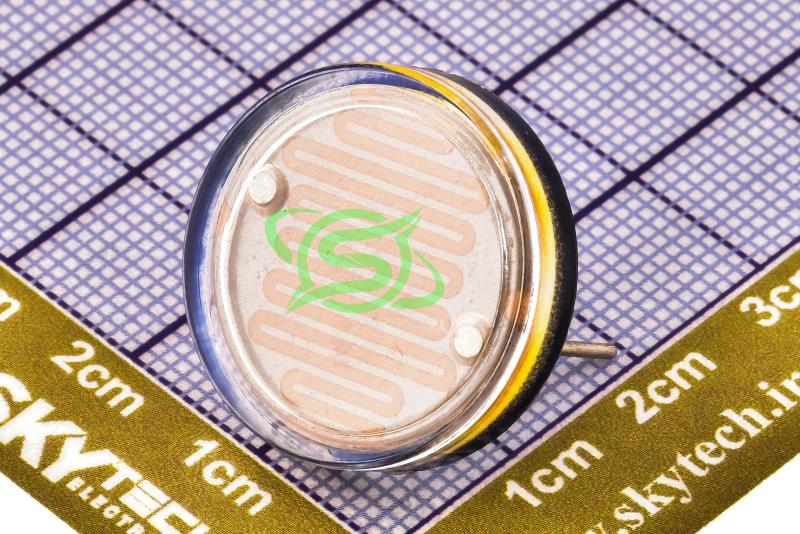

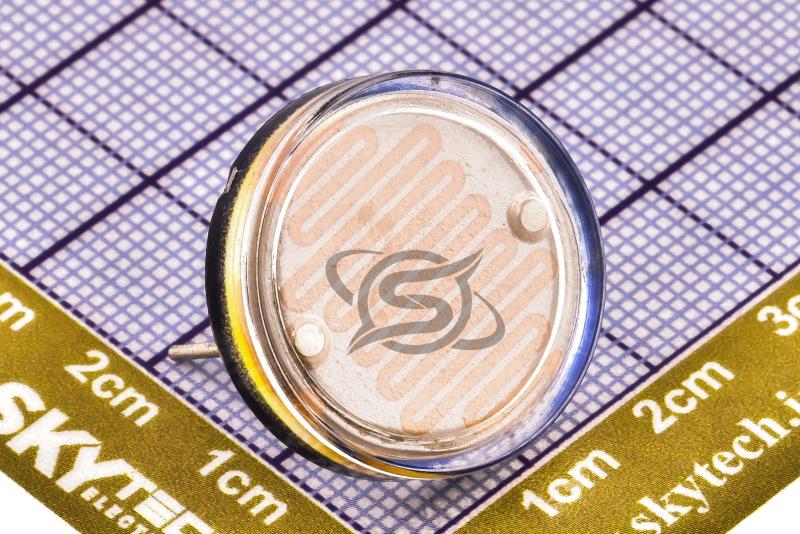

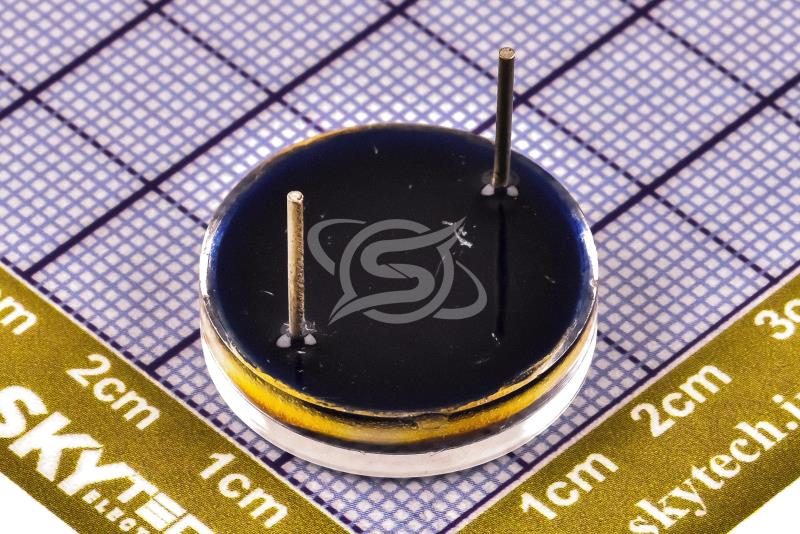

LDR Photo Resistor 22mm
کیفیت: Refurbished پکیج: TH-2
قیمت تک فروشی 275,527 ریال
قیمت عمده 265,392 ریال (10 به بالا)
قیمت ویژه 261,338 ریال (100 به بالا)
قیمت فوق العاده259,311 ریال (1000 به بالا)
 قیمت تک فروشی 0.298 تتر با تخفیف
1.261.21.181.16
|
توضیحات
LDR (مقاومت وابسته به نور) يک قطعه الکترونيکي است که مقاومت الکتريکي آن با توجه به شدت نور تابيده شده تغيير ميکند. به عبارت ديگر، LDR يک حسگر نوري است که نور را به تغيير مقاومت الکتريکي تبديل ميکند.
عملکرد LDR: LDR ها از مواد نيمه رسانا ساخته شدهاند که در تاريکي مقاومت بالايي دارند. وقتي نور به LDR ميتابد، انرژي فوتونها باعث ايجاد جفت الکترون-حفره در ماده نيمه رسانا ميشود. اين جفتهاي الکترون-حفره باعث افزايش رسانايي ماده و در نتيجه کاهش مقاومت الکتريکي LDR ميشوند. هرچه شدت نور بيشتر باشد، مقاومت LDR کمتر ميشود و هرچه شدت نور کمتر باشد، مقاومت LDR بيشتر ميشود.
ويژگيهاي LDR 22mm: عدد 22mm به قطر سطح حساس به نور اين قطعه اشاره دارد. اندازه هاي ديگر شامل 5mm، 8mm، 12mm، و 25mm هستند. مقاومت در تاريکي: مقدار مقاومت LDR در تاريکي بسيار بالا است (معمولاً چند مگا اهم). مقاومت در روشنايي: مقدار مقاومت LDR در روشنايي به شدت نور بستگي دارد و ميتواند از چند صد اهم تا چند کيلو اهم متغير باشد. پاسخ طيفي: LDR ها به طيف وسيعي از نور مرئي حساس هستند. زمان پاسخ: LDR ها زمان پاسخ نسبتاً کندي دارند، به اين معني که تغيير مقاومت آنها با تغيير شدت نور کمي زمان ميبرد.
کاربردهاي LDR: روشنايي خودکار: LDR ها در سيستمهاي روشنايي خودکار براي روشن و خاموش کردن چراغها بر اساس شدت نور محيط استفاده ميشوند. سيستمهاي هشدار: LDR ها در سيستمهاي هشدار براي تشخيص تغييرات نور و فعال کردن هشدار استفاده ميشوند. دوربين ها: در بعضي از دوربين ها براي تنظيم نور استفاده ميشود. اسباب بازي ها: در اسباب بازي هاي الکترونيکي که به نور حساس هستند. لوکس متر ها: دستگاه هاي نور سنج
Description
LDR (Light Dependent Resistor) is an electronic component whose electrical resistance changes according to the intensity of the light it shines on. In other words, LDR is a light sensor that converts light into a change in electrical resistance.
Function of LDR: LDRs are made of semiconductor materials that have a high resistance in the dark. When light shines on the LDR, the energy of the photons causes electron-hole pairs to be created in the semiconductor material. These electron-hole pairs increase the conductivity of the material and thus reduce the electrical resistance of the LDR. The higher the light intensity, the lower the resistance of the LDR, and the lower the light intensity, the higher the resistance of the LDR.
Features of 22mm LDR: The number 22mm refers to the diameter of the light-sensitive surface of this component. Other sizes include 5mm, 8mm, 12mm, and 25mm. Resistance in the dark: The resistance of an LDR in the dark is very high (usually a few megaohms). Resistance in the light: The resistance of an LDR in the light depends on the intensity of the light and can range from a few hundred ohms to a few kiloohms. Spectral response: LDRs are sensitive to a wide range of visible light. Response time: LDRs have a relatively slow response time, meaning that their resistance changes with changing light intensity. LDR applications: Automatic lighting: LDRs are used in automatic lighting systems to turn lights on and off based on ambient light intensity. Alarm systems: LDRs are used in alarm systems to detect changes in light and activate alarms. Cameras: Used in some cameras to adjust the light. Toys: In electronic toys that are sensitive to light. Lux meters: Light measuring devices
|
