پتانسیومتر

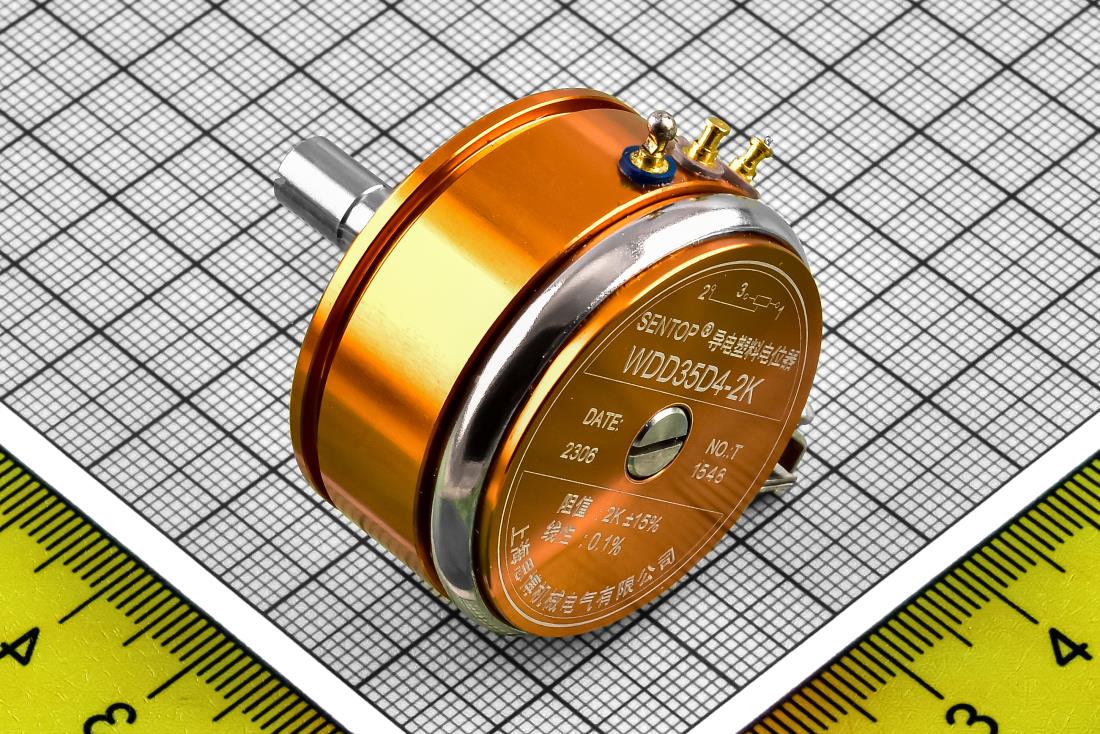

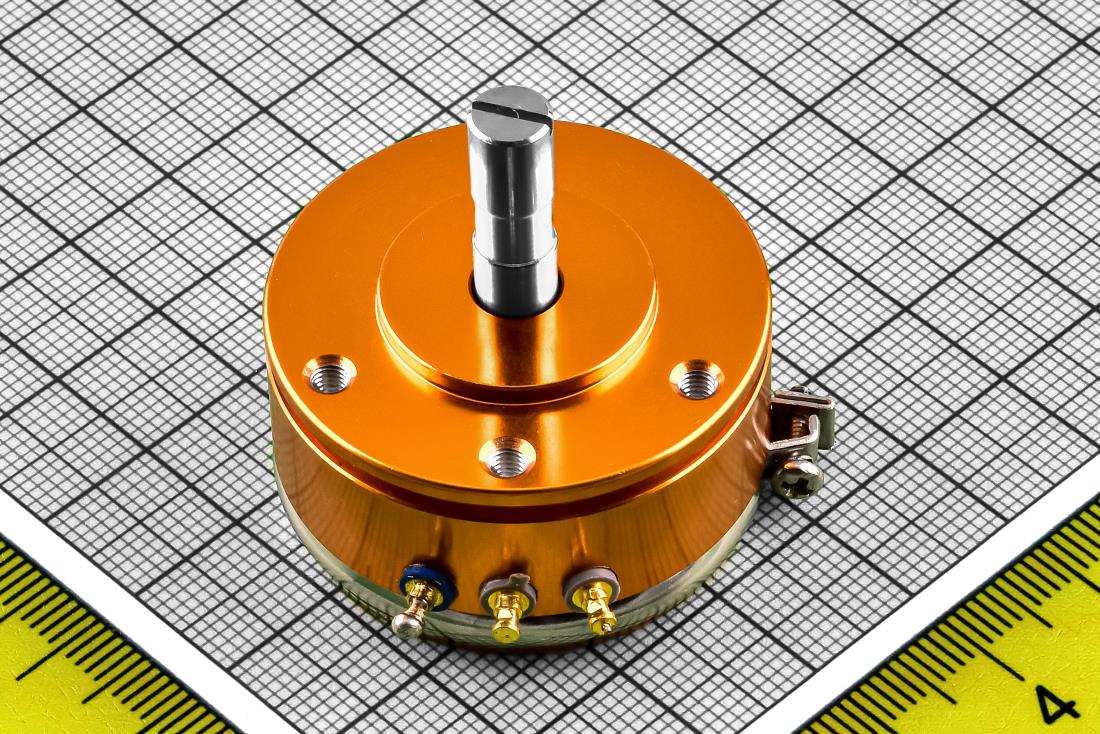

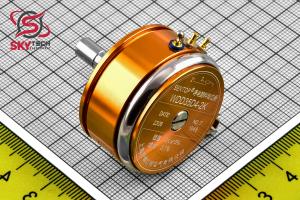

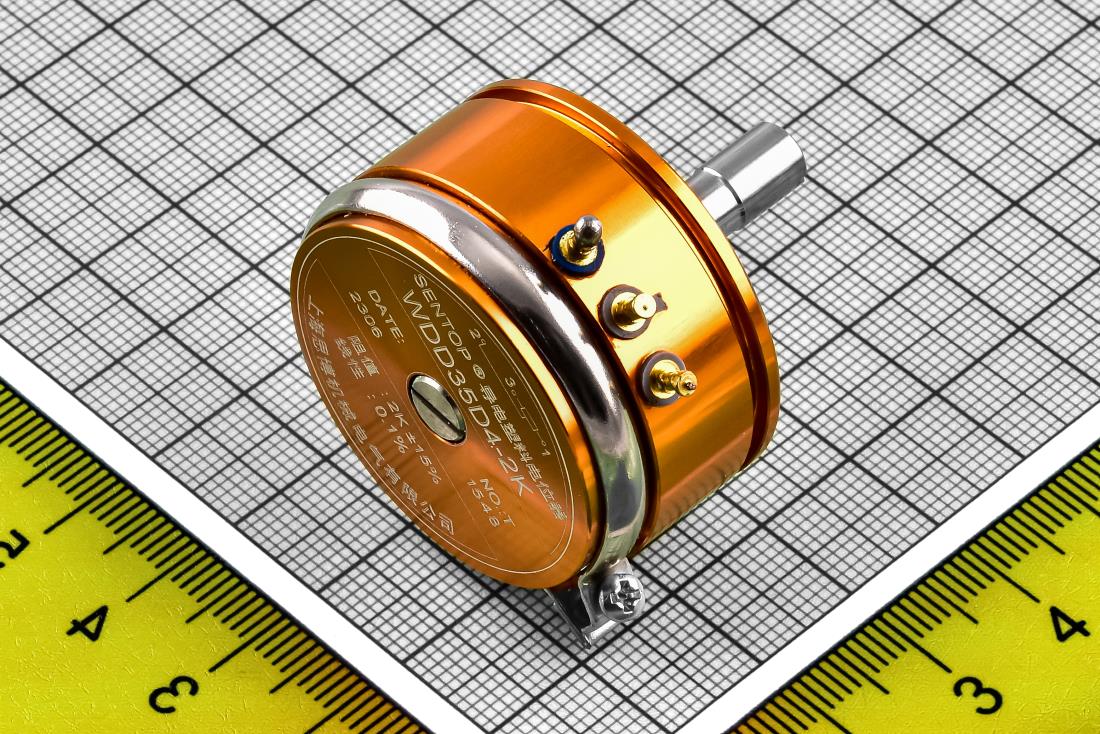

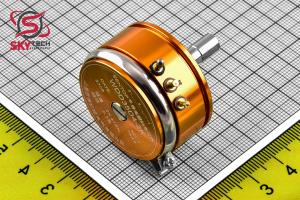

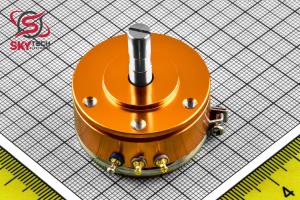

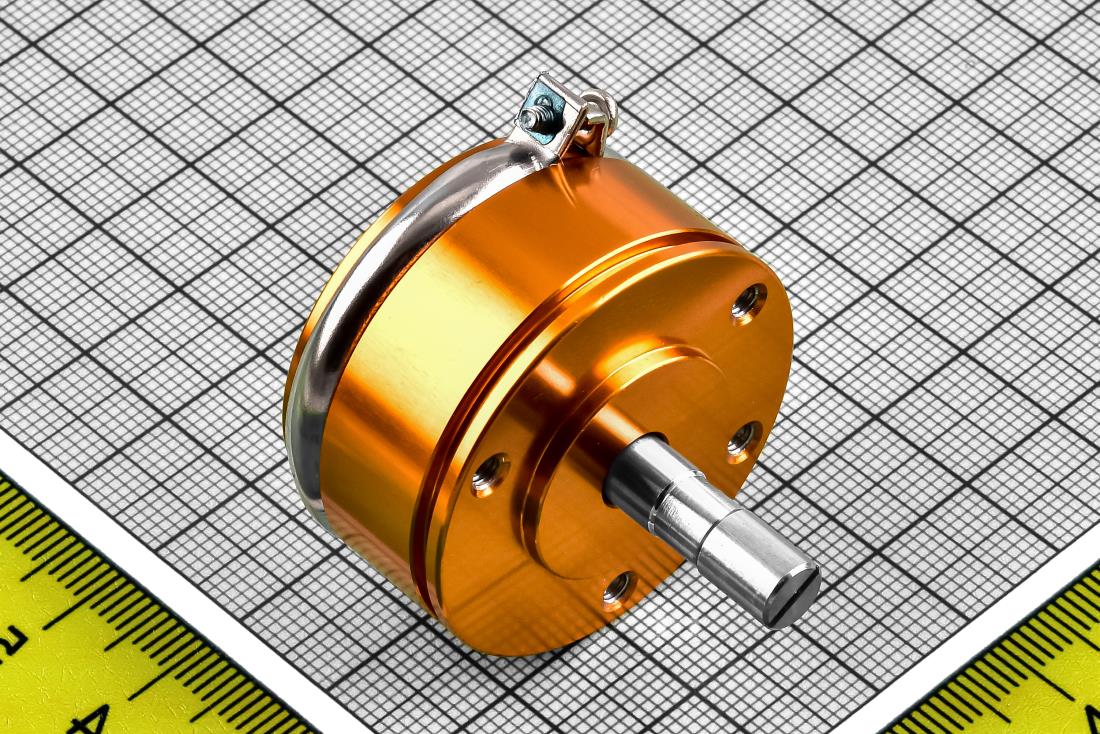

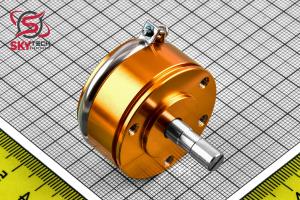

WDD35D4-2K
conductive plastic potentiometer that is 19mm long and has a short axis angle sensor
کیفیت: ORIGINAL(distributor) پکیج: MODULE
قیمت تک فروشی 7,132,125 ریال
قیمت عمده 6,824,125 ریال (10 به بالا)
قیمت ویژه 6,700,925 ریال (100 به بالا)
قیمت فوق العاده6,639,325 ریال (1000 به بالا)
![SKYTECH](bootstrap/img/Icon/tether.png) قیمت تک فروشی 10.5 تتر با تخفیف
57.755553.953.35
|
توضیحات
پتانسيومتر WDD35D4-2K يک دستگاه اندازهگيري دقيق و اقتصادي است که از پلاستيک هادي ساخته شده و به صورت تکدور طراحي گرديده است. با قطر بدنه ?? ميليمتر و شافت استاندارد ? ميليمتر، اين پتانسيومتر در مقاومتهاي ?، ?، ?، و ?? کيلو اهم موجود است. زاويه مکانيکي آن ??? درجه و گشتاور عملياتي آن کمتر از ? ميلينيوتن.متر است. عمر مفيد آن ?? ميليون دور و دماي عملياتي آن از -?? تا +??? درجه سانتيگراد متغير است. بدنه از آلياژ آلومينيوم آندايز شده و شافت از فولاد ضد زنگ ساخته شده است. وايپر فلزي چند انگشتي با دقت بالا، دقت خطي مستقل ±?.?%، توان مصرفي ? وات، مقاومت عايق بيش از ???? مگااهم، مقاومت ديالکتريک ??? ولت جريان متناوب، صافي خروجي کمتر از ?.?% و ضريب دمايي مقاومت ±??? پيپيام درجه سانتيگراد از ويژگيهاي برجسته آن هستند. همچنين، اين پتانسيومتر داراي توقفگر است.
Description
Potentiometer WDD35D4-2K is an accurate and economical measuring device made of conductive plastic and designed as a single round. With a body diameter of 35 mm and a standard shaft of 6 mm, this potentiometer is available in resistances of 1, 2, 5, and 10 kOhm. Its mechanical angle is 360 degrees and its operating torque is less than 1 milliN.m. Its useful life is 20 million rounds and its operating temperature ranges from -55 to +125 degrees Celsius. The body is made of anodized aluminum alloy and the shaft is made of stainless steel. Multi-finger metal wiper with high accuracy, independent linear accuracy ±0.1%, power consumption 2W, insulation resistance more than 1000 megaohm, dielectric resistance 500V alternating current, output smoothness less than 0.1% and temperature coefficient of resistance ±400 PPM °C is one of its prominent features. Also, this potentiometer has a stop.
|
