تراشه شارژ باتری

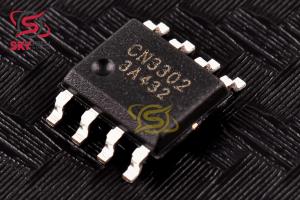

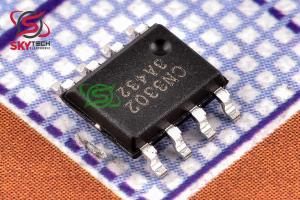

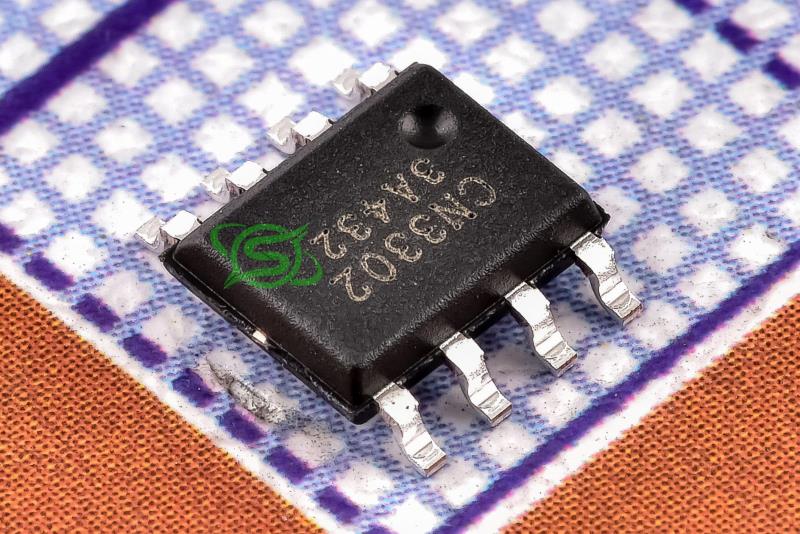

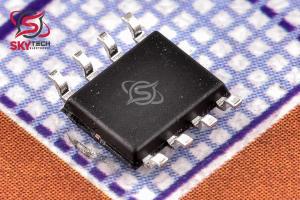

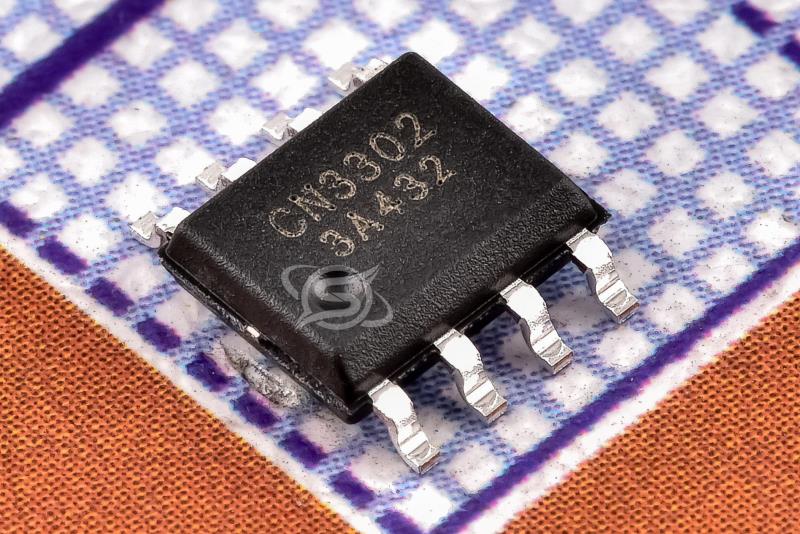

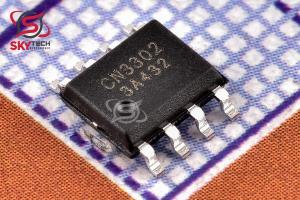

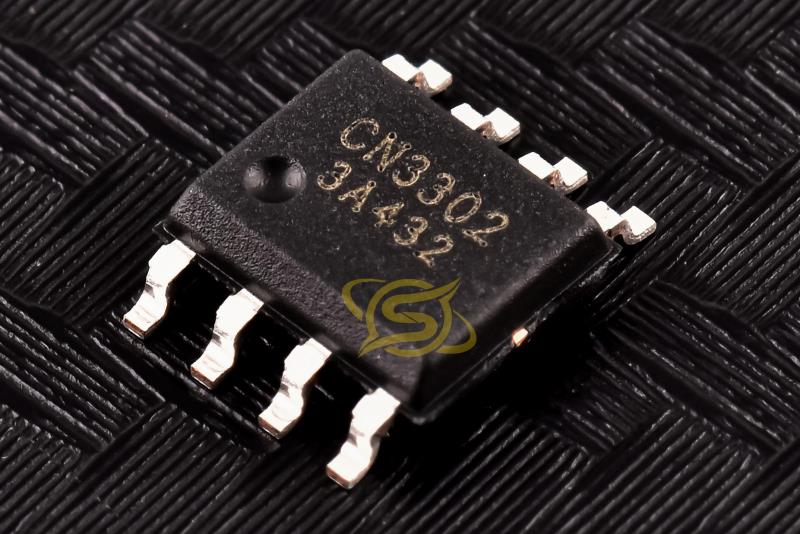

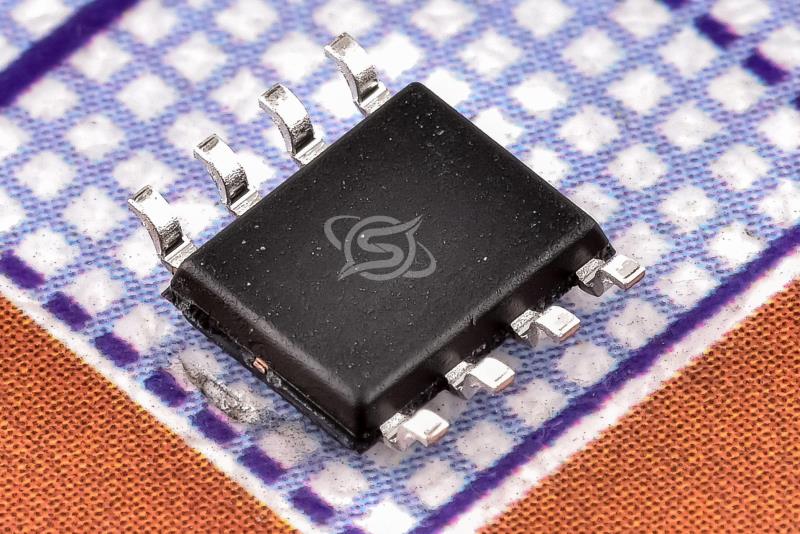

CN3302
PFM Boost Dual-Cell Li-Ion Battery Charge Control IC
کیفیت: ORIGINAL(distributor) پکیج: SOP-8
قیمت تک فروشی 116,004 ریال
قیمت عمده 110,670 ریال (10 به بالا)
قیمت ویژه 108,536 ریال (100 به بالا)
قیمت فوق العاده107,470 ریال (1000 به بالا)
 قیمت تک فروشی 0.118 تتر با تخفیف
0.630.60.590.58
|
|
|
نوع محصول |
Battery Charge Control IC |
|
حداکثر دماي کاري |
85 سانتيگراد |
|
حداقل دماي کاري |
-40 سانتيگراد |
|
|
|
شرکت توليد کننده |
ShangHai Consonance |
|
توضیحات
CN3302 يک مدار مجتمع کنترل شارژ باتري ليتيومي دو سلولي نوع تقويت کننده PFM است که از 2.75 ولت تا 6.5 ولت کار مي کند. CN3302 از جريان ثابت و ولتاژ شبه ثابت (Quasi-CVTM) براي شارژ باتري استفاده مي کند داراي اجزاي خارجي کمي است. از مزاياي آن مي توان به مدار ساده اشاره کرد. هنگامي که برق ورودي روشن مي شود، CN3302 وارد حالت شارژ مي شود، ماسفت N-channel خارج از تراشه را براي روشن شدن کنترل مي کند، و هنگامي که به حد بالايي که توسط مقاومت تشخيص جريان خارجي تعيين شده است، جريان سلف افزايش مي يابد -تراشه ماسفت کانال N خاموش مي شود و جريان سلف کاهش مي يابد. انرژي در سلف به باتري منتقل مي شود. هنگامي که جريان سلف به حد پاييني که توسط مقاومت سنجش جريان خارجي تنظيم شده است کاهش مي يابد، ماسفت کانال N خارج از تراشه دوباره روشن مي شود و غيره. هنگامي که ولتاژ پايه BAT براي اولين بار به 8.4 ولت (مقدار نوع) تنظيم شده داخلي مي رسد، CN3302 براي شارژ باتري با جريان کمتري وارد حالت شارژ ولتاژ شبه ثابت مي شود.
Description
The CN3302 is a two-cell PFM amplifier type lithium battery charge control integrated circuit that operates from 2.75V to 6.5V. The CN3302 uses constant current and quasi-constant voltage (Quasi-CVTM) to charge the battery and has few external components. One of its advantages is the simple circuit. When the input power is turned on, the CN3302 enters charging mode, controls the off-chip N-channel MOSFET to turn on, and when it reaches the upper limit set by the external current detection resistor, the inductor current increases. find - the N-channel MOSFET chip is turned off and the inductor current is reduced. The energy in the inductor is transferred to the battery. When the inductor current drops below the low limit set by the external current sense resistor, the off-chip N-channel MOSFET turns on again, and so on. When the BAT base voltage first reaches the internally set 8.4V (type value), the CN3302 enters a quasi-constant voltage charging mode to charge the battery with a lower current.
|
