تراشه مدیریت باتری

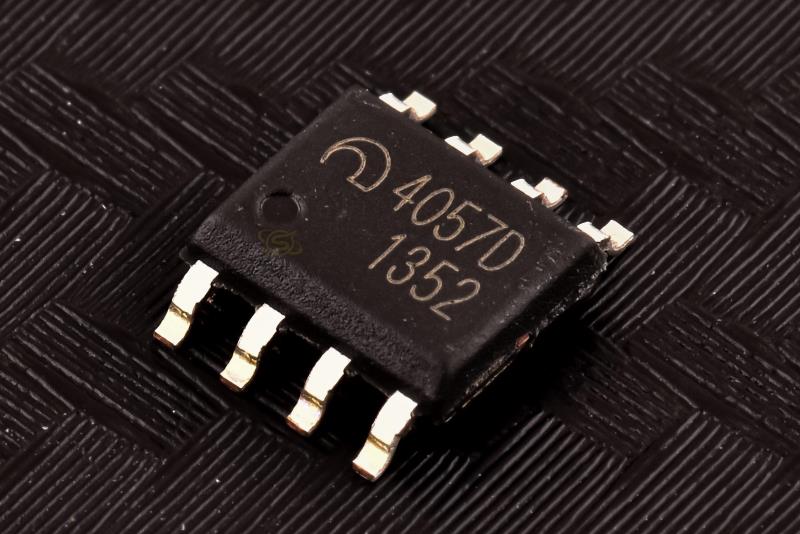

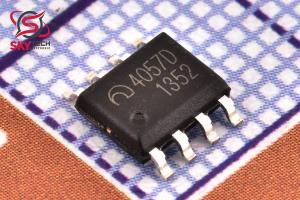

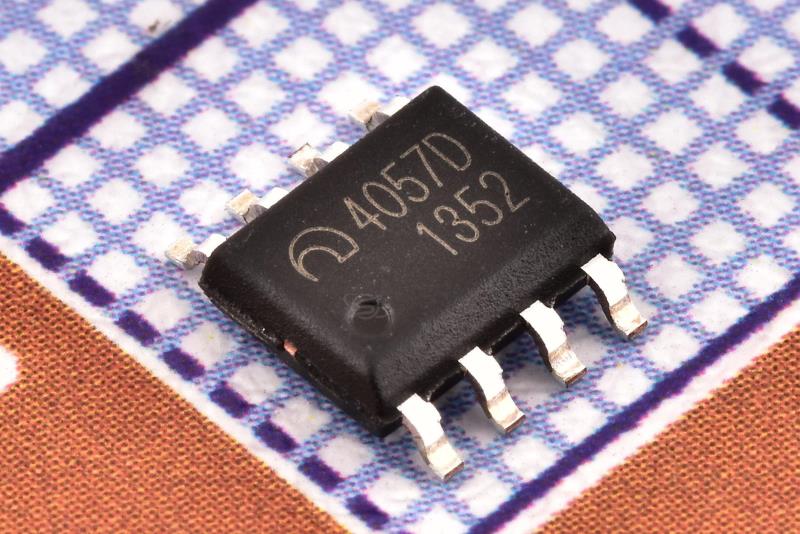

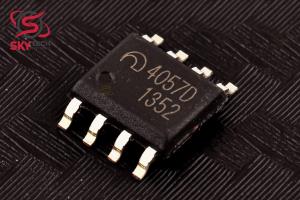

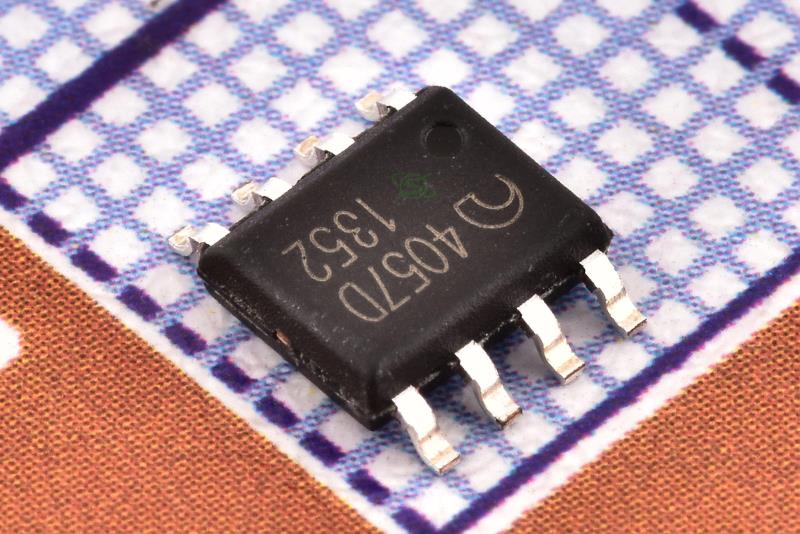

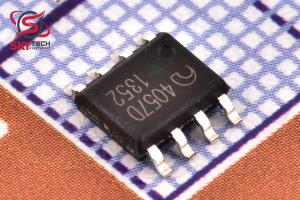

ME4057DSPG
1A Lithium ion battery charge management chip series

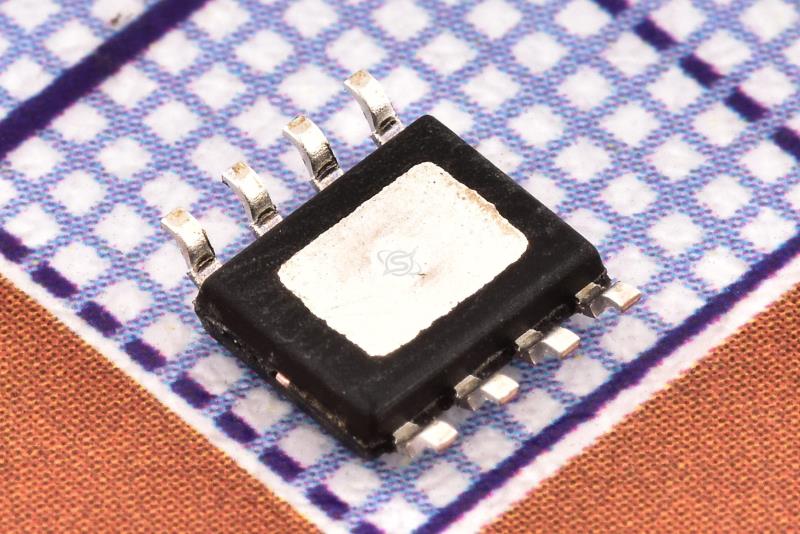

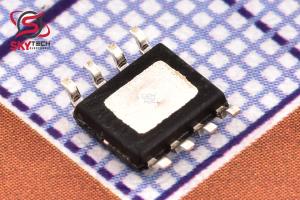

کیفیت: ORIGINAL(distributor) پکیج: ESOP-8
قیمت تک فروشی 224,690 ریال
قیمت عمده 215,800 ریال (10 به بالا)
قیمت ویژه 212,244 ریال (100 به بالا)
قیمت فوق العاده210,466 ریال (1000 به بالا)
 قیمت تک فروشی 0.23 تتر با تخفیف
1.0510.980.97
|
|
|
نوع محصول |
battery charge management |
|
حداکثر دماي کاري |
+85 سانتيگراد |
|
حداقل دماي کاري |
-40 سانتيگراد |
|
|
|
توضیحات
ME4057 يک تراشه مديريت شارژ با ولتاژ ثابت و جريان ثابت باتري ليتيوم يون تک سلولي کامل است. پکيج SOP8 با پد حرارتي و اجزاي خارجي اندک آن را براي کاربردهاي قابل حمل ايده آل کرده است. معمولاً مي توان از آن در منبع تغذيه USB يا منبع تغذيه آداپتور استفاده کرد. ME4057 براي کاربردهاي ضد جريان برگشتي به مقاومت حسگر جريان يا ديود ايزوله خارجي نياز ندارد. يک مدار بازخورد حرارتي در داخل وجود دارد که مي تواند دماي تراشه را در طول فرآيند شارژ کنترل کند. ولتاژ قطع شارژ روي 4.2V/4.34V ثابت است و جريان شارژ را مي توان توسط يک مقاومت خارجي تنظيم کرد.وقتي جريان شارژ به 1/10 جريان ثابت رسيد، ME4057 شارژ را قطع مي کند. هنگامي که ولتاژ ورودي (آداپتور يا USB) حذف شود، ME4057 وارد حالت خواب مي شود.
Description
The ME4057 is a complete single-cell Li-ion battery constant voltage and constant current charge management chip. The SOP8 package with thermal pad and few external components makes it ideal for portable applications. It can usually be used on USB power supply or adapter power supply. The ME4057 does not require a current sense resistor or external isolation diode for anti-reverse current applications. There is a thermal feedback circuit inside that can control the temperature of the chip during the charging process. The charging cut-off voltage is fixed at 4.2V/4.34V, and the charging current can be adjusted by an external resistor. When the charging current reaches 1/10 of the constant current, the ME4057 stops charging. When the input voltage (adapter or USB) is removed, the ME4057 enters sleep mode.
|
