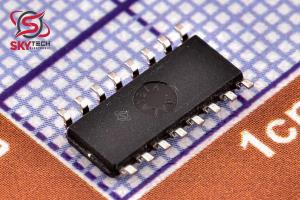

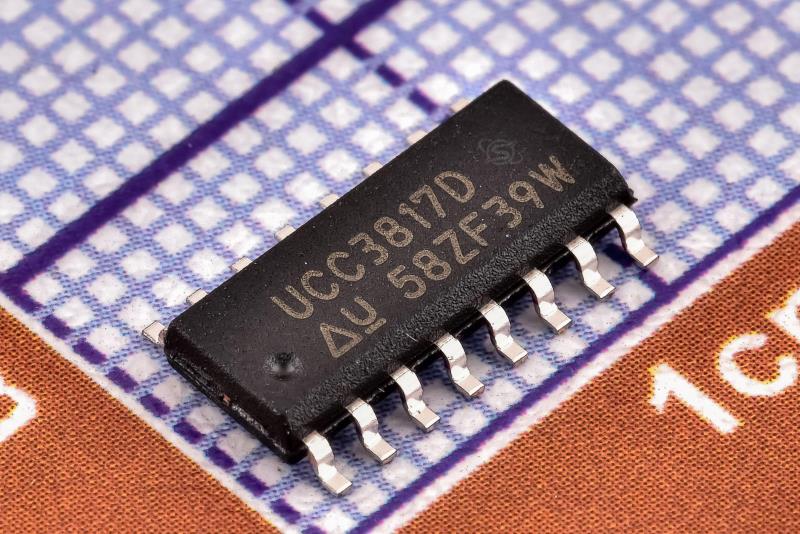

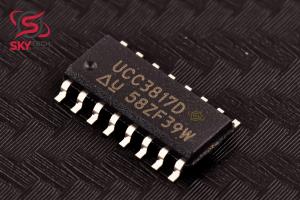

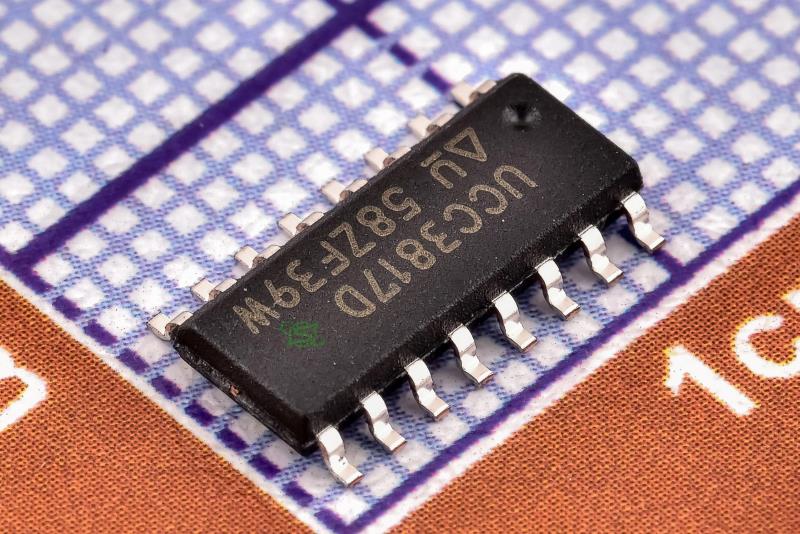

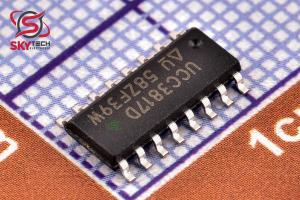

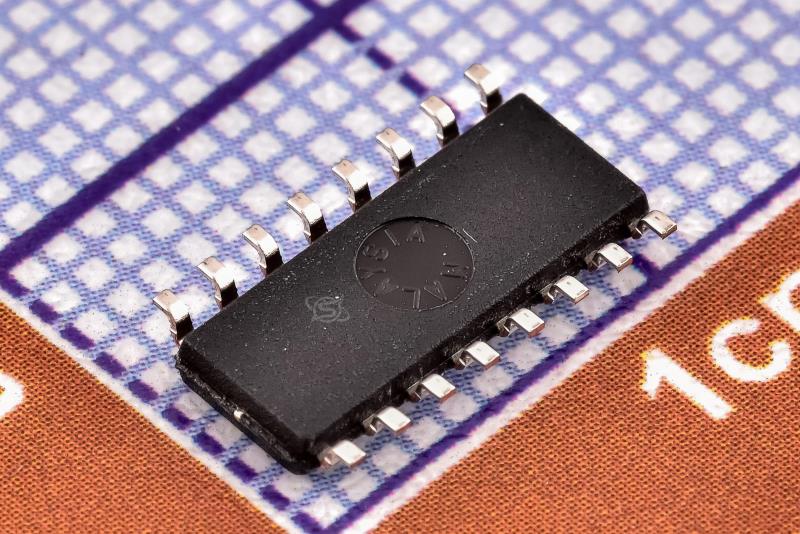

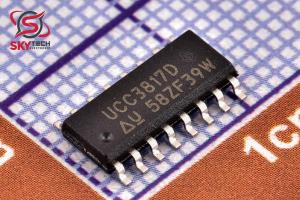

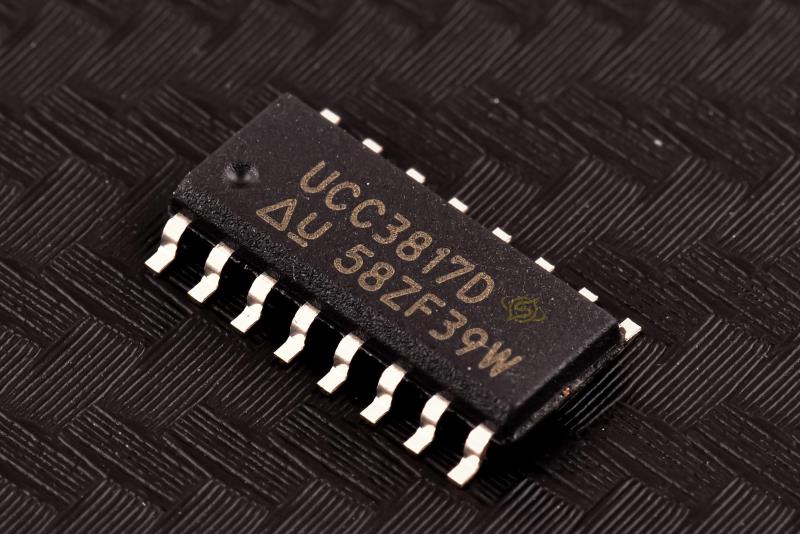

کنترلر PFC
UCC3817D
Power Factor Correction IC
کیفیت: ORIGINAL(distributor) پکیج: SOP-16
قیمت تک فروشی 1,619,000 ریال
قیمت عمده 1,542,990 ریال (10 به بالا)
قیمت ویژه 1,512,586 ریال (100 به بالا)
قیمت فوق العاده1,497,384 ریال (1000 به بالا)
 قیمت تک فروشی 1.72 تتر با تخفیف
9.4598.828.73
|
|
|
نوع محصول |
Power Factor Correction - PFC |
|
حداکثر دماي کاري |
70 سانتيگراد |
|
حداقل دماي کاري |
0 سانتيگراد |
|
شرکت توليد کننده |
Texas Instruments |
|
توضیحات
خانواده UCCx817 و UCCx818 تمام عملکردهاي لازم براي پيش تنظيم کننده هاي اصلاح شده با ضريب توان فعال را فراهم مي کند. کنترلر با شکل دادن شکل موج جريان خط ورودي AC به ضريب توان نزديک به واحد مي رسد تا مطابق با ولتاژ خط ورودي AC باشد. کنترل حالت متوسط ??جريان، جريان خط سينوسي با اعوجاج کم را حفظ مي کند. UCCx817 و UCCx818 که در فرآيند BiCMOS تگزاس اينسترومنت طراحي شدهاند، ويژگيهاي جديدي مانند جريان راهاندازي کمتر، اتلاف توان کمتر، حفاظت از اضافه ولتاژ، مدار تشخيص UVLO شنت، تکنيک مدولاسيون لبهاي براي کاهش جريان موجي در خازن حجيم را ارائه ميدهند. و تقويتکننده جريان بهبود يافته و کم افست (±2-mV) براي کاهش اعوجاج در شرايط بار سبک
Description
The UCCx817 and UCCx818 family provides all the functions necessary for active power factor-corrected preregulators. The controller achieves near-unity power factor by shaping the AC input line current waveform to correspond to that of the AC input line voltage. Average current mode control maintains stable, low distortion sinusoidal line current. Designed in Texas Instrument’s BiCMOS process, the UCCx817 and UCCx818 offers new features such as lower start-up current, lower power dissipation, overvoltage protection, a shunt UVLO detect circuitry, a leading-edge modulation technique to reduce ripple current in the bulk capacitor, and an improved, lowoffset (±2-mV) current amplifier to reduce distortion at light load conditions
|
