تراشه شارژ باتری

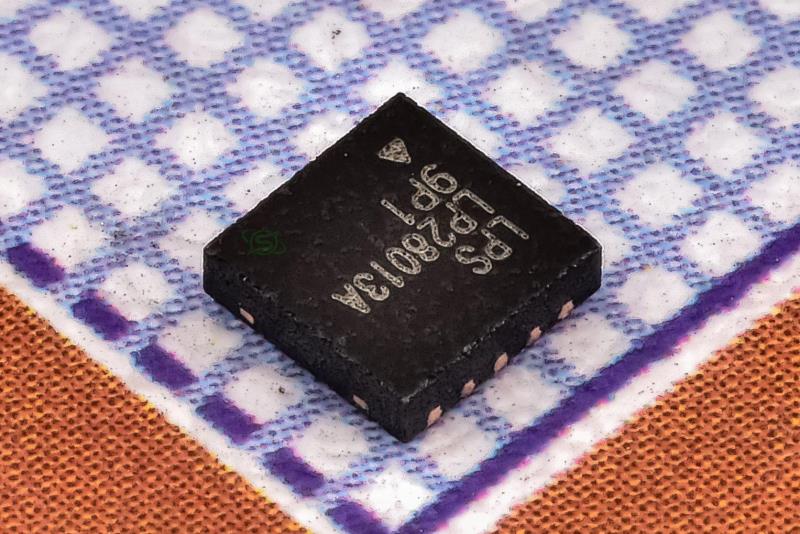

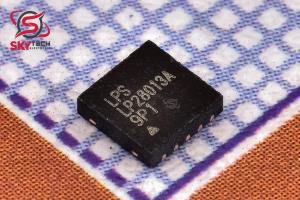

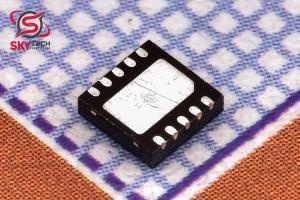

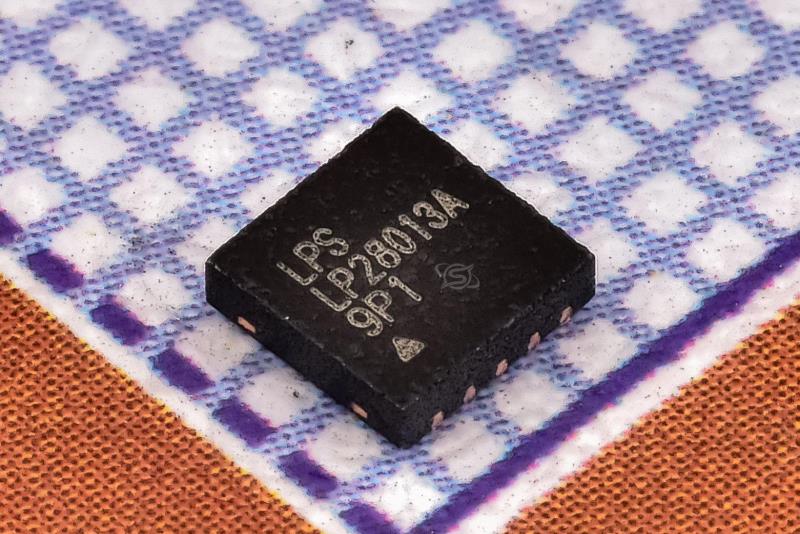

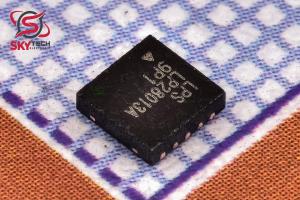

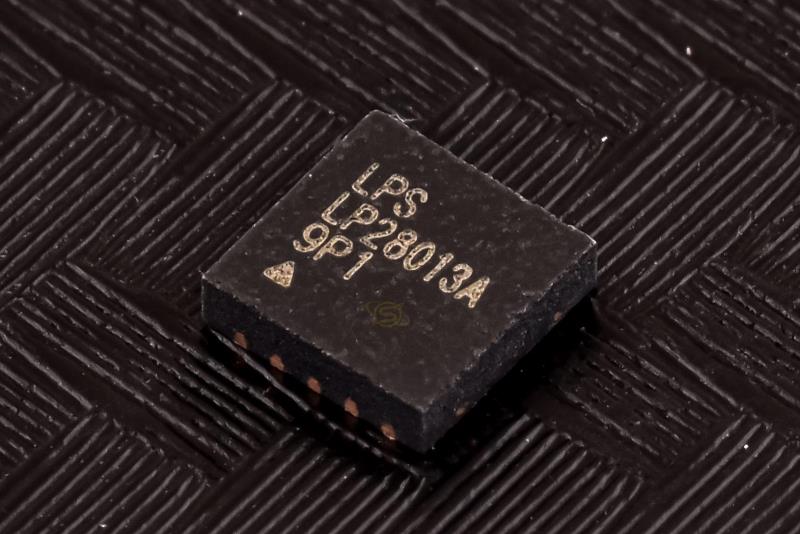

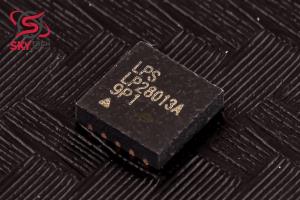

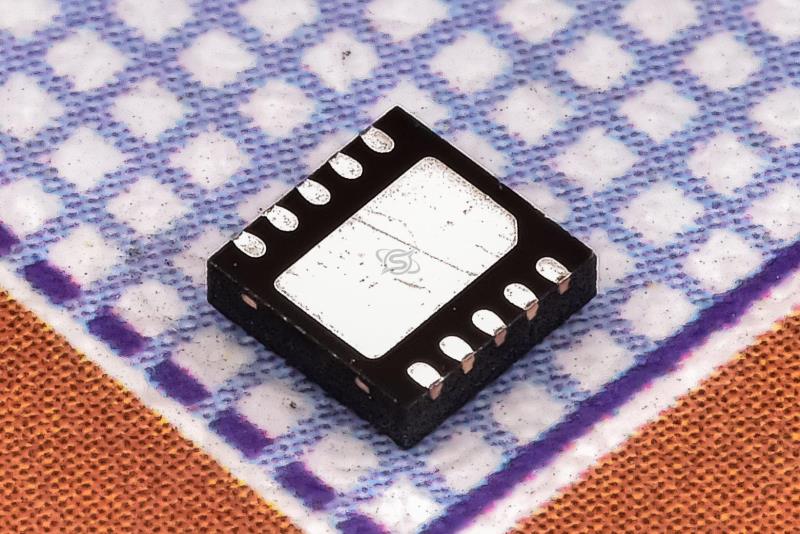

LP28013AQVF
1A Single Chip Li-Ion and Li-Polymer Charger
کیفیت: ORIGINAL(distributor) پکیج: TDFN-10
قیمت تک فروشی 803,098 ریال
قیمت عمده 765,760 ریال (10 به بالا)
قیمت ویژه 750,825 ریال (100 به بالا)
قیمت فوق العاده743,357 ریال (1000 به بالا)
 قیمت تک فروشی 0.83 تتر با تخفیف
4.123.923.843.8
|
|
|
نوع محصول |
Li-Polymer Charger |
|
حداکثر دماي کاري |
+150 سانتيگراد |
|
حداقل دماي کاري |
-55 سانتيگراد |
|
شرکت توليد کننده |
LOWPOWER |
|
توضیحات
LP28013A يک شارژر خطي کامل با جريان ثابت/ولتاژ ثابت براي باتري ليتيوم يون تک سلولي است. بسته TDFN-10 و تعداد کم اجزاي خارجي آن، LP28013A را براي برنامه هاي قابل حمل ايده آل مناسب مي کند. به هيچ مقاومت حسي خارجي نياز نيست و به دليل معماري داخلي ماسفت به ديود مسدود کننده نياز نيست. بازخورد حرارتي جريان شارژ را تنظيم مي کند تا دماي قالب را در حين کار با توان بالا يا دماي بالاي محيط محدود کند. ولتاژ شارژ روي 4.2 ولت ثابت است و جريان شارژ را مي توان به صورت خارجي با يک مقاومت برنامه ريزي کرد. ساير ويژگي ها شامل نمايشگر جريان شارژ، قفل تحت ولتاژ، شارژ مجدد خودکار و پين وضعيت براي نشان دادن پايان شارژ و وجود ولتاژ ورودي است.
Description
The LP28013A is a complete constant-current/ constant voltage linear charger for single cell lithium-ion battery. Its TDFN-10 package and low external component count make the LP28013A ideally suited for portable applications. No external sense resistor is needed, and no blocking diode is required due to the internal MOSFET architecture. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at 4.2V, and the charge current can be ISET programmed externally with a single resistor. Other features include charge current monitor, under voltage lockout, automatic recharge and a status pin to indicate charge termination and the presence of an input voltage.
|
