توضیحات

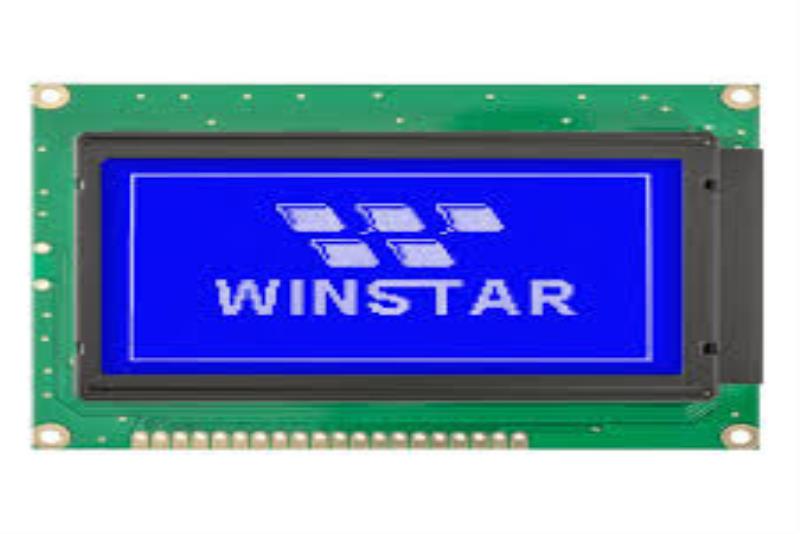

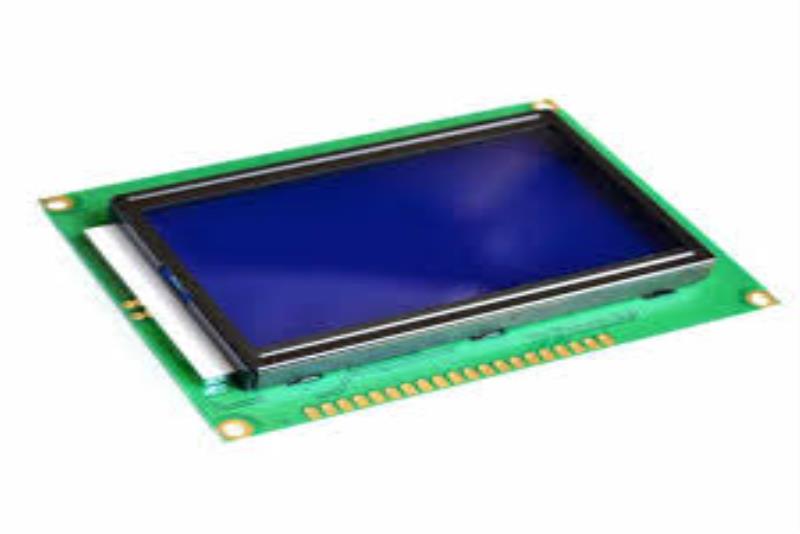

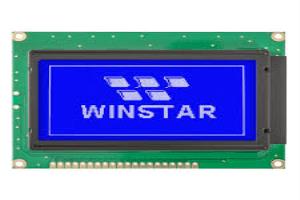

اين السيدي تک رنگ با پارت نامبرTS12864A-2 با بکلايت ابي رنگ و نوشته هاي سفيد رنگ از السيدي هاي با طول عمر بالا و صنعتي است که توانايي نمايش انواع اشکال گرافبکي و هندسي را دارا ميباشد .انواع فونت ها و زبان هاي مختلف از جمله انگليسي فارسي و ... قابل نمايش روي اين السيدي ميباشد.
اين السيدي با تمامي ميکروکنترلر ها از قبيل STM32 , AVR , PIC , STM8 , ARDUINO و... به سادگي قابل راه اندازي است.
Description
Brand:WINSTAR DISPLAY CORPORATION
(1)Avoid applying excessive shocks to the module or making any alterations or modifications to it.
(2)Don’t make extra holes on the printed circuit board, modify its shape or change the components of
LCD module.
(3)Don’t disassemble the LCM.
(4)Don’t operate it above the absolute maximum rating.
(5)Don’t drop, bend or twist LCM.
(6)Soldering: only to the I/O terminals.
(7)Storage: please storage in anti-static electricity container and clean environment.
(8) Winstar have the right to change the passive components, including R3,R6 & backlight adjust
resistors. (Resistors,capacitors and other passive components will have different appearance and
color caused by the different supplier.)
(9)Winstar have the right to change the PCB Rev. (In order to satisfy the supplying stability,
management optimization and the best product performance...etc, under the premise of not affecting
the electrical characteristics and external dimensions, Winstar have the right to modify the version.)
|
