تراشه فلیپ فلاپ

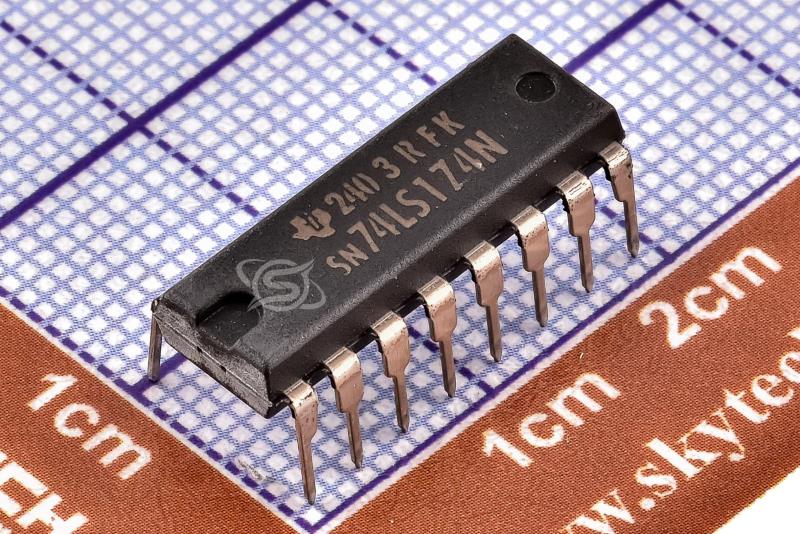

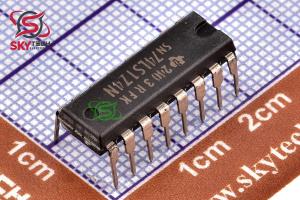

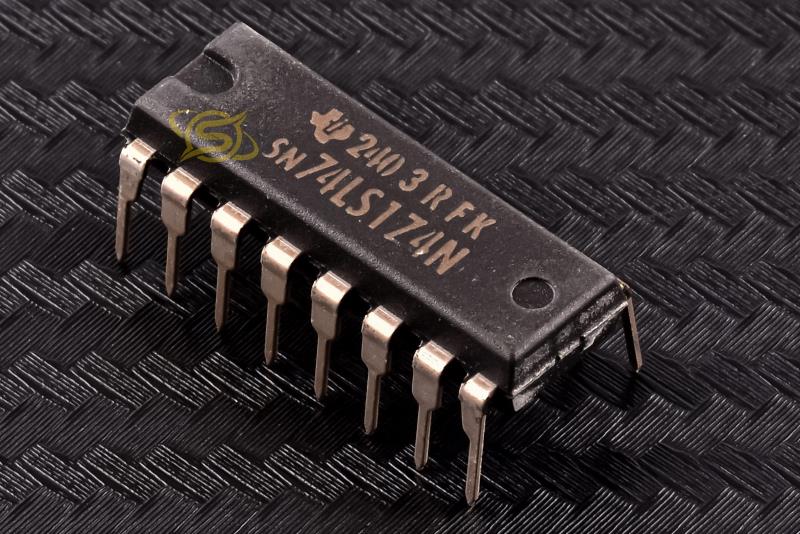

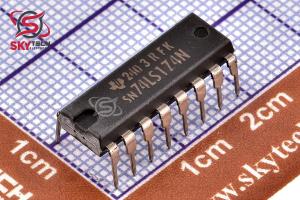

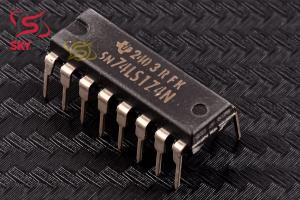

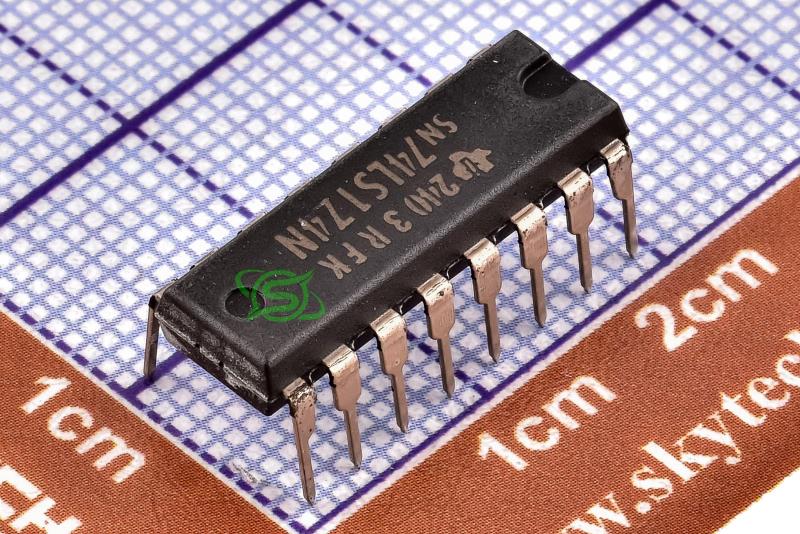

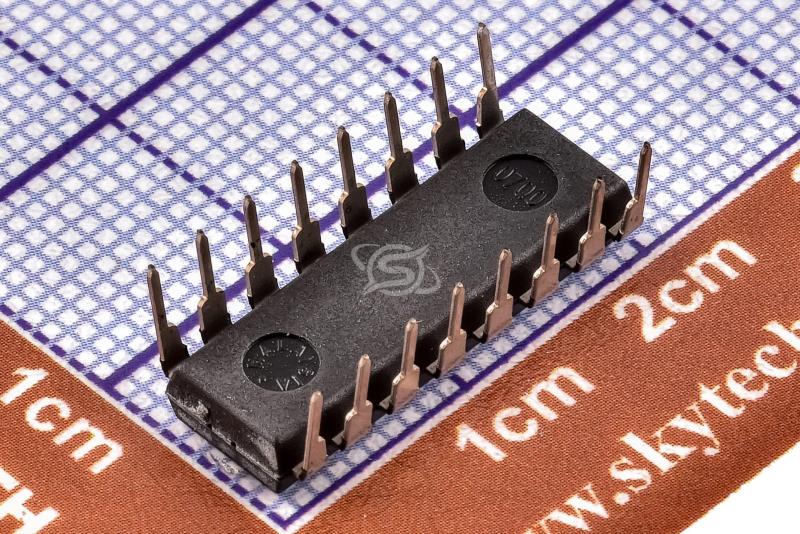

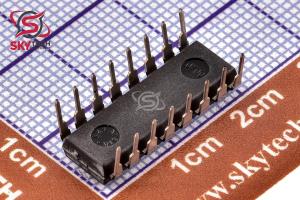

SN74LS174N
HEX/QUADRUPLE D-TYPE FLIP-FLOPS WITH CLEAR
کیفیت: ORIGINAL(distributor) پکیج: PDIP-16
قیمت تک فروشی 495,150 ریال
قیمت عمده 472,750 ریال (10 به بالا)
قیمت ویژه 463,790 ریال (100 به بالا)
قیمت فوق العاده459,310 ریال (1000 به بالا)
![SKYTECH](bootstrap/img/Icon/tether.png) قیمت تک فروشی 0.729 تتر با تخفیف
4.243.923.88
|
توضیحات
اين فليپ فلاپهاي يکپارچه با لبه مثبت از مدارهاي TTL براي پيادهسازي منطق فليپ فلاپ نوع D استفاده ميکنند. همه داراي يک ورودي واضح مستقيم هستند و "175، LS175، و S175 داراي خروجي هاي مکمل از هر فليپ فلاپ هستند. اطلاعات ورودي هاي D مطابق با الزامات زمان راه اندازي به خروجي هاي Q در لبه مثبت ساعت منتقل مي شود. پالس، راهاندازي ساعت در يک سطح ولتاژ خاص اتفاق ميافتد و مستقيماً به زمان انتقال پالس مثبت مربوط نميشود خروجي اين مدارها براي استفاده با اکثر مدارهاي TTL کاملاً سازگار هستند.
Description
‘These monolithic, positive-edge-triggered flip-flops utilize TTL circuitry to implement D-type flip-flop logic. All have a direct clear input, and the "175, LS175, and S175 feature complementary outputs from each flip- flop. Information at the D inputs meeting the setup time requirements is transferred to the Q outputs on the positive-going edge of the clock pulse, Clock triggering ‘occurs at a particular voltage level and is not directly related to the transition time of the positive-going pulse. When the clock input is at either the high or low level, ‘the D input signal has no effect at the output. ‘These circuits are fully compatible for use with most TTL circuits.
|
