آی سی سوییچینگ رزونانسی

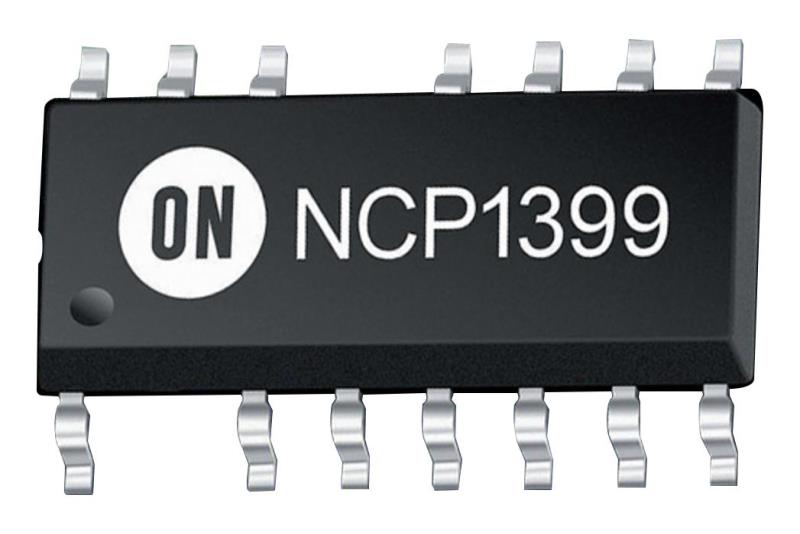

NCP1399APDR2G NCP1399AP SOP-16(14)
High Performance Current Mode Resonant Controller with Integrated HighVoltage Drivers
کیفیت: ORIGINAL(distributor) پکیج: SOIC-16-14
قیمت تک فروشی 1,279,584 ریال
قیمت عمده 1,155,226 ریال (10 به بالا)
قیمت ویژه 1,132,841 ریال (100 به بالا)
قیمت فوق العاده1,121,649 ریال (1000 به بالا)
 قیمت تک فروشی 1.758 تتر با تخفیف
9.68.648.478.38
|
توضیحات
ايسي کنترلر رزونانت با مد جريان با مدارات درايور هاي ولتاژ داخلي براي مبدل رزونانت هاي Half Bridge
از ويژگي هاي مثبت اين ايسي ميتوان به مدارات درايور گيت داخلي که با ولتاژ 600 ولت عمل ميکنند اشاره کرد.همچنين در برابر اضافه بار و اضافه جريان براي محافظت از سوييچ سايکل هاي سخت محافظت شده است.
از ديگر قابليت هاي اين ايسي ميتوان به محافظ افزايش دمايي و قابليت زمان تنظيم اتوماتيک Dead Time اشاره کرد.
**ويژگي ها :
*فرکانس عملياتي 20 تا 750 کييلوهرتز
*مد کنترل جريان
*داراي مد شات داون براي حالت بي باري و ...
Description
High Performance Current Mode Resonant Controller
with Integrated HighVoltage Drivers.
The NCP1399 is a high performance current mode controller for half
bridge resonant converters. This controller implements 600 V gate
drivers, simplifying layout and reducing external component count. The
built?in Brown?Out input function eases implementation of the
controller in all applications. In applications where a PFC front stage is
needed, the NCP1399 features a dedicated output to drive the PFC
controller. This feature together with dedicated skip mode technique
further improves light load efficiency of the whole application. The
NCP1399 provides a suite of protection features allowing safe operation
in any application. This includes: overload protection, over?current
protection to prevent hard switching cycles, brown?out detection, open
optocoupler detection, automatic dead?time adjust, overvoltage (OVP)
and overtemperature (OTP) protections
Features
• High?Frequency Operation from 20 kHz up to 750 kHz
• Current Mode Control Scheme
• Automatic Dead?time with Maximum Dead?time Clamp
• Dedicated Startup Sequence for Fast Resonant Tank Stabilization
• Skip Mode Operation for Improved Light Load Efficiency
• Off?mode Operation for Extremely Low No?load Consumption
• Latched or Auto?Recovery Overload Protection
• Latched or Auto?Recovery Output Short Circuit Protection
• Latched Input for Severe Fault Conditions, e.g. OVP or OTP
• Out of Resonance Switching Protection
• Open Feedback Loop Protection
• Precise Brown?Out Protection
• PFC Stage Operation Control According to Load Conditions
• Startup Current Source with Extremely Low Leakage Current
• Dynamic Self?Supply (DSS) Operation in Off?mode or Fault Modes
• Pin to Adjacent Pin / Open Pin Fail Safe
• These are Pb?Free Devices
Typical Applications
• Adapters and Offline Battery Chargers
• Flat Panel Display Power Converters
• Computing Power Supplies
• Industrial and Medical Power Sources
|
