توضیحات

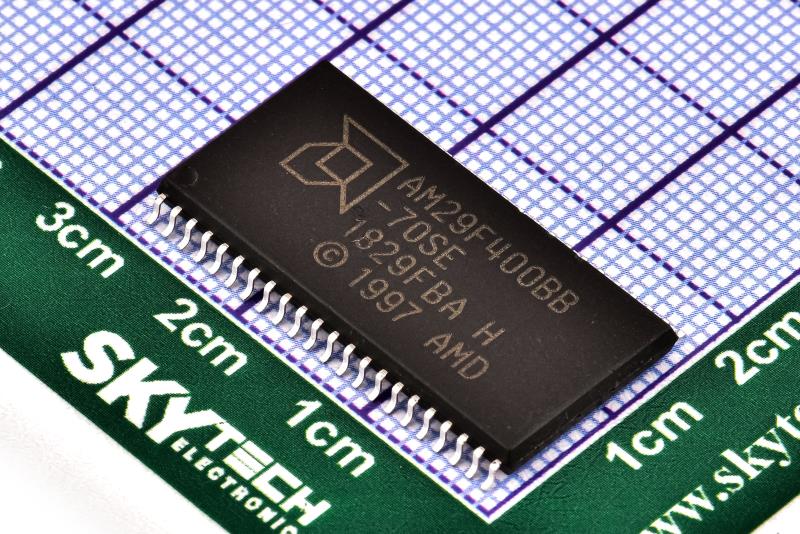

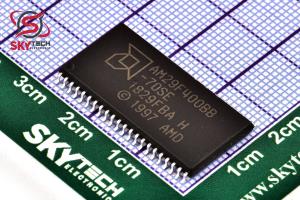

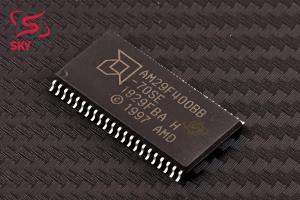

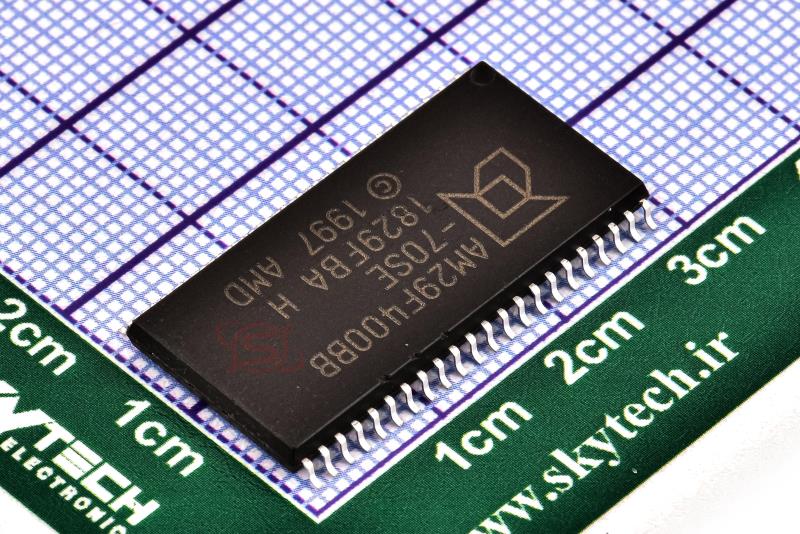

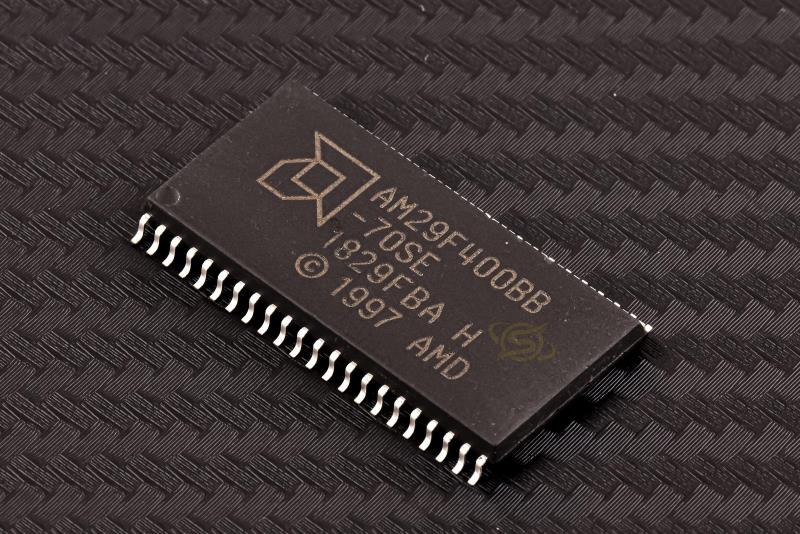

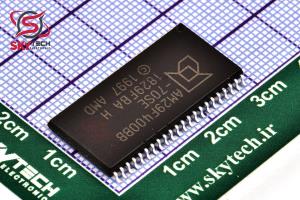

آي سي AM29F400BB
اراِه شده در پکيج TSOP-48
مقدار حافظه: 4 Megabit x 16-Bit
حافظه فلش استفاده شده در ايسيو هاي:
BOSCH ME7.4.4
زيمنس تک و بايفيول
کروز تک و بايفيول
با استفاده از اين محصول شما ميتوانيد در کارهايي که حافظه خود ميکروکنترلر براي کارتان کافي نيست از اين قطعه براي دسترسي به حافظه بيشتر استفاده کنيد.
Description
Am29F400B
4 Megabit (512 K x 8-Bit/256 K x 16-Bit)
CMOS 5.0 Volt-only Boot Sector Flash Memory
DISTINCTIVE CHARACTERISTICS
* Single power supply operation
— 5.0 volt-only operation for read, erase, and
program operations
— Minimizes system level requirements
* Manufactured on 0.32 µm process technology
— Compatible with 0.5 µm Am29F400 device
* High performance
— Access times as fast as 45 ns
* Low power consumption (typical values at
5 MHz)
— 1 µA standby mode current
— 20 mA read current (byte mode)
— 28 mA read current (word mode)
— 30 mA program/erase current
* Flexible sector architecture
— One 16 Kbyte, two 8 Kbyte, one 32 Kbyte, and
seven 64 Kbyte sectors (byte mode)
— One 8 Kword, two 4 Kword, one 16 Kword, and
seven 32 Kword sectors (word mode)
— Supports full chip erase
— Sector Protection features:
A hardware method of locking a sector to
prevent any program or erase operations within
that sector
Sectors can be locked via programming
equipment
Temporary Sector Unprotect feature allows code
changes in previously locked sectors
* Top or bottom boot block configurations available
* Embedded Algorithms
— Embedded Erase algorithm automatically
preprograms and erases the entire chip or any
combination of designated sectors
— Embedded Program algorithm automatically
writes and verifies data at specified addresses
* Minimum 1,000,000 program/erase cycles per
sector guaranteed
* 20-year data retention at 125° C
— Reliable operation for the life of the system
* Package option
— 48-pin TSOP
— 44-pin SO
— Known Good Die (KGD)
(see publication number 21258)
* Compatibility with JEDEC standards
— Pinout and software compatible with singlepower-supply Flash
— Superior inadvertent write protection
* Data# Polling and toggle bits
— Provides a software method of detecting
program or erase operation completion
* Ready/Busy# pin (RY/BY#)
— Provides a hardware method of detecting
program or erase cycle completion
* Erase Suspend/Erase Resume
— Suspends an erase operation to read data from,
or program data to, a sector that is not being
erased, then resumes the erase operation
* Hardware reset pin (RESET#)
— Hardware method to reset the device to reading
array data
|
