آی سی سوییچینگ

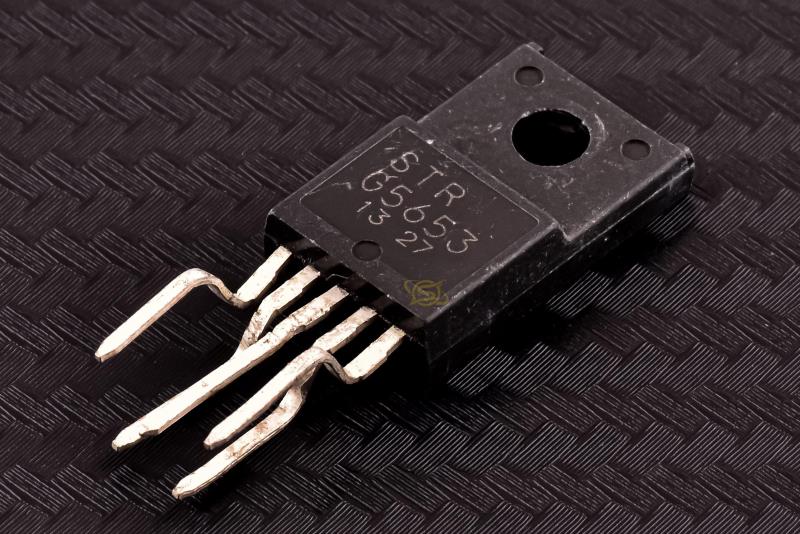

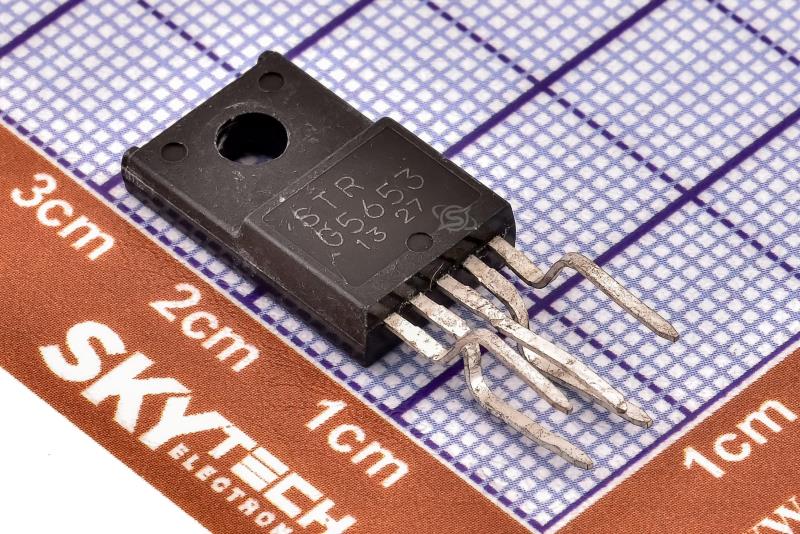

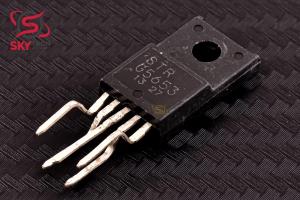

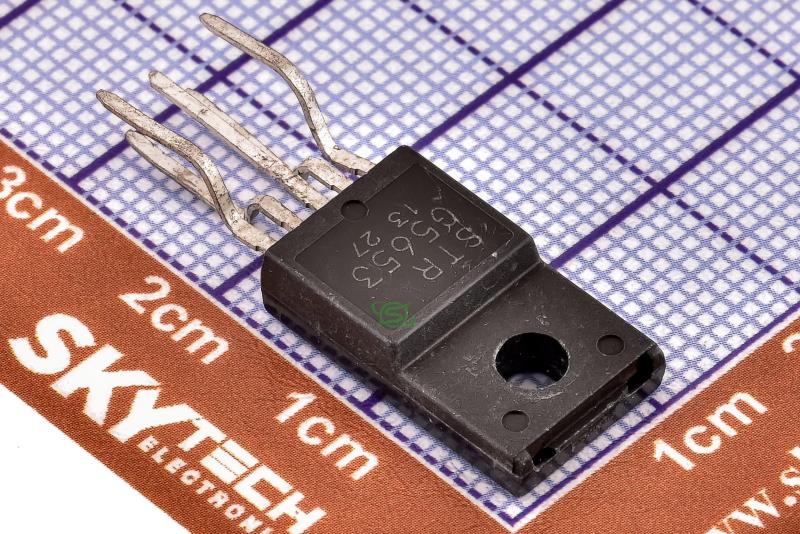

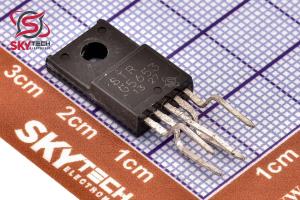

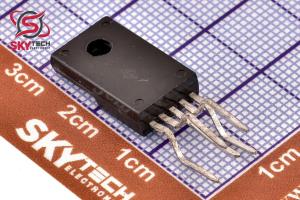

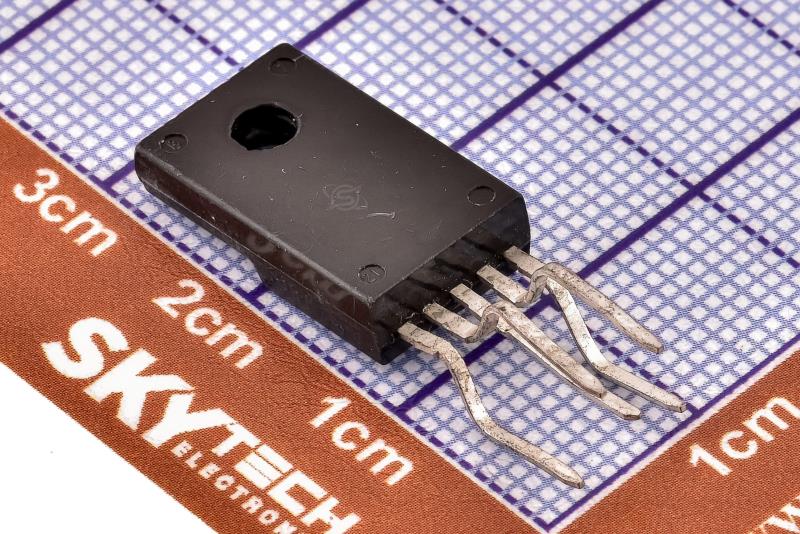

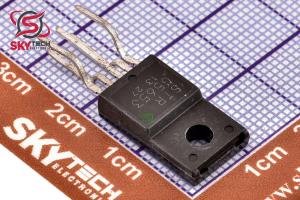

STRG5653
a hybrid IC consists from power MOSFET and a controller IC, designed for Indirect feed-back QuasiResonant (including low frequency PRC) fly-back converter type SMPS (Switching Mode Power Supply) applications.
کیفیت: ORIGINAL(distributor) پکیج: TO-220-5
قیمت تک فروشی 910,160 ریال
قیمت عمده 802,640 ریال (10 به بالا)
قیمت ویژه 787,587 ریال (100 به بالا)
قیمت فوق العاده780,061 ریال (1000 به بالا)
![SKYTECH](bootstrap/img/Icon/tether.png) قیمت تک فروشی 1.339 تتر با تخفیف
7.686.726.596.52
|
توضیحات
ايسي IRIS G5653 يک ايسي هيبرد متشکل از يک ماسفت قدرت و يک ايسي کنترلر طراحي شده براي فيدبک غير مستقيم QuasiResonant (including low frequency PRC) fly-back converter type SMPS (Switching Mode Power Supply) applications.
**ويژگي ها :
*داراي محافظ گرمايي داخلي قطعه
*داراي محافظ اضافه ولتاژ
*محافظ اضافه جريان پالس -پالس
*جريان راه اندازي اوليه پايين
*
Description
Descriptions
IRIS-G5653 is a hybrid IC consists from power MOSFET and a controller IC, designed for Indirect feed-back QuasiResonant (including low frequency PRC) fly-back converter type SMPS (Switching Mode Power Supply) applications.
This IC realizes high efficiency, low noise, downsizing and standardizing of a power supply system reducing external
components count and simplifying the circuit designs.
Features
• Oscillator is provided on the monolithic control with adopting On-ChipTrimming technology.
• Small temperature characteristics variation by adopting a comparator to
compensate for temperature on the control part.
• Low start-up circuit current (100uA max)
• Built-in Active Low-Pass Filter for stabilizing the operation in case of light
load
• Avalanche energy guaranteed MOSFET with high VDSS
• The built-in power MOSFET simplifies the surge absorption circuit
since the MOSFET guarantees the avalanche energy.
• No VDSS de-rating is required.
•Indirect feed-back by built-in error amplifier on Vin terminal
• Built-in constant voltage drive circuit
• Built-in step drive circuit
• Built-in low frequency PRC mode (?20kHz)
• Various kinds of protection functions
• Pulse-by-pulse Overcurrent Protection (OCP)
• Overvoltage Protection with latch mode (OVP)
• Thermal Shutdown with latch mode (TSD)
|
