توضیحات

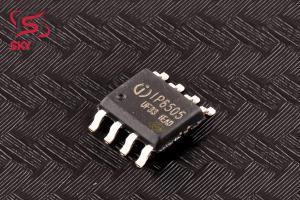

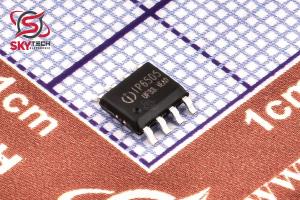

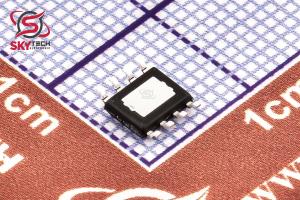

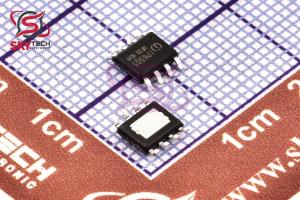

IP6505 يک مبدل باک اصلاح شده همزمان است و از 10 استاندارد خروجي شارژ سريع پشتيباني مي کند و راه حل هايي براي شارژ خودرو، آداپتور شارژ سريع و نوار برق هوشمند ارائه مي دهد. IP6505 داراي ماسفت داخلي است، محدوده ولتاژ ورودي 4.5 ولت تا 32 ولت، ولتاژ خروجي از 3 ولت تا 12 ولت است و تا 24 وات توان خروجي را تامين مي کند. پشتيباني از ولتاژ و جريان تنظيم خودکار مطابق با استاندارد شارژ سريع. ولتاژ و جريان خروجي معمولي شامل: 4V_3.6A، 5V_3.4A، 7V_3A، 9V_2.5A، 12V_2A. راندمان تبديل برق تا 97 درصد است. جبران خط ثابت داخلي IP6505، ولتاژ خروجي همراه با افزايش جريان افزايش مي يابد و افت ولتاژ ايجاد شده توسط مقاومت سيم را جبران مي کند. . IP6505 از چندين استاندارد شارژ سريع پشتيباني مي کند، پشتيباني از DP/DM تشخيص خودکار در شارژ سريع دستگاه هاي قابل دسترسي است و IP6505 ولتاژ و جريان خروجي را مطابق با استاندارد شارژ سريع به طور خودکار تنظيم مي کند. پشتيباني از استانداردهاي شارژ سريع شامل: DCP (Apple، Samsung و BC1.2)، Qualcomm QC2.0/QC3.0، MTK PE1.1/2.0، Huawei FCP&SCP، Spreadtrum SFCP
Description
IP6505 is a Synchronous-Rectified Buck Converter and support 10 fast charge output standards, providing solutions for car charger, fast charge adaptor and smart power strip. IP6505 has built-in power MOSFET, input voltage range is 4.5V to 32V, output voltage ranges from 3V to 12V, and supply up to 24W output power; support voltage and current auto adjust according to the fast charge standard. Typical output voltage and current including: 4V_3.6A, 5V_3.4A, 7V_3A, 9V_2.5A, 12V_2A. Power conversion efficiency is up to 97%. IP6505 built-in fixed line-compensation,, the output voltage will be increased along with an increased current, providing compensation on the voltage drop introduced by the wire resistance. . IP6505 support several fast charge standards, DP/DM support auto distinguish on the fast charge of the accessed devices, and IP6505 will adjust the output voltage and current according to the fast charge standard automatically. Supported fast charge standards including: DCP (Apple, Samsung and BC1.2), Qualcomm QC2.0/QC3.0, MTK PE1.1/2.0, Huawei FCP&SCP, Spreadtrum SFCP
|
