توضیحات
اين ماژول با ميکروکنترلر هاي 8051، MSP430 ، AVR، PIC ،ARM ، FPGA، STM32 و آردوينو قابل راه اندازي مي باشد. ماژول اثر انگشت از طريق پورت سريال قابل کنترل است، بنابراين شما مي توانيد از پورت سريال کامپيوترتان براي کنترل اين ماژول استفاده کنيد. اين ماژول داراي يک سنسور نوري اثر انگشت، پردازنده ي DSP سرعت بالا، الگوريتم هاي تطبيق اثر انگشت با عملکرد بالا، چيپ هاي فلش ظرفيت بالا و ترکيبي از ديگر سخت افزارها است.
Description

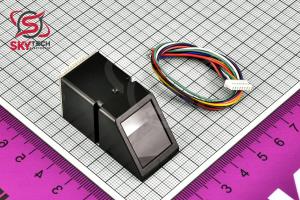

M-101 is an integrated fingerprint module and the optical path integrated fingerprint module fingerprint processing section processing, small size, low power consumption, simple interface characteristics, high reliability, high recognition speed, good adaptability wet finger, the fingerprint search high speed.
JM-101 communication interface module both USB and UART communication interface.
Specification
*Supply voltage: DC 3.3V
*supply current: Operating Current: <60mA
*peak current: <60mA
*fingerprint image input time: <1.0 seconds
*Window area: 15.3 18.2 mm
*Resolution: 500dpi
Instruction
1:Fingerprint algorithm extracted from the fingerprint image acquired characteristics, represents the fingerprint information. Fingerprint storage, comparison and search and so on through the operations to complete minutiae.
