توضیحات
سري دستگاه هاي FY2300 فانکشن ژنراتئر هايي با امکانات بالا با دو کانال ميباشد که توانايي توليد پالس ، نويز ، شکل موج تعريف شده توسط کاربر و ... همچنين قابليت اندازه گيري فرکانس دارد.
طراحي رابط کاربري دوست داشتني اين محصول باعث شده تا کارکردن با ان بسيار ساده ميباشد.اين دستگاه از يک السيدي رنگي320×240 بهره ميبرد.
فرکانس خروجي اين دستگاه تا 6 مگاهرتز قابل بهره برداري ميباشد.
Description

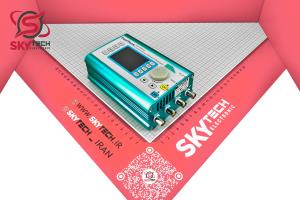

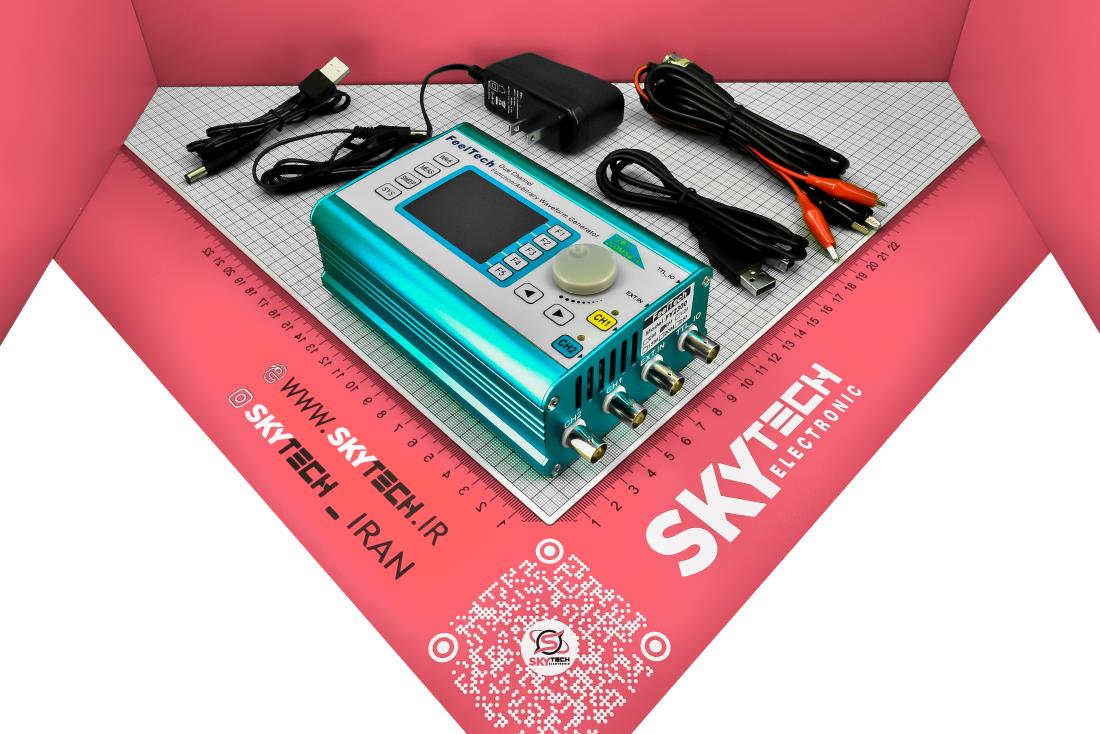

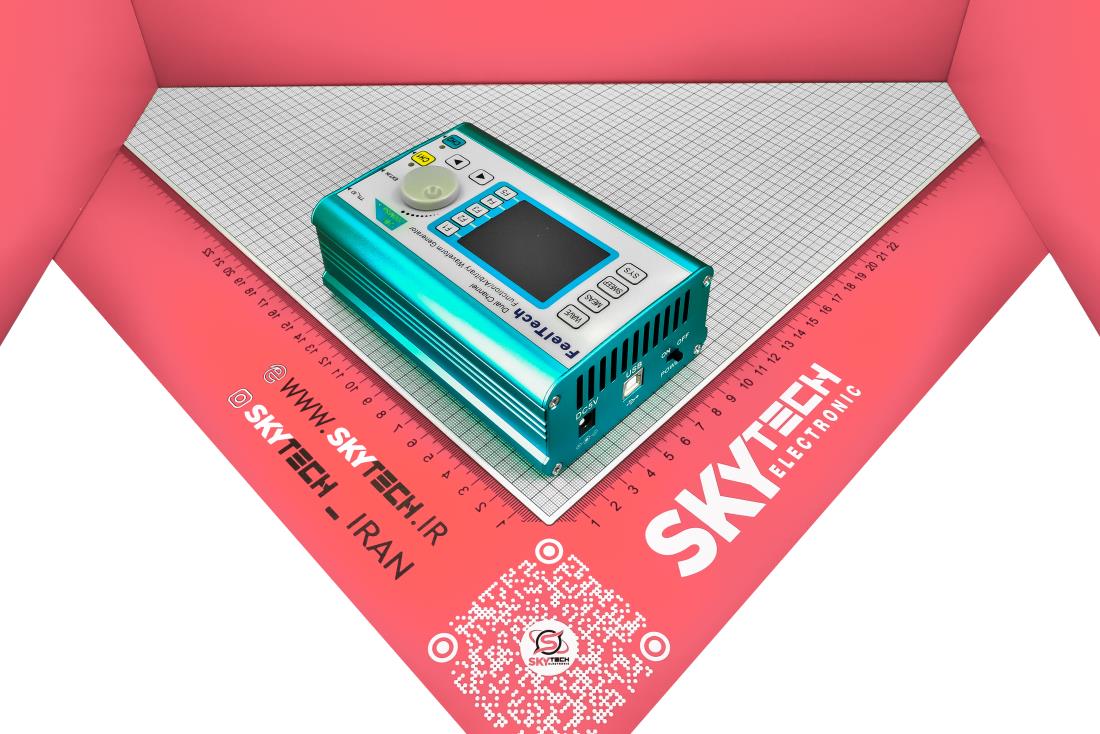

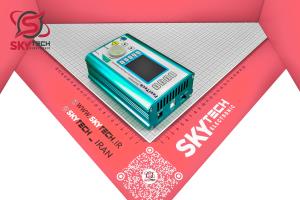

FY2300 series Dual Channel Function/Arbitrary Waveform Generator is a
multifunctional signal generator product integrating Function Signal Generator,
Arbitrary Waveform Generator, Pulse Signal Generator, Noise Signal Generator,
Counter and Frequency Meter with excellent cost performance. This instrument
adopts large scale CMOS integrated circuit and high speed MCU microprocessor. The internal circuit uses SPXO as the basic standard to guarantee the stability of
signals. Surface mounting technology improves interference immunity and
operational life span.
This instrument has double channels can output 31 preseted DDS signals
including Sine, Square, Triangle(Ramp), Rise Sawtooth, Fall Sawtooth, Lorenz
Pulse, Multitone, Noise, Cardiogram, Trapezoidal Pulse, Sinc Pulse, Narrow
Pulse, Gauss White Noise, AM, FM, Step and user-defined waveform. It can also
output TTL electric level. Both channels are completely independent
It has friendly human-machine mutual interface. 2.4 inch TFT Color LCD with
320×240 resolution can display all the parameters of both channels and current
functions of all buttons . Shortcut keys simplify all complicated operations and
save time. Users can be proficient after several minutes practice.
The advantages of this instrument in signal generating, waveform sweeping,
parameter measurement and other fields, make it to be the ideal equipment for
electronic engineers, laboratories, industry producing line, university, R&D
institutes and so on.
Main Features:
Adopt DDS technology to generate accurate, stable signal with low distortion.
Portable design with top grade aluminum alloy shell. Use DC5V power adopter or 5V portable power for power supply.
2.4 inch TFT Color LCD with 320 × 240 resolution can display all the
parameters of both channels and current functions of all buttons .
Frequency output of Sine wave can be up to 25MHz. 200MSa/s sampling rate.
12 bits vertical resolution.
Complete independent dual channels can work at same time and phase
difference is adjustable.
Following function allows users to synchronize all or partial parameters of
CH2 to CH1.
Two instruments or more can be synchronized by TTL_IO interface.
|
