تراشه فلیپ فلاپ نوع D

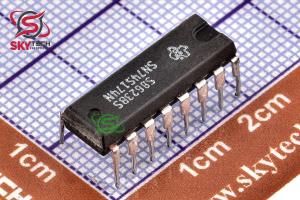

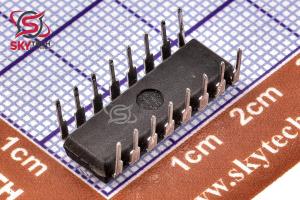

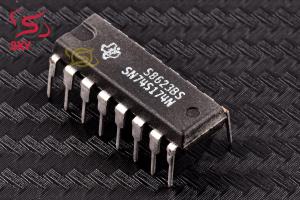

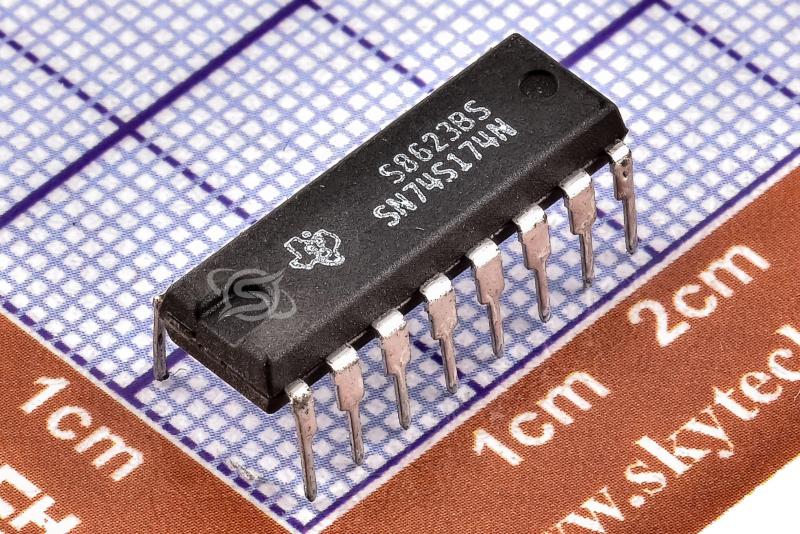

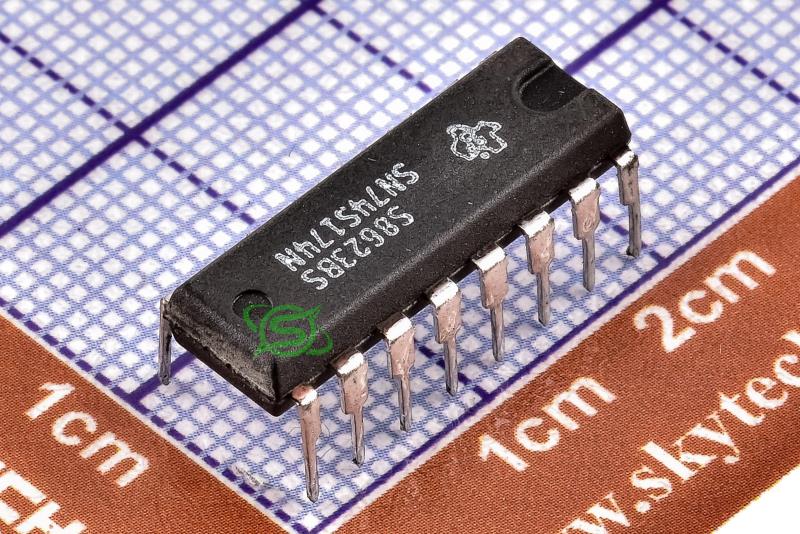

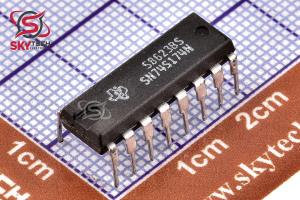

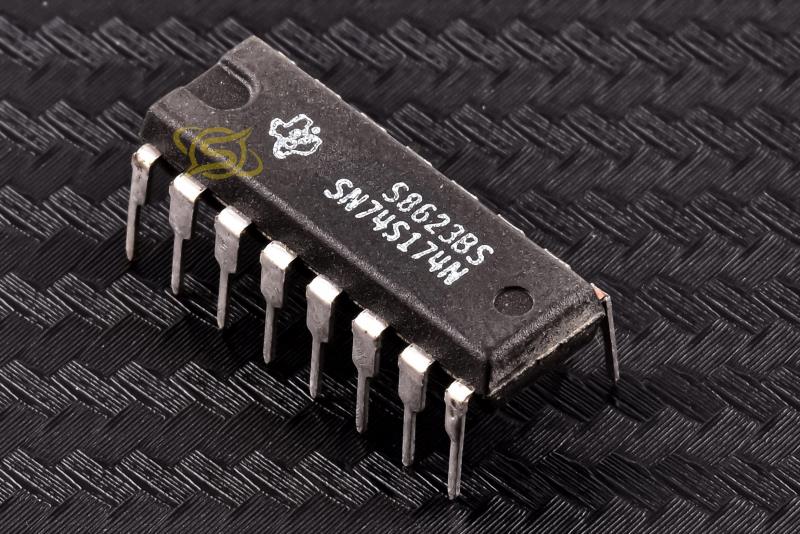

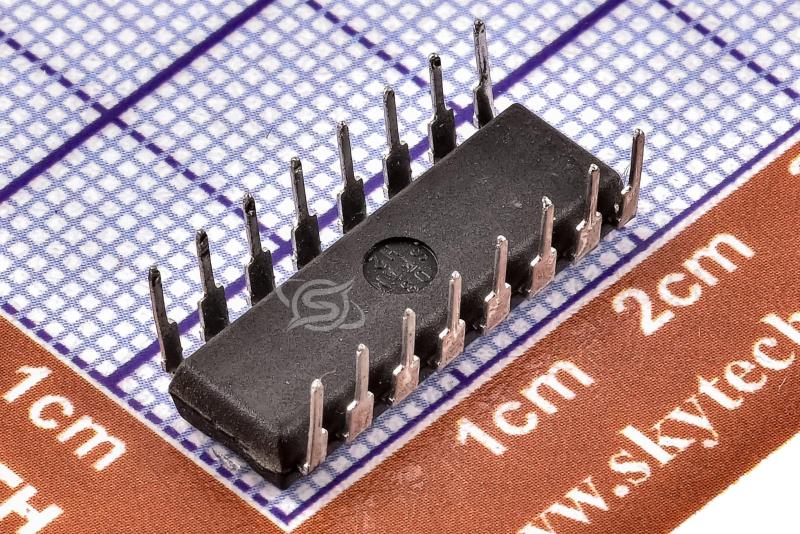

SN74S174N
MULTIBRAND HEX-QUADRUPLE D-TYPE FLIP-FLOPS WITH CLEAR
کیفیت: Bulk(فله ایی) پکیج: PDIP-16
قیمت تک فروشی 154,038 ریال
قیمت عمده 147,710 ریال (10 به بالا)
قیمت ویژه 145,179 ریال (100 به بالا)
قیمت فوق العاده143,913 ریال (1000 به بالا)
![SKYTECH](bootstrap/img/Icon/tether.png) قیمت تک فروشی 0.226 تتر با تخفیف
1.191.131.111.1
|
توضیحات
فليپ فلاپ D با استفاده از دو فليپ فلاپ SR ساخته ميشود که پشت به پشت يکديگر بسته شدهاند. در اين فليپ فلاپ يک گيت معکوسکننده (گيت NOT) بين دو ورودي S و R متصل ميشود که امکان ورود سيگنال داده D را فراهم ميکند. مدار فليپ فلاپ پايه D را ميتوان با اضافه کردن فليپ فلاپ دوم به خروجي فليپ فلاپ اول ارتقا داد که فليپ فلاپ دوم توسط متمم پالس کلاک فعال ميشود. اين نوع فليپ فلاپ را Master-Slave مينامند.
تفاوت بين يک لچ D و يک فليپ فلاپ نوع D در اين است که، لچ فاقد سيگنال کلاک براي تغيير وضعيت است، اما فليپ فلاپ با استفاده از کلاک وضعيت خود را تغيير ميدهد. فليپ فلاپ D يک وسيله حساس به لبه است که دادههاي ورودي را در هر لبه بالا رونده يا پايين رونده سيگنال کلاک به خروجي منتقل ميکند. اما لچهاي داده، مانند لچهاي D و لچهاي شفاف وسايل حساس به سطح هستند.
Description
The D flip-flop is constructed using two SR flip-flops connected back to back. In this flip-flop, an inverting gate (NOT gate) is connected between the two inputs S and R, which allows the input of the data signal D. The D-base flip-flop circuit can be improved by adding a second flip-flop to the output of the first flip-flop, which is activated by the complement of the clock pulse. This type of flip-flop is called Master-Slave.
The difference between a D-type latch and a D-type flip-flop is that the latch has no clock signal to change state, but the flip-flop changes its state using the clock. The D flip-flop is an edge-sensitive device that transfers the input data to the output on each rising or falling edge of the clock signal. But data latches, like D latches and transparent latches, are level-sensitive devices.
|
