توضیحات

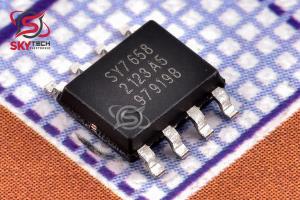

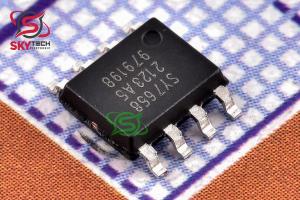

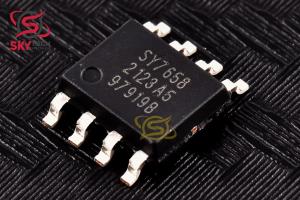

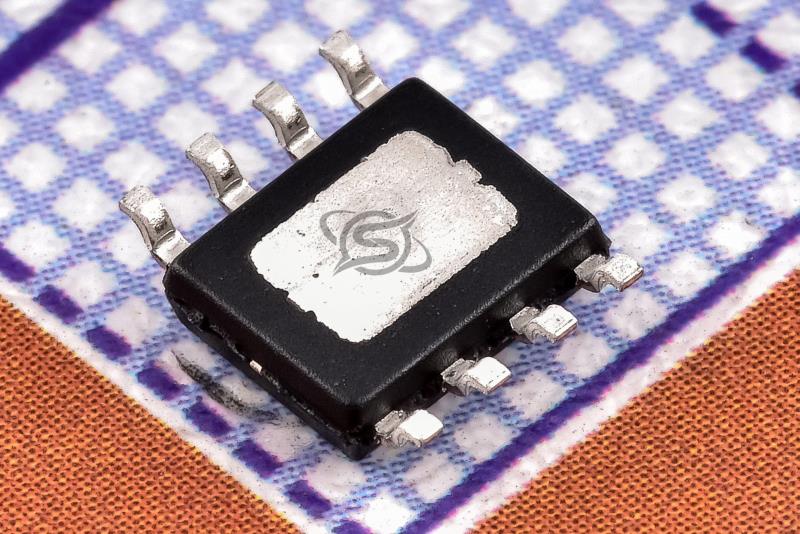

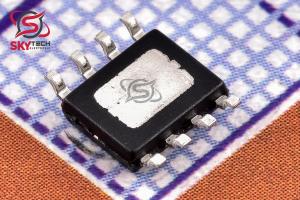

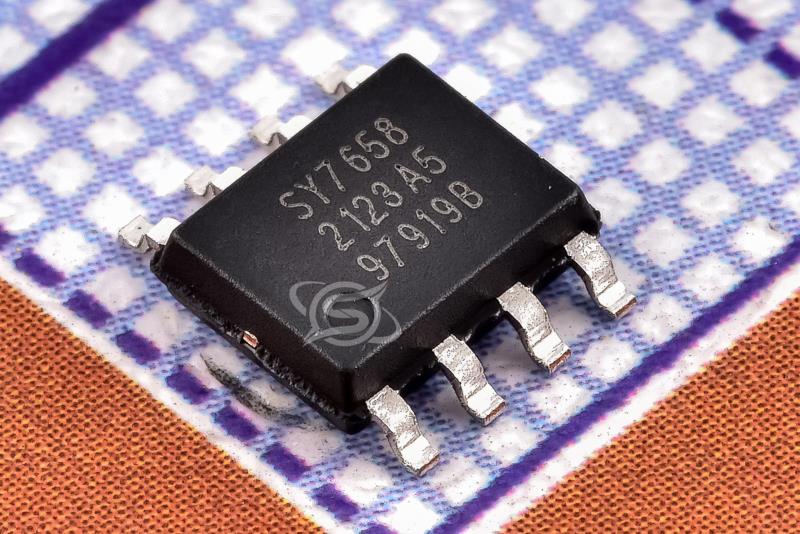

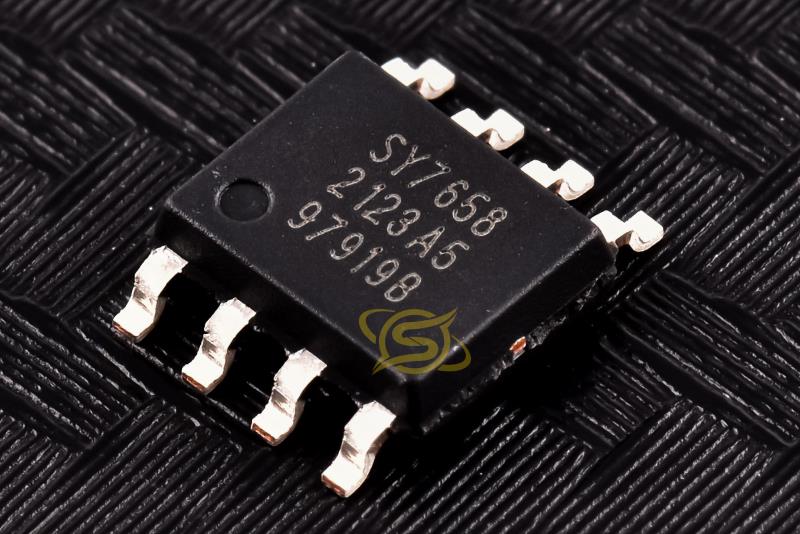

تراشه شارژ باتري يک تراشه الکترونيکي است که براي مديريت و کنترل فرآيند شارژ باتريها استفاده ميشود. اين تراشهها در دستگاههايي مانند تلفن همراه، لپتاپ، دستگاههاي قابل حمل و ساير دستگاههاي الکترونيکي که از باتري استفاده ميکنند، استفاده ميشوند.
وظيفه تراشه شارژ باتري، کنترل جريان و ولتاژ ورودي به باتري و نظارت بر فرآيند شارژ باتري است. اين تراشهها از طريق سنسورها و مدارهاي کنترلي متعدد، اطلاعاتي از باتري مانند ولتاژ، جريان و دما را به دست ميآورند و بر اساس آنها، براي شارژ بهينه باتري و جلوگيري از خطراتي مانند شارژ زياد، دماي بالا يا شارژ ناکافي، سيگنالهاي کنترلي را توليد ميکنند.
تراشههاي شارژ باتري عموماً شامل مدارهايي براي شناسايي نوع باتري، مديريت شارژ و تخليه، محافظت در برابر اتصال کوتاه و نوسانات ولتاژ و جريان و همچنين ارتباط با سيستمهاي کنترلي بيروني ميشوند. اين تراشهها غالباً در قالب يک مدار متکامل (IC) ارائه ميشوند و به طور معمول با ساير قطعات الکترونيکي مانند مقاومتها، خازنها و ترانزيستورها در يک مدار چندلايه (PCB) ترکيب ميشوند.
با استفاده از تراشه شارژ باتري، عمر مفيد باتري، کارايي شارژ و تخليه، و همچنين ايمني در استفاده از باتريها بهبود مييابد. علاوه بر اين، توسعه تراشههاي شارژ باتري پيشرفته و قدرتمند، امکاناتي مانند شارژ سريع، شناسايي هوشمند باتري و مديريت انرژي پيشرفته را فراهم ميکند.
Description
The battery charging chip is an electronic chip that is used to manage and control the charging process of batteries. These chips are used in devices such as mobile phones, laptops, portable devices and other electronic devices that use batteries.
The task of the battery charging chip is to control the current and voltage input to the battery and monitor the battery charging process. These chips obtain information from the battery such as voltage, current, and temperature through multiple sensors and control circuits, and based on them, generate control signals to optimally charge the battery and prevent risks such as overcharging, high temperature, or insufficient charging. they do.
Battery charging chips generally include circuitry to identify the battery type, manage charge and discharge, protect against short circuit and voltage and current fluctuations, as well as interface with external control systems. These chips are often presented in the form of an integrated circuit (IC) and are typically combined with other electronic components such as resistors, capacitors, and transistors on a multilayer circuit board (PCB).
By using the battery charging chip, the useful life of the battery, the efficiency of charging and discharging, as well as the safety of using the batteries are improved. In addition, the development of advanced and powerful battery charging chips provides features such as fast charging, intelligent battery identification and advanced power management.
|
