آی سی بافر

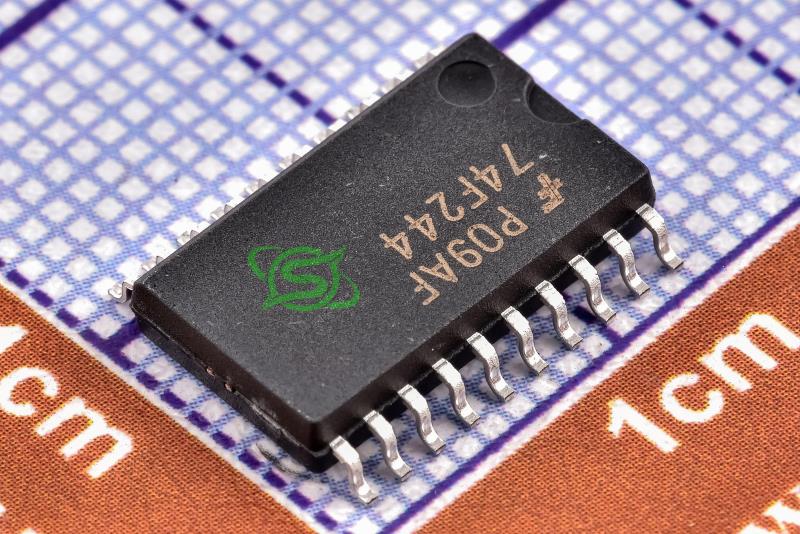

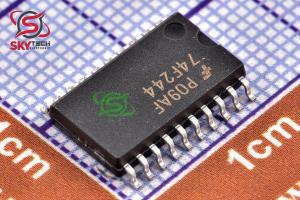

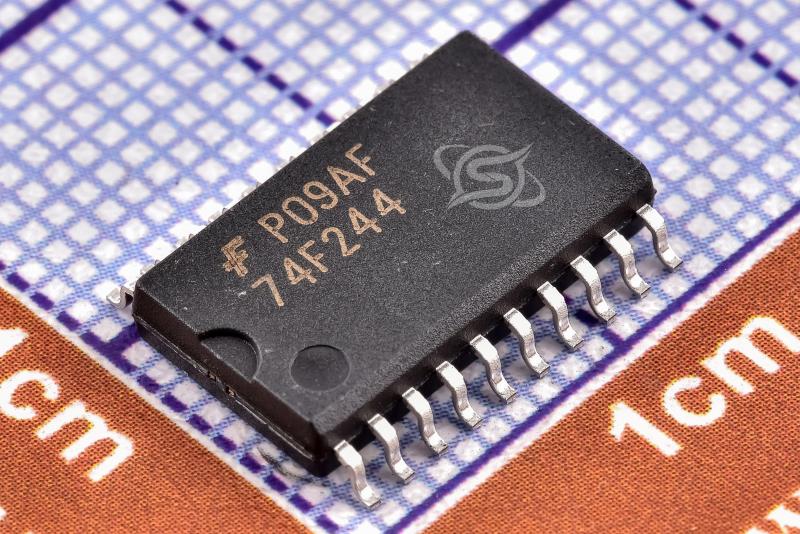

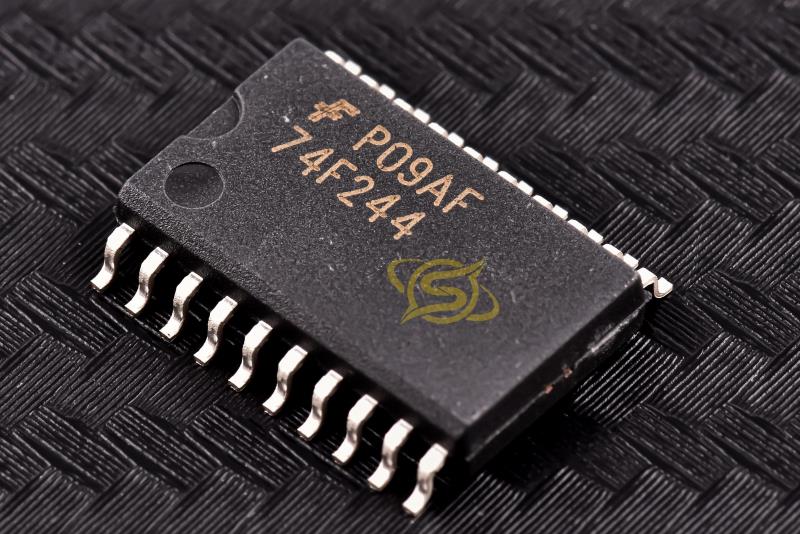

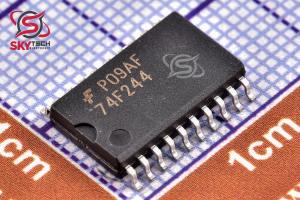

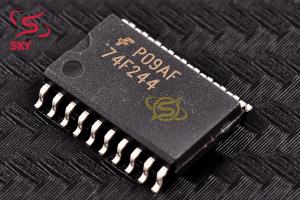

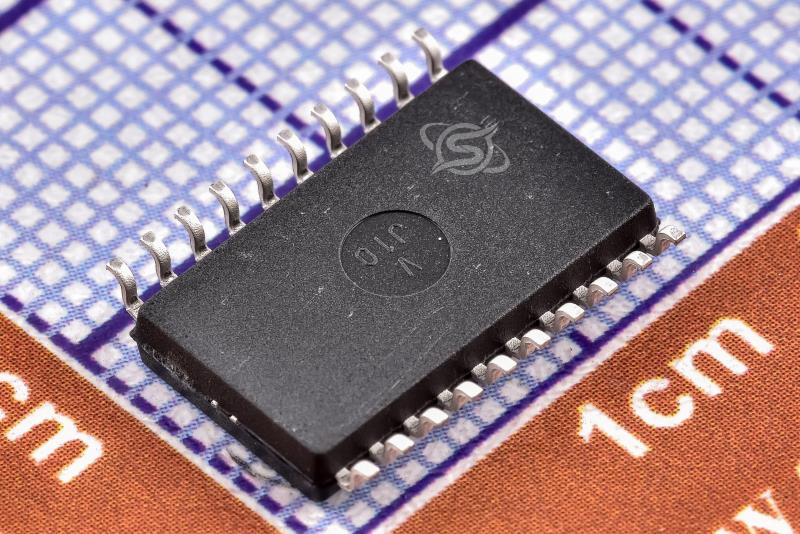

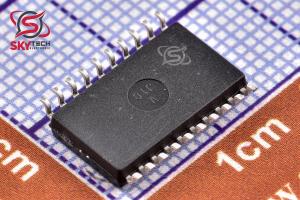

SN74F244DWR
Buffer & Line Drivers , Non-Inverting 2 Element 4 Bit per Element 3-State Output
کیفیت: ORIGINAL(distributor) پکیج: SOIC-20
قیمت تک فروشی 277,879 ریال
قیمت عمده 265,153 ریال (10 به بالا)
قیمت ویژه 260,062 ریال (100 به بالا)
قیمت فوق العاده257,517 ریال (1000 به بالا)
![SKYTECH](bootstrap/img/Icon/tether.png) قیمت تک فروشی 0.436 تتر با تخفیف
2.552.422.382.35
|
توضیحات
اين بافرهاي هشتگانه و درايورهاي خط به طور خاص براي بهبود عملکرد و چگالي درايورهاي آدرس حافظه 3 حالته، درايورهاي کلاک ، و گيرنده ها و فرستنده هاي باس محور طراحي شده اند. اين دستگاهها همراه با «F240» و «F241» انتخاب ترکيبي از خروجيهاي معکوس و غير معکوس، وروديهاي OE متقارن (فعال-خروجي کم فعال) و وروديهاي OE و OE مکمل را ارائه ميدهند. F244 به عنوان دو بافر/خط درايور 4 بيتي با ورودي هاي فعال خروجي مجزا (OE) سازماندهي شده است. هنگامي که OE کم است، دستگاه داده ها را از ورودي هاي A به خروجي هاي Y ارسال مي کند. هنگامي که OE بالا باشد، خروجي ها در حالت امپدانس بالا هستند. SN74F244 در بسته کوچک طرح کوچک (DB) TI موجود است که تعداد پين هاي ورودي/خروجي و عملکرد بسته هاي استاندارد کوچک را در کمتر از نيمي از مساحت برد مدار چاپي ارائه مي کند. SN54F244 براي عملکرد در محدوده دماي نظامي کامل از -55 درجه سانتيگراد تا 125 درجه سانتيگراد کاربرد دارد . SN74F244 براي عملکرد از 0 درجه سانتيگراد تا 70 درجه سانتيگراد کاربرد دارد.
Description
These octal buffers and line drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. Taken together with the ?F240 and ?F241, these devices provide the choice of selected combinations of inverting and noninverting outputs, symmetrical OE (active-low output-enable) inputs, and complementary OE and OE inputs. The ?F244 is organized as two 4-bit buffers/line drivers with separate output enable (OE) inputs. When OE is low, the device passes data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state. The SN74F244 is available in TI’s shrink small-outline package (DB), which provides the same I/O pin count and functionality of standard small-outline packages in less than half the printed-circuit-board area. The SN54F244 is characterized for operation over the full military temperature range of ?55°C to 125°C. The SN74F244 is characterized for operation from 0°C to 70°C.
|
