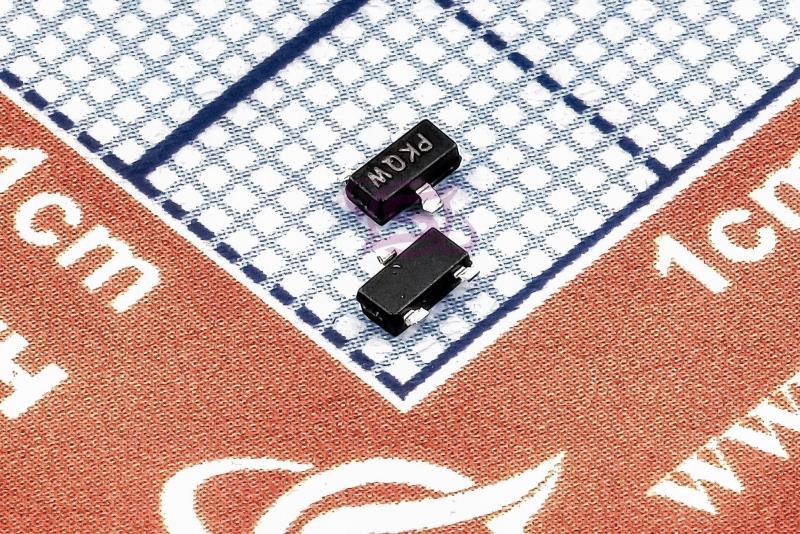

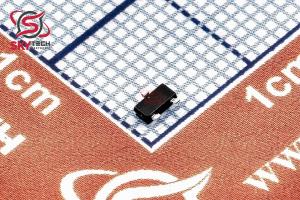

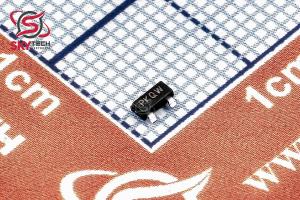

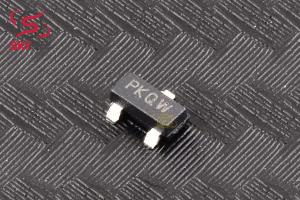

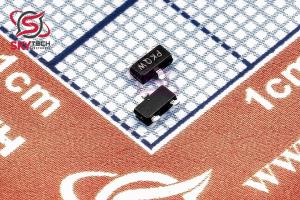

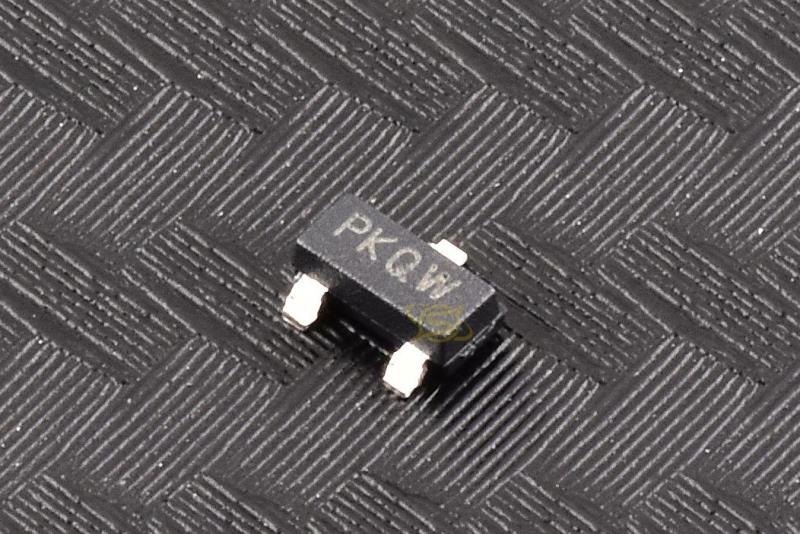

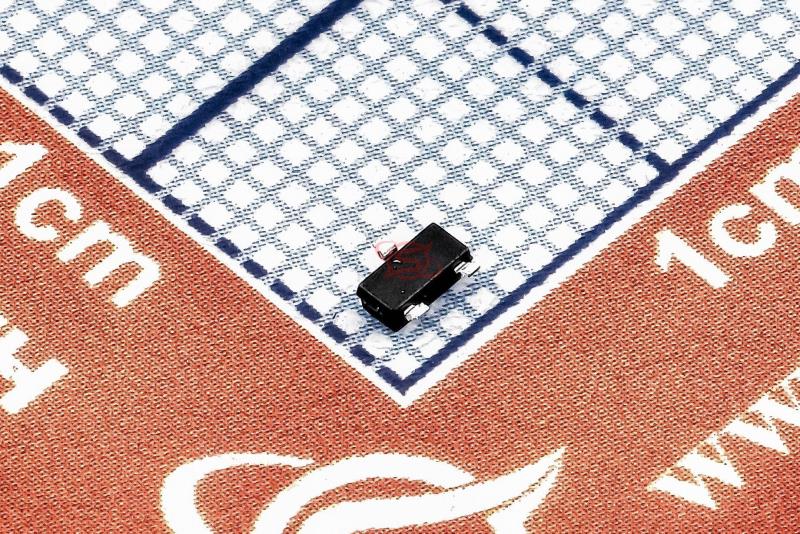

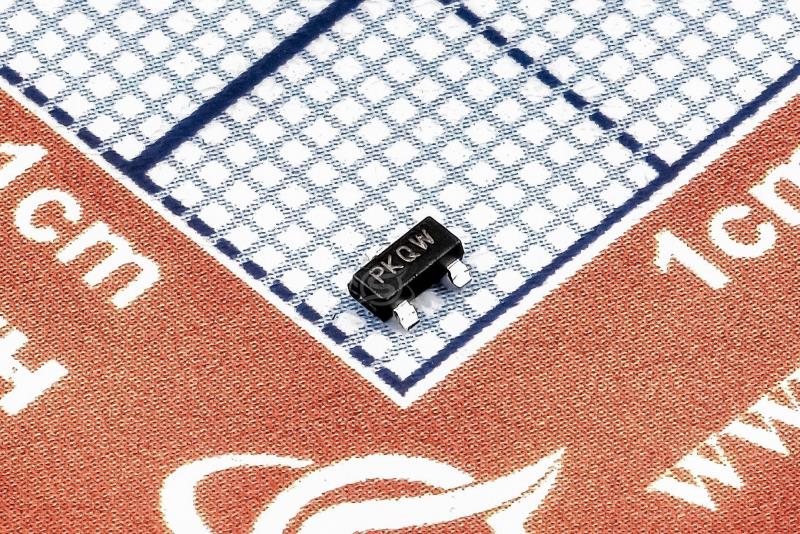

آی سی محافظ ریست میکروکنترلر
MCP130T-300I/TT
voltage supervisory device designed to keep a microcontroller in reset until the system voltage has reached the proper level and stabilized
کیفیت: ORIGINAL(distributor) پکیج:
قیمت تک فروشی 591,930 ریال
قیمت عمده 527,160 ریال (10 به بالا)
قیمت ویژه 516,797 ریال (100 به بالا)
قیمت فوق العاده511,615 ریال (1000 به بالا)
 قیمت تک فروشی 0.813 تتر با تخفیف
4.543.923.88
|
توضیحات
آي سي مدل MCP130T-300I/TTجزو آي سي هاي ناظر طبقه بندي مي گردد. اين آي سي محصول برند Microchip Technology مي باشد. اين آي سي از نوع ريست ساده - ريست در شروع مي باشد. اين آي سي 1 را بررسي ميکند. خروجي اين ناظر به صورت Open Drain or Open Collector مي باشد. ريست اين آي سي به صورت فعال ساز سطح پايين مي باشد. زمان پايان ريست 350 ميلي ثانيه مي باشد.
Description
The Microchip Technology Inc. MCP120/130 is a voltage supervisory device designed to keep a microcontroller in reset until the system voltage has reached the
proper level and stabilized. It also operates as protection from brown-out conditions when the supply voltage
drops below a safe operating level. Both devices are
available with a choice of seven different trip voltages
and both have open drain outputs. The MCP130 has an
internal 5 k? pullup resistor. Both devices have active
low RESET pins. The MCP120/130 will assert the
RESET signal whenever the voltage on the VDD pin is
below the trip-point voltage.
-FEATURES:
• Holds microcontroller in reset until supply voltage
reaches stable operating level
• Resets microcontroller during power loss
• Precision monitoring of 3V, 3.3V and 5V systems
• 7 voltage trip points available
• Active low RESET pin
• Open drain output
• Internal pull-up resistor (5 k?) for MCP130
• Holds RESET for 350 ms (typical)
• RESET to VCC = 1.0V
• Accuracy of ±125 mV for 5V systems and ±75 mV
for 3V systems over temperature
• 45 µA typical operating current
• Temperature range:
- Industrial (I): -40°C to +85°C
|
