توضیحات
JY01 براي کنترل موتور هاي براشلس DC ،موتور BLDCبا سنسور اثر هال يا بدون اين سنسور ميباشد.راه اندازي و استفاده ي اين ايسي ساده ميباشد.درايو اين ايسي توسط SPWM با نويز کم صورت ميگيرد.
اين ايسي بصورت عمده در زمينه هاي زيادي کاربرد دارد، مانند : موتور هاي براشلس فن و هواکش ها ،موتور هاي پمپ ، اسکوتر ها ، ربات ها ،پنجره هاي برقي و ... کاربرد دارد
Description

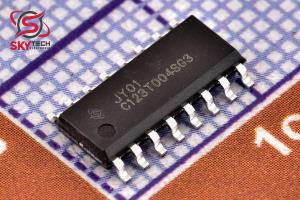

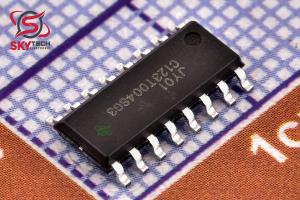

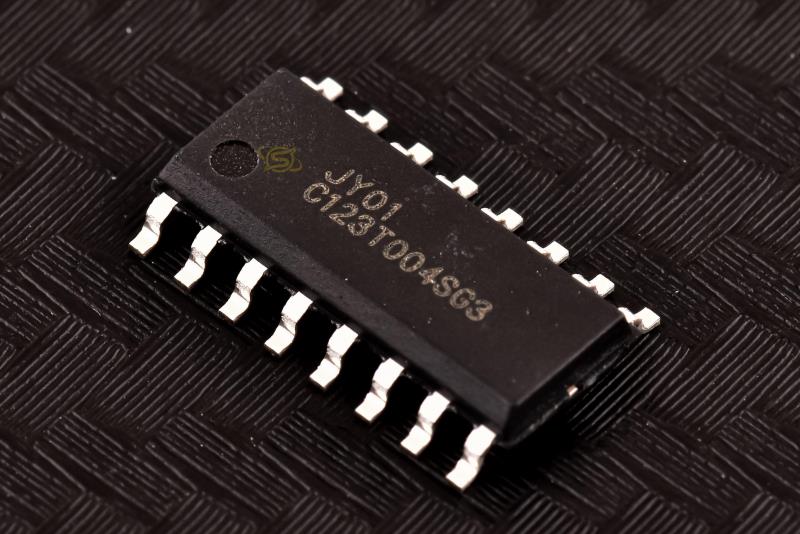

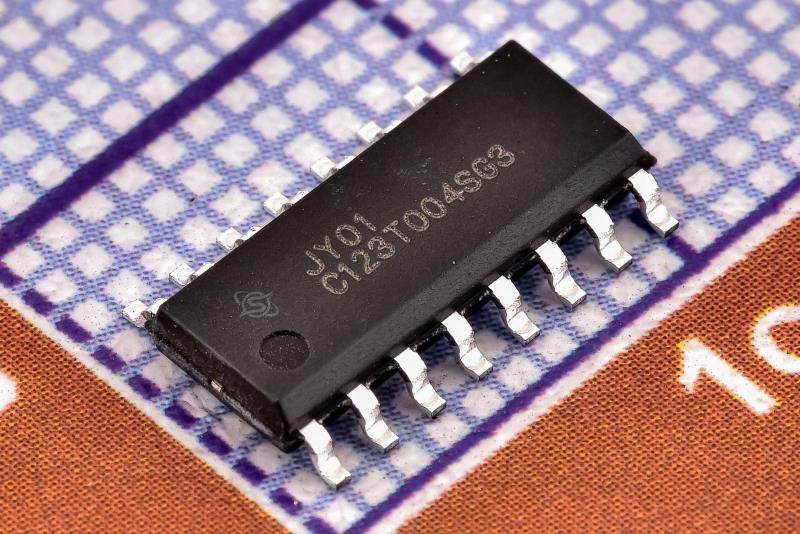

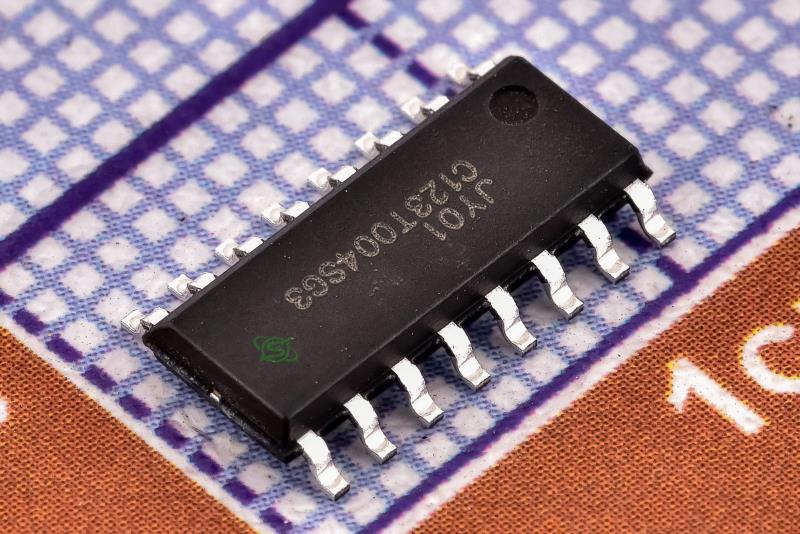

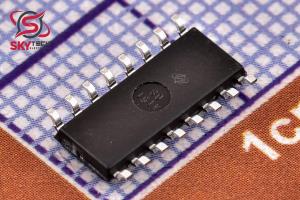

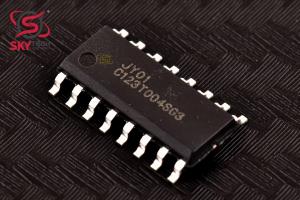

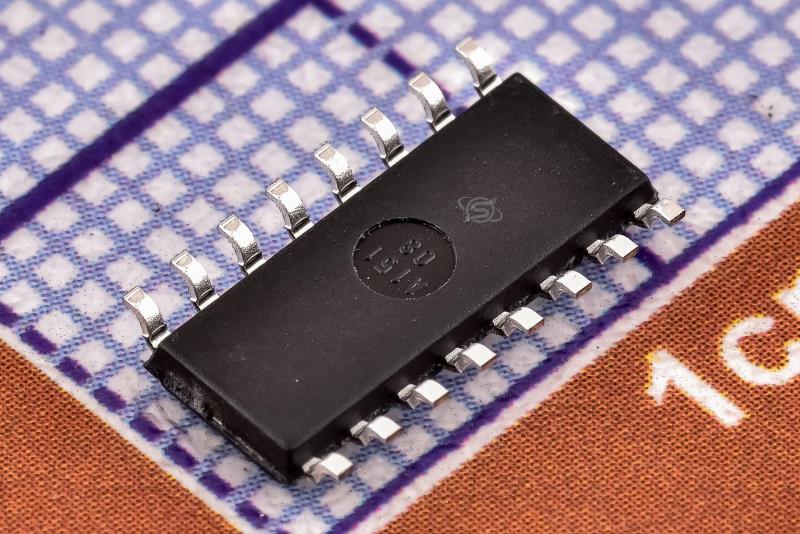

JY01 is special designed control IC for brushless DC motor driver, applied to Hall sensor BLDC motor or sensorless BLDC motor, its easy to application, peripheral circuit is simple, low costs, SPWM drive modewith low noise, high efficiency, stable quality and professional technical support,JY01 has been quickly approved by many electronic engineers.
JY01 has been widely used in many fields, such as:
brushless DC fan, brushless DC pump, lawn mower, scooter,balanced car, robot, scientific instruments and equipment,auto fuel pump, electric Windows, electric seat adjustment,air-conditioning fan, electric rearview mirror adjustment,such as home appliances such as vacuum cleaners, air conditioning, plumbing equipment, high-end childrens toys, model aircraft, model cars, model, etc.; It has also been widely used in handheld tools such as grinding machines, hand drills, engraving machines, electric screwdrivers, etc
2:Characteristics
*Working voltage: 4.5 v-5.5 V.
*Working temperature: -40-85 C
*Drive mode: SPWM
*Daul drive mode : With Hall senor or sensorless
*Adaptive motor: no hall motor/hall motor.
*Steering control: positive/negative
*Soft reversing: Yes
*Speed signal: Yes
*Overload protection: Yes
*Current closed loop: Yes
*Constant current drive: Yes
*Blocking protection: Yes
*Soft starting: yes
*Special technology: JYKJ full condition safety start *function
*Speed adjustment: linear
*Soft start period:1 S,3 S,10S optional
|
