توضیحات
BGU8011X از جمله ايسي هاي امپليفاير براي گيرنده هاي GNSS که در پکيج پلاستيکي 6 پين بسيار کوچک طراحي شده است و تنها نيازمند به يک خازن خارجي براي کوپلاژ و يک سلف ميباشد.
-ويژگي ها :
-پشتيباني از باند کامل GNSS L1 از 1559 تا 1610 مگاهرتز
-جريان مصرفي کم در حد 4 ميلي آمپر
-محافظت شده در برابر ESD
*کاربرد در موبايل ها ، تبلت ها ، مسيرياب ها و هر جايي که ردي از GPS باشد.
Description
The BGU8011 is a Low Noise Amplifier (LNA) for GNSS receiver applications, available in
a small plastic 6-pin extremely thin leadless package. The BGU8011 requires one external
matching inductor and one external decoupling capacitor.
The BGU8011 adapts itself to the changing environment resulting from co-habitation of
different radio systems in modern cellular handsets. It has been designed for low power
consumption and optimal performance when jamming signals from co-existing cellular
transmitters are present. At low jamming power levels it delivers 16.3 dB gain at a noise
figure of 0.65 dB. During high jamming power levels, resulting for example from a cellular
transmit burst, it temporarily increases its bias current to improve sensitivity.
1.2 Features and benefits:
* Covers full GNSS L1 band, from 1559 MHz to 1610 MHz
*Noise figure (NF) = 0.65 dB
*Gain 16.3 dB
*High input 1 dB compression point of -5 dBm
*High out of band IP3i
of 7 dBm
*Supply voltage 1.5 V to 3.1 V
*Optimized performance at a low supply current of 4.2 mA
*Power-down mode current consumption < 1 mA
*Integrated temperature stabilized bias for easy design
*Requires only one input matching inductor and one supply decoupling capacitor
*Input and output DC decoupled
*ESD protection on all pins (HBM > 2 kV)
*Integrated matching for the output

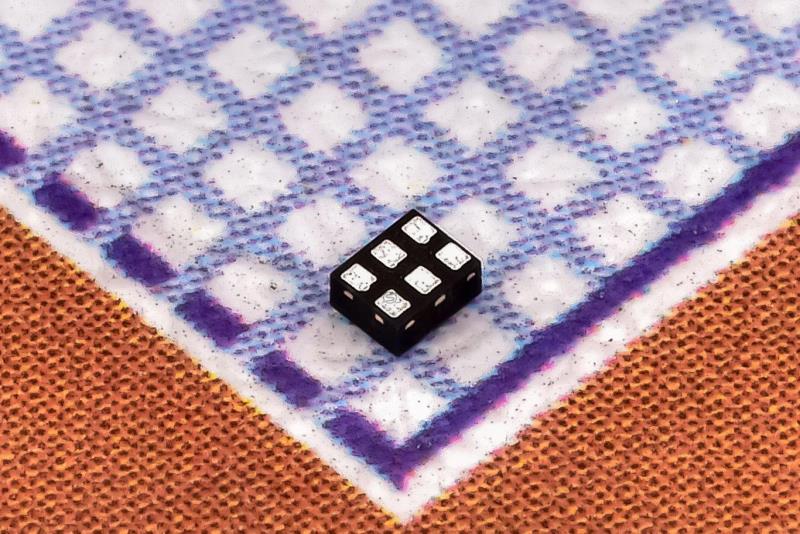

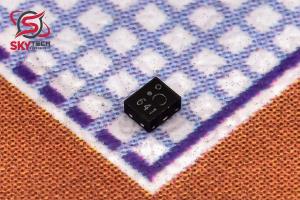

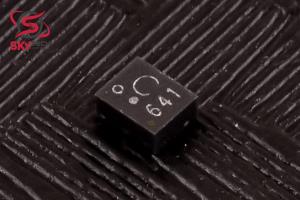

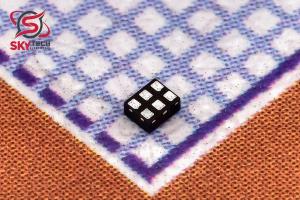

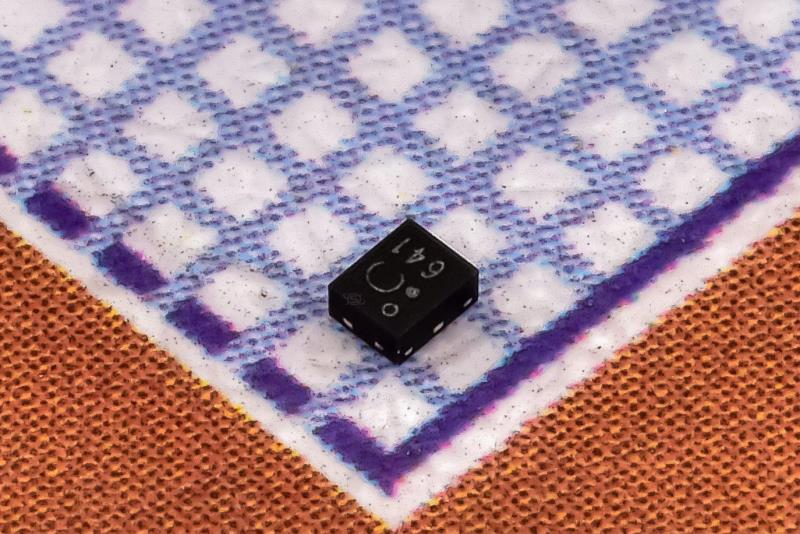

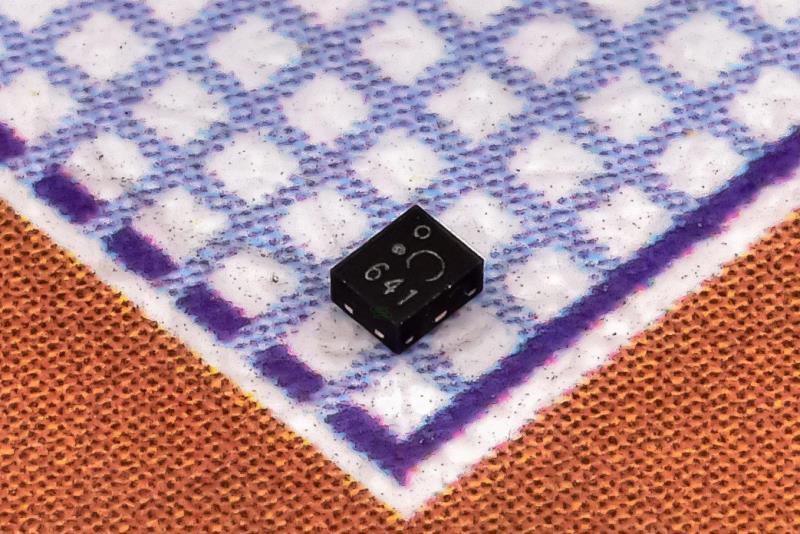

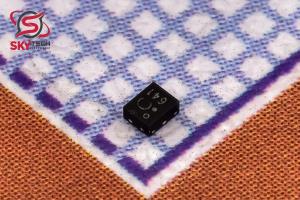

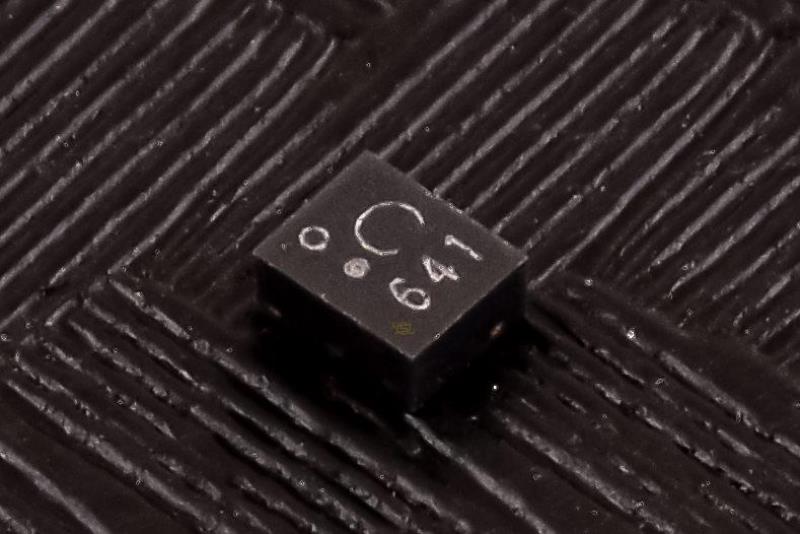

* Available in a 6-pins leadless package 1.1 mm ´ 0.9 mm ´ 0.47 mm; 0.4 mm pitch:
SOT1230
* 180 GHz transit frequency - SiGe:C technology
*Moisture sensitivity level of 1
1.3 Applications:
*LNA for GPS, GLONASS, Galileo and Compass (BeiDou) in smart phones, feature
phones, tablet PCs, digital still cameras, digital video cameras, RF front-end modules,
complete GNSS modules and personal health applications.
|
