توضیحات
Qca8337 يک ايسي سوييچ اترنت7 کاناله با پشتيباني از سرعت 10/100Mbps ..پشتيباني از Auto MDI-MDIX ، رگولاتور LDO داخلي ، بافر 1 مگابيتي ، پشتيباني از مديريت مصرف انرژي 802.3az ، و ACL mask rule from layer 1 to layer 4. Port number, destination address, source address,
Ethernet type, VLAN, IP protocol, IPv4/IPv6 source/destination address, TCP/UDP
source/destination port. از ويژگي هاي ديگر قطعه ميباشد که در سوييچ هاي اترنت و کاربرد دارد.
Description

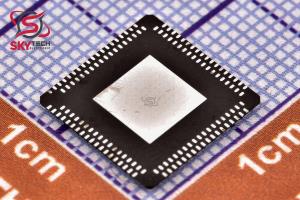

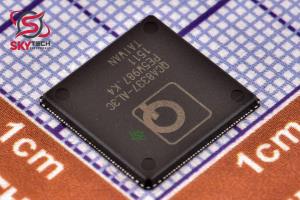

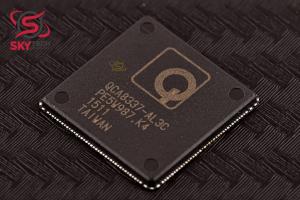

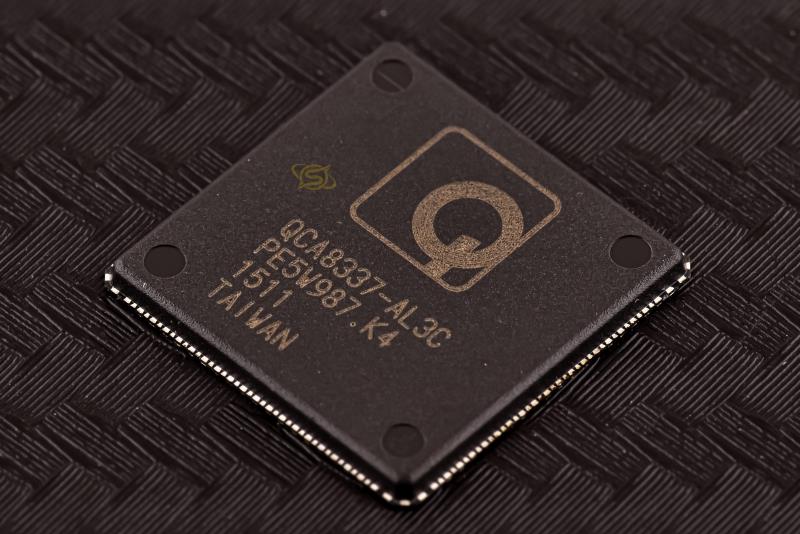

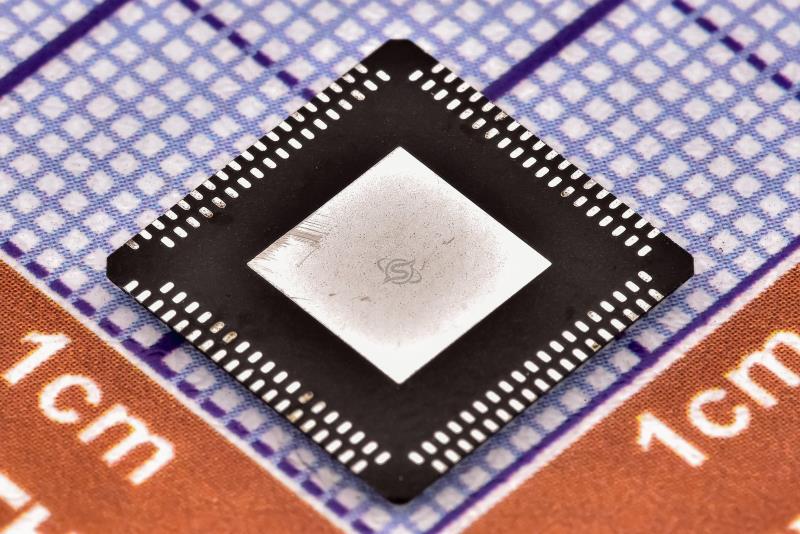

QCA8337N Seven-port Gigabit Ethernet
Switch
*The QCA8337N is a highly integrated seven-port Gigabit Ethernet switch with non-blocking
switch fabric, a high-performance lookup unit with 2048 MAC addresses, and a four-traffic class
Quality of Service (QoS) engine. The QCA8337N switch has the flexibility to support various
networking applications. The QCA8337N is designed for cost-sensitive switch applications in
high end gateway and xPON.
The QCA8337N integrates all the functions of a high-speed switch system, including packet
buffer, PHY transceivers, media access controllers, address management, and a non-blocking
switch fabric into a single 55 nm CMOS device. It complies with 10BASE-Te, and 1000BASE-T
specifications, including MAC control, pause frame, and auto-negotiation subsections, providing
compatibility with all industry standard Ethernet, Fast Ethernet and Gigabit Ethernet.
|
