آی سی آپ امپ

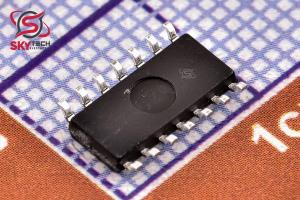

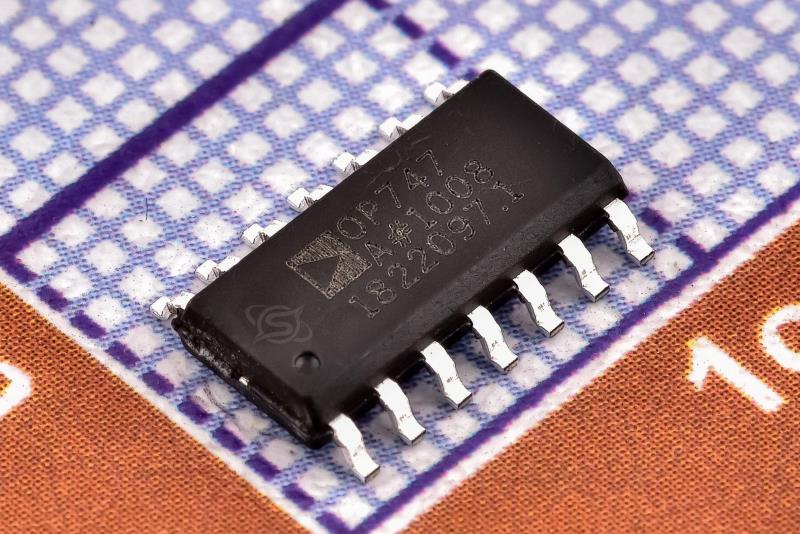

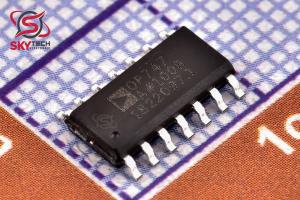

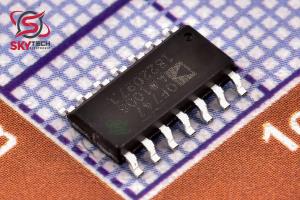

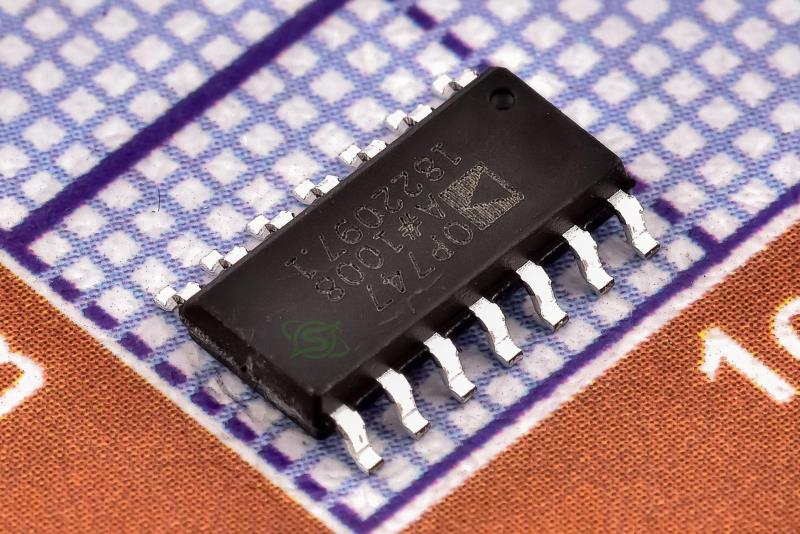

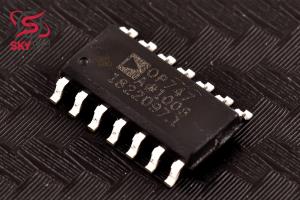

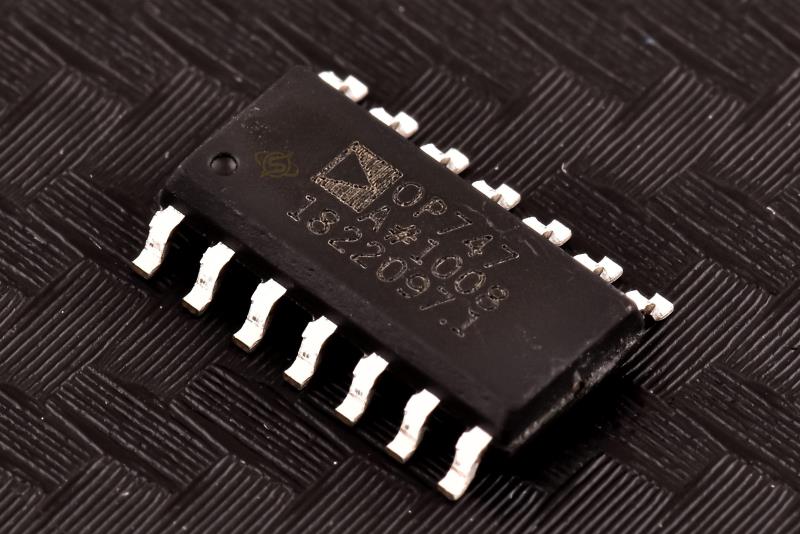

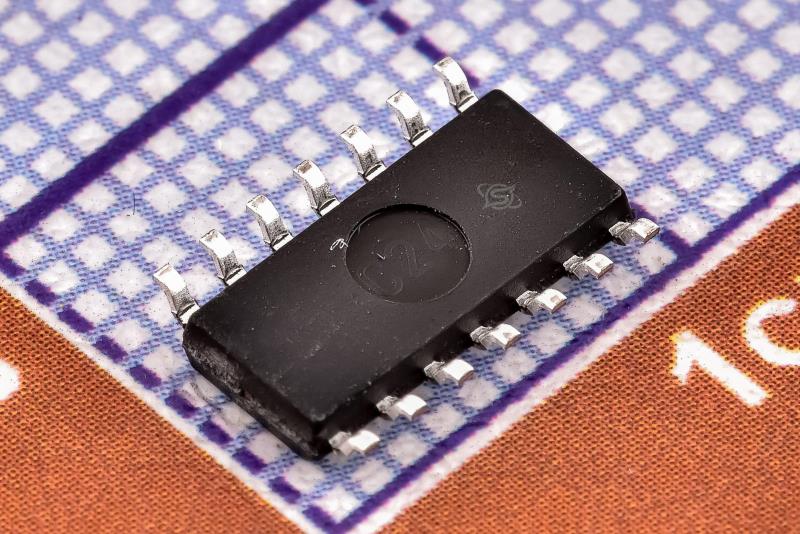

OP747AR SOP14
The OP777 , OP727 , and OP747 are precision single , dual, and quad rail-to-rail output single- supply amplifiers featuring micropower operation and rail-to-rail output ranges.
کیفیت: ORIGINAL(distributor) پکیج:
قیمت تک فروشی 696,232 ریال
قیمت عمده 584,360 ریال (10 به بالا)
قیمت ویژه 573,173 ریال (100 به بالا)
قیمت فوق العاده567,579 ریال (1000 به بالا)
![SKYTECH](bootstrap/img/Icon/tether.png) قیمت تک فروشی 1.028 تتر با تخفیف
654.94.85
|
توضیحات
ايسي هاي سري OP777,OP727,OP747 اپ امپ هاي تک ، دوگانه ، و چهار گانه از نوع Rail to Rail که براي کاربرد هاي صنعتي و عمومي طراحي شده اند.
*ويژگي ها : ولتاژ افست پايين در حد 100 ميکرو ولت
*جريان وروردي باياس کم در حد 100 نانو آمپر
*ولتاژ تغذيه ي دوگانه از 1.35/15
*ولتاژ تغذيه ي دوبل از 2.7 تا 30 ولت
-کاربرد ها :
*سنس کننده ي جريان از نوع شانت
*سنسور هاي از راه دور و ...
Description
The OP777 , OP727 , and OP747 are precision single , dual,
and quad rail-to-rail output single- supply amplifiers featuring
micropower operation and rail-to-rail output ranges. These
amplifier s provide improved performance over the industry -standard
OP07 with ±15 V supplies , and offer the further advantage of true
single-supply operation down to 2.7 V , and smaller package
options than any other high-voltage precision bipolar amplifier.
Outputs are stable with capacitive loads of over 500 pF. Supply
current is less than 300 µA per amplifier at 5 V. 500 Ohm series resistors protect the inputs, allowing input signal levels several volts above
the positive supply without phase reversal.
Applications for these amplifiers include both line-powered and
portable instrumentation, remote sensor signal conditioning, and
precision filters.
-FEATURES
*Low Offset Voltage: 100 uV Max
*Low Input Bias Current: 10 nA Max
*Single-Supply Operation: 2.7 V to 30 V
*Dual-Supply Operation: 1.35 V to 15 V
*Low Supply Current: 300 A/Amp Max
*Unity Gain Stable
*No Phase Reversal
-APPLICATIONS
*Current Sensing (Shunt)
*Line or Battery-Powered Instrumentation
*Remote Sensors
*Precision Filters
*OP727 SOIC Pin-Compatible with LT1013
|
