توضیحات
AA8641 يک ايسي ويديو درايور با فيلتر پايين گذر داخلي از نوع low voltage 75 ohm video driver که از ولتاژ عملياتي 3 و 5 ولت پشتيباني ميکند.اين قطعه مناسب دستگاه ها با خروجي ويديو ميباشد مانند دوربين هاي فيلمبرداري و DVD پلير ها.از ويژگي هاي اين ايسي ميتوان به ولتاژ عملياتي 2.8 تا 5.5 ولت ، دماي عملياتي گسترده ، جريان مصرفي 7 ميلي آمپر ، مصرف جريان 1 ميکرو امپر در مد استندباي و کوپل داخلي AC , DC اشاره کرد.
Description
AA8641 is a low voltage 75 ohm video driver with built-in low pass filter. It supports 3V
and 5V operating voltage, and is ideal for video output device, ranging from portable
digital still camera and stationary equipment such as DVD player. It incorporates high
performance 4-stage LPF which is ideal for removing DAC sampling noise. In addition,
ultra-low power consumption is achieved through power saving to under 1uA. It prolongs
the battery life of portable device.
? FEATURES
• Operating voltage, typical 2.8V~5.5V
• Operating temperature range, -40~+85 ?
• Current consumption, 7.0mA typical
• Current consumption during power saving, 1.0uA
• High precision voltage gain, 6.0dB +/- 0.3dB
• Built-in high performance 4-stage LPF, 6.75 MHz/ 100KHz Max. +1/-5dB
15 MHz/ 100KHz Typ.-25dB
• Internal clamp, 1.28V

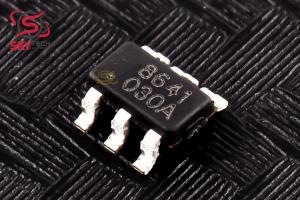

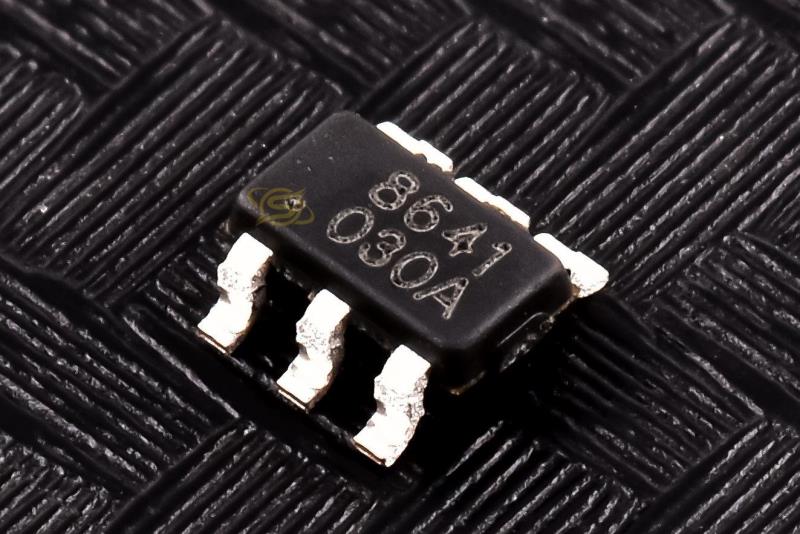

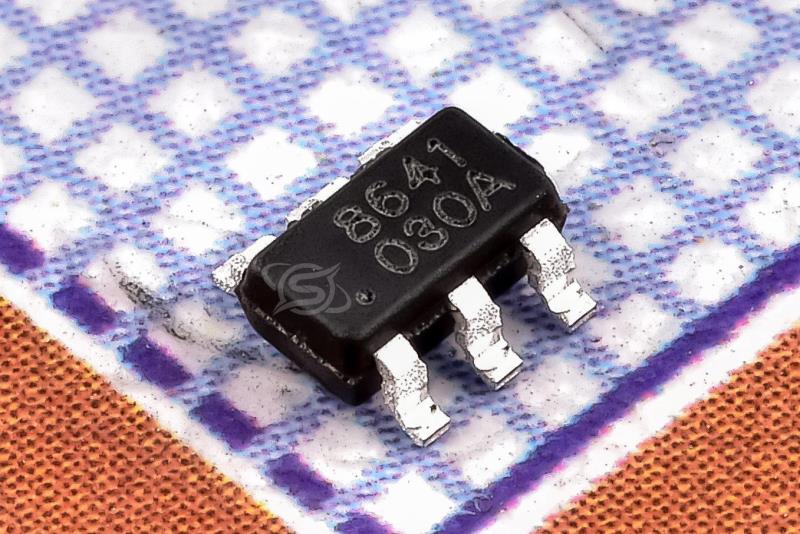

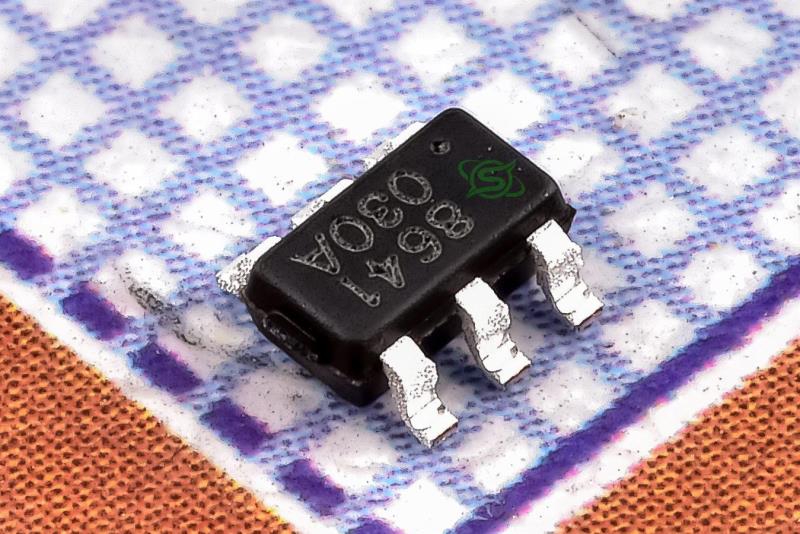

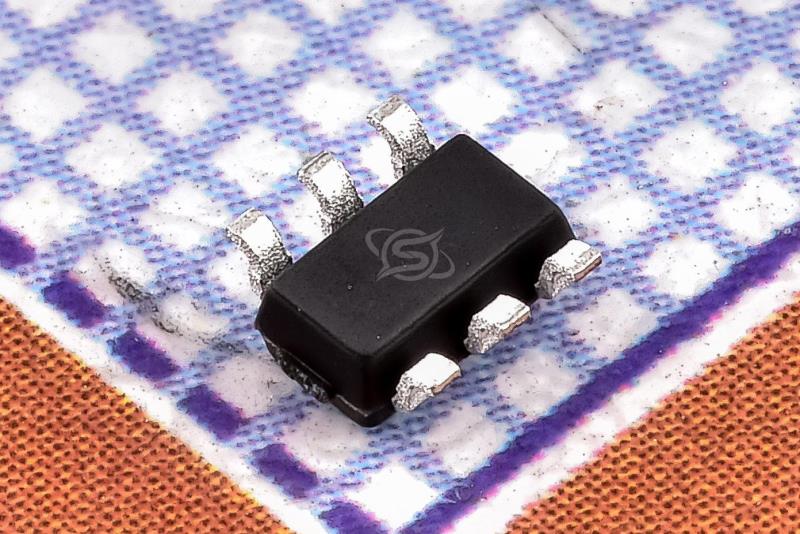

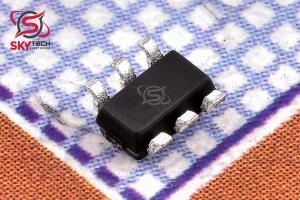

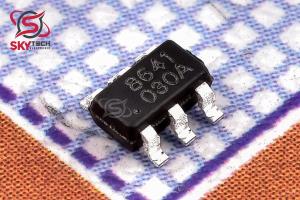

• Ultra small package, SOT26
• Support AC-couple and DC-couple (no need to use output capacitors) output
* APPLICATION
• Portable
• Digital camera
• DVD player
• Surveillance
|
