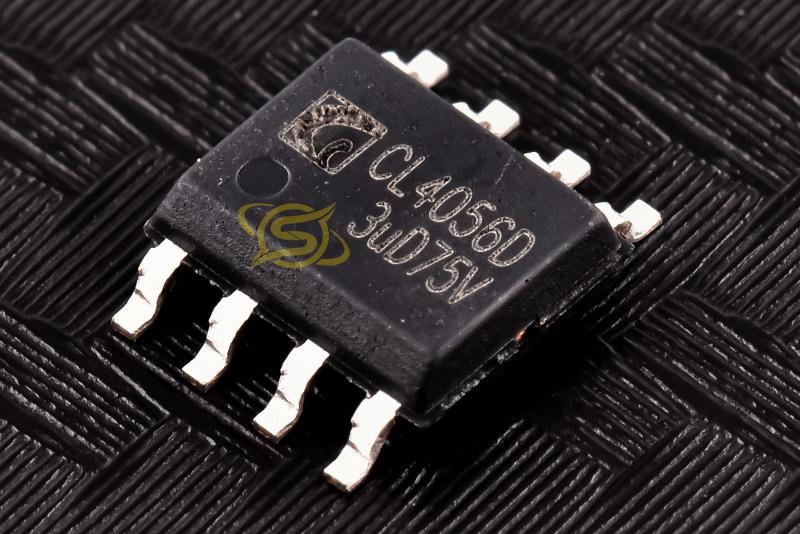

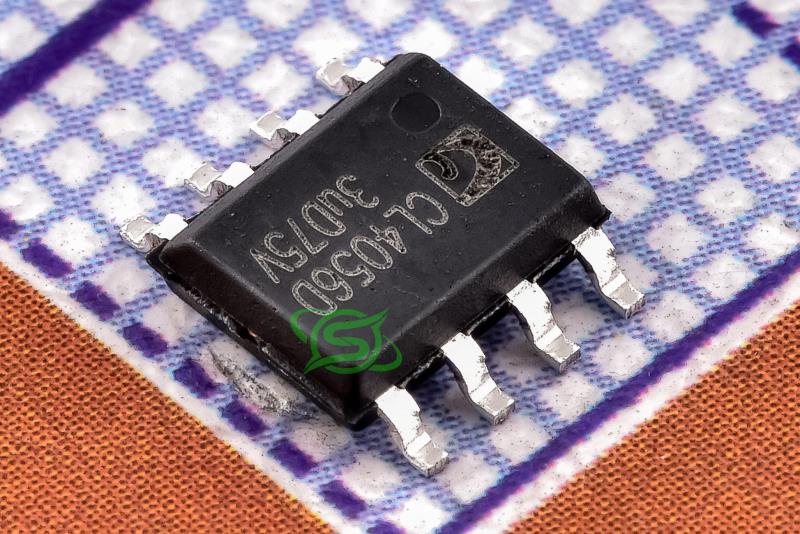

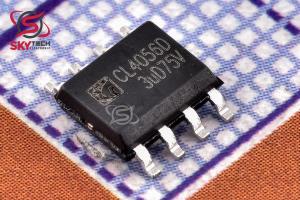

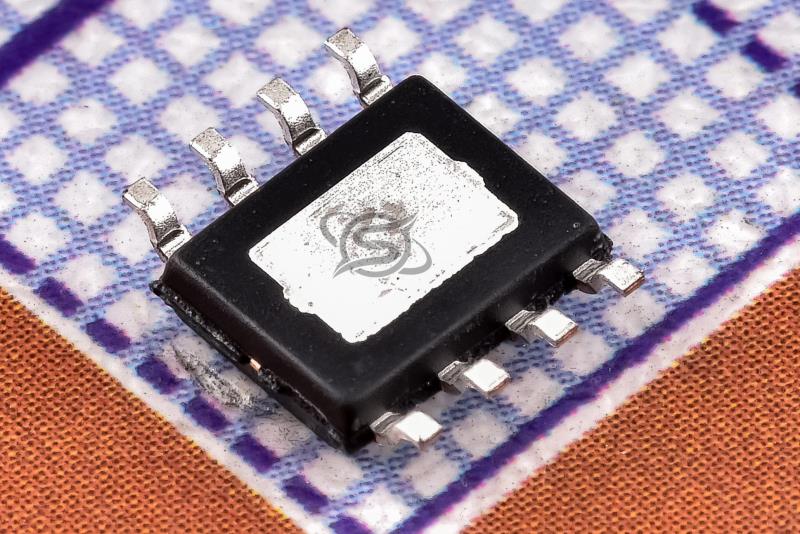

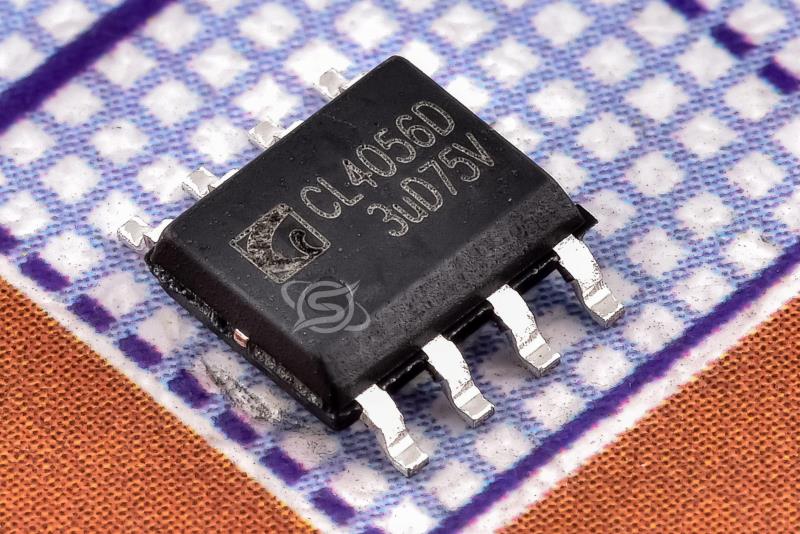

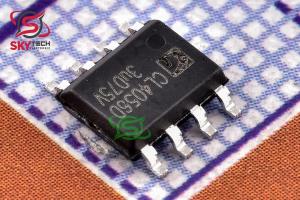

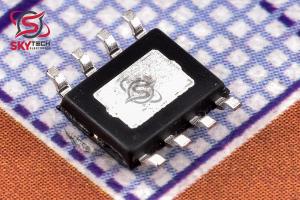

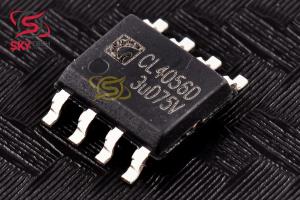

تراشه شارژ باتری
CL4056D
1A Linear Li-Ion Battery Charger
کیفیت: ORIGINAL(distributor) پکیج: ESOP-8
قیمت تک فروشی 60,187 ریال
قیمت عمده 57,520 ریال (10 به بالا)
قیمت ویژه 56,453 ریال (100 به بالا)
قیمت فوق العاده55,920 ریال (1000 به بالا)
 قیمت تک فروشی 0.062 تتر با تخفیف
0.320.30.290.29
|
|
|
نوع محصول |
Battery charging chip |
|
حداکثر دماي کاري |
85 سانتيگراد |
|
حداقل دماي کاري |
-40 سانتيگراد |
|
|
شرکت توليد کننده |
ChipLink Tech |
|
توضیحات
CL4056D يک شارژر خطي جريان ثابت/ولتاژ ثابت باتري تک سلولي ليتيوم يون عالي است. CL4056D از پکيج ESOP8 با قطعات جانبي کمتر استفاده مي کند که آن را براي محصولات قابل حمل بسيار مناسب و براي تغذيه برق USB و برق آداپتور مناسب است. بر اساس معماري داخلي MOSFET ويژه و مدار ضد شارژ معکوس، CL4056D به مقاومت هاي تشخيص خارجي و ديودهاي ايزوله نياز ندارد. هنگامي که دماي محيط خارجي خيلي زياد است يا در کاربردهاي با توان بالا است، بازخورد حرارتي مي تواند جريان شارژ را براي کاهش دماي تراشه تنظيم کند. ولتاژ شارژ روي 4.2 ولت ثابت است و جريان شارژ را مي توان به صورت خارجي توسط يک مقاومت تنظيم کرد. هنگامي که جريان شارژ پس از رسيدن به ولتاژ شارژ شناور نهايي به 1/10 مقدار تنظيم شده کاهش مي يابد، تراشه چرخه شارژ را خاتمه مي دهد.
Description
CL4056D is an excellent single-cell lithium-ion battery constant current/constant voltage linear charger. CL4056D uses ESOP8 package with fewer peripheral components, making it very suitable for portable products and suitable for powering USB power and adapter power. Based on the special internal MOSFET architecture and anti-reverse charging circuit, CL4056D does not require external detection resistors and isolation diodes. When the external ambient temperature is too high or in high-power applications, thermal feedback can adjust the charging current to reduce the chip temperature. The charging voltage is fixed at 4.2V, and the charging current can be set externally by a resistor. When the charging current drops to 1/10 of the set value after reaching the final floating charge voltage, the chip will terminate the charging cycle.
|
