آی سی درایور

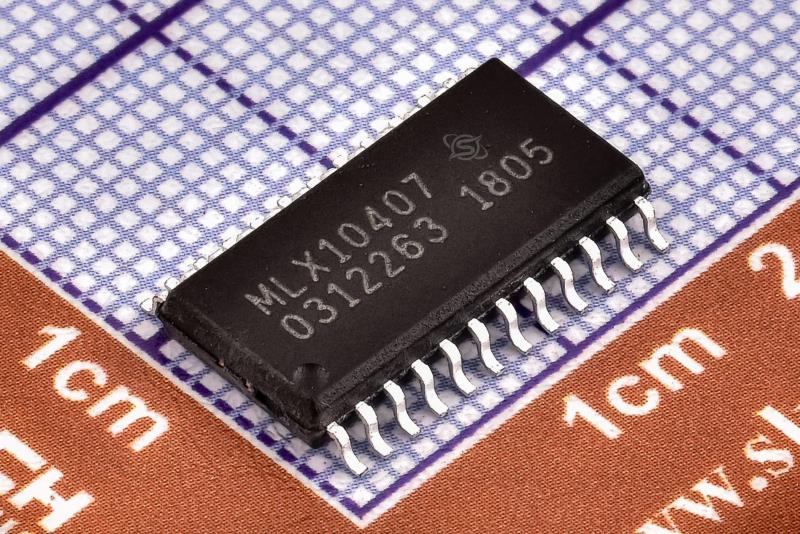

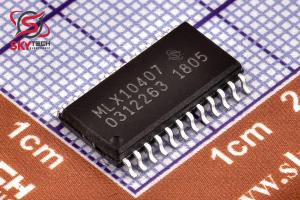

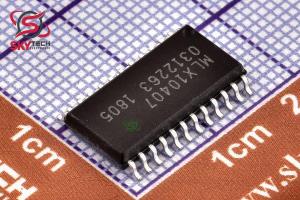

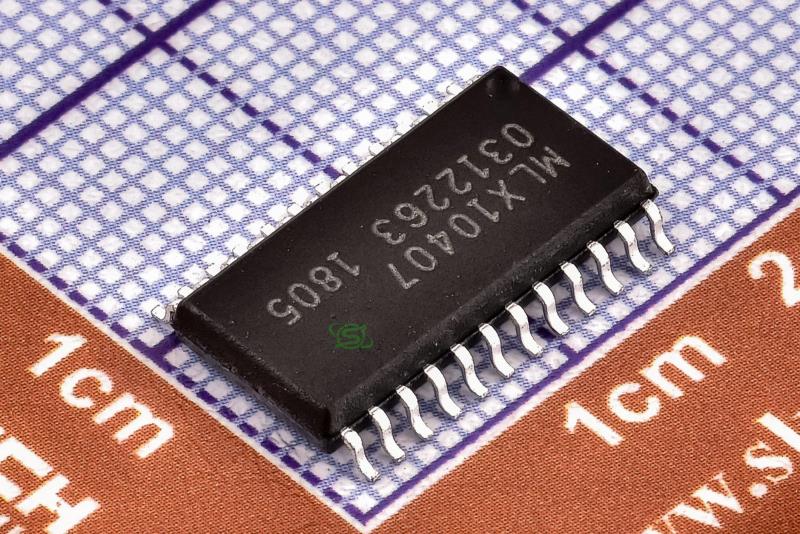

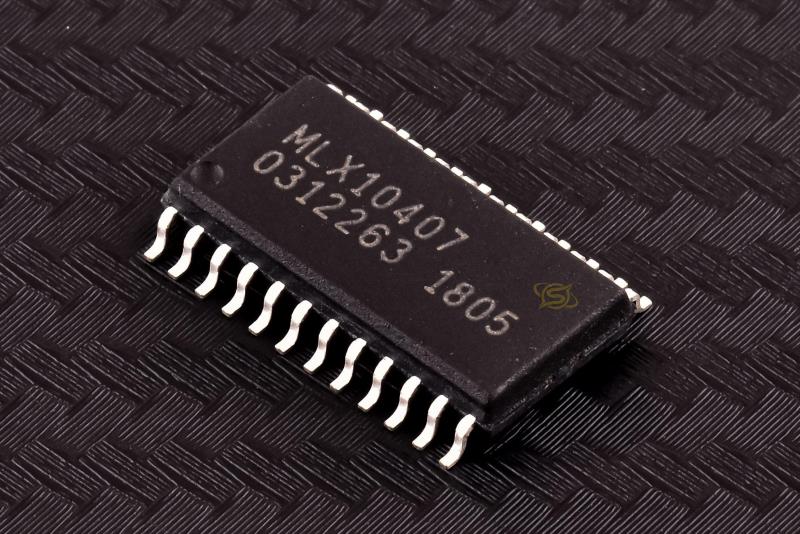

MLX10407
uP peripheral for logometers control using SIN/COS PWM commands
کیفیت: ORIGINAL(distributor) پکیج:
قیمت تک فروشی 1,111,471 ریال
قیمت عمده 1,004,074 ریال (10 به بالا)
قیمت ویژه 984,743 ریال (100 به بالا)
قیمت فوق العاده975,077 ریال (1000 به بالا)
![SKYTECH](bootstrap/img/Icon/tether.png) قیمت تک فروشی 1.643 تتر با تخفیف
9.68.648.478.38
|
توضیحات
اين ايسي يک کنترلر 5 عدد Actuator که دوتاي انها 360 و 3 تاي انها 90 درجه ميباشد .وظيفه عملگر هيدروليک، اکتواتور يا اکچويتور (به انگليسي: Actuator) که نوعي موتور است در شيرهاي کنترل، تأمين نيروي لازم جهت باز و بسته کردن شير و قراردادن آن در موقعيت مطلوب و متناسب با سيگنال ارسالي از طرف کنترلر است. اکچوايتورها در انواع مختلف نئوماتيکي، الکتريکي يا خود عملگر (Self Acting) موجود بوده وبا توجه به وضعيت سيستم انتخاب و استفاده ميگردند.
Description
The 10407 is a uP peripheral for logometers control using SIN/COS PWM commands. The circuit
controls two independant sets of CMOS power bridges. A ten bits angle is displayed with a 9 bits per
quadrant resolution PWM whose frequency is set by a crystal oscillator. A power-on self test detects open or
short-circuits outputs for each logometer and a real time angle tracking avoids display errors.
The 10407 can also drive three small angle logometers (90°).
The communication with the µP is done via a three wires serial link.
The 10407 outputs an error status on a special pin.
*FEATURES:
* Supply voltage up to 12 V.
* Interface directly with 5 V CMOS logic µP.
* Serial link.
* can drive
two actuators 360°
three actuators 90°
* open circuit or short circuit detection
of the drivers outputs.

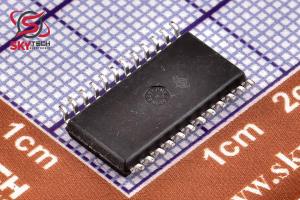

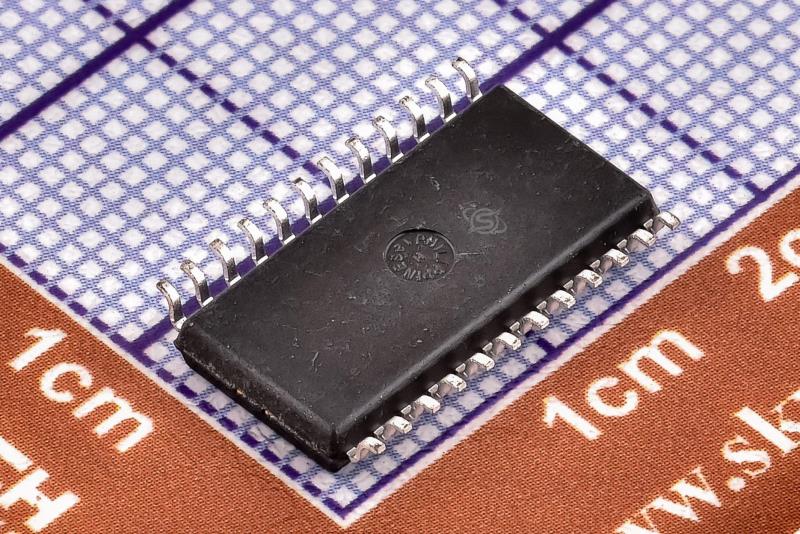

* Small size (SO24 package).
|
