توضیحات

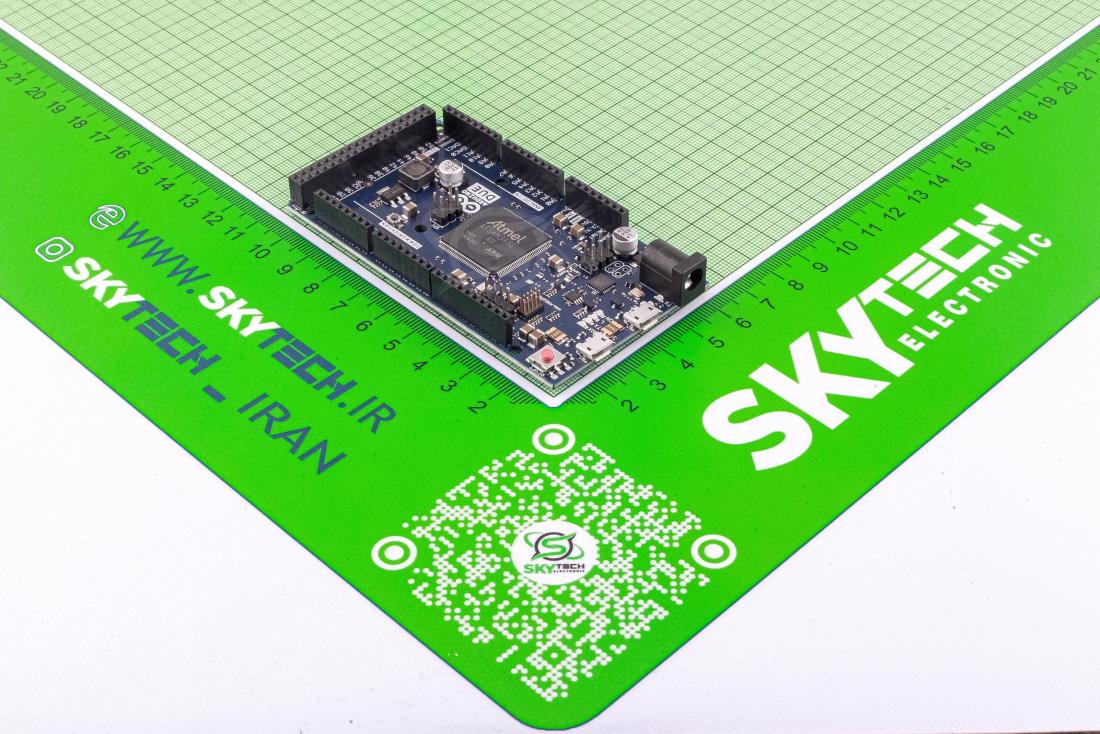

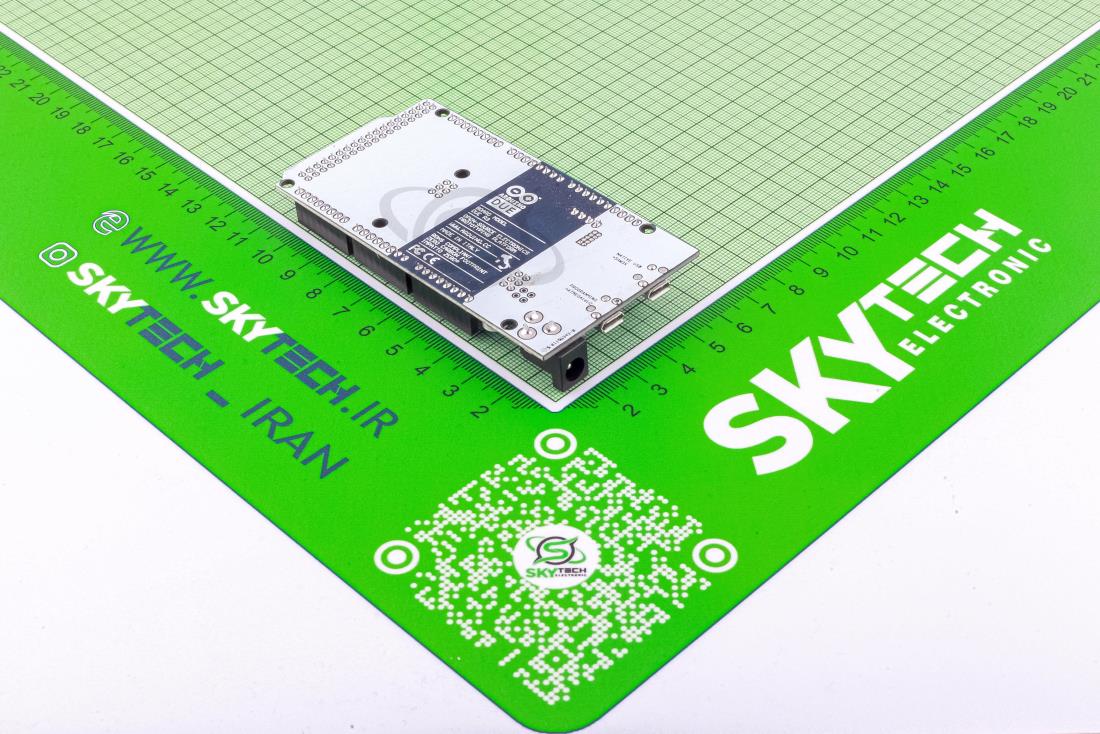

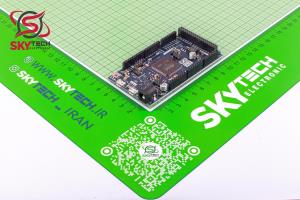

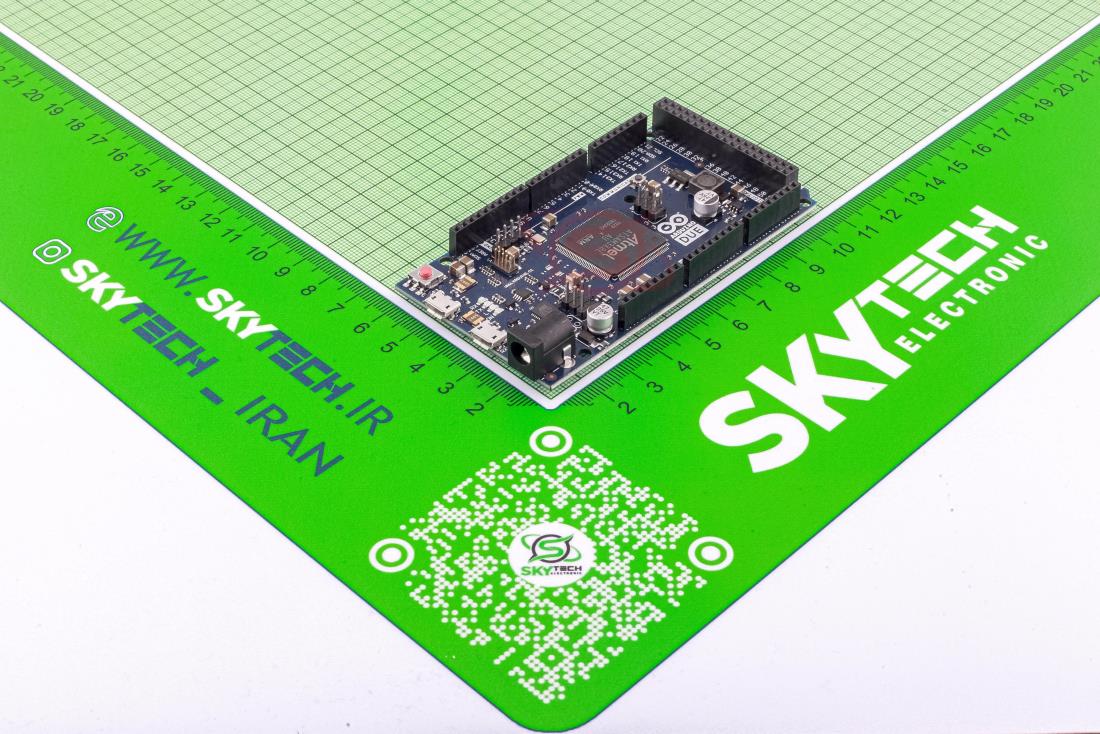

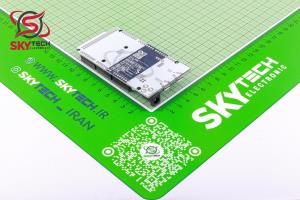

برد آردوينو Due بر اساس يک ميکروکنترلر بر پايه SAM3X8E ARM Cortex-M3 CPU از شرکت Atmel مي باشد. اين برد، اولين برد آردوينويي است که بر اساس ميکروکنترلر با هسته ARM 32 بيتي پايه ريزي شده است.

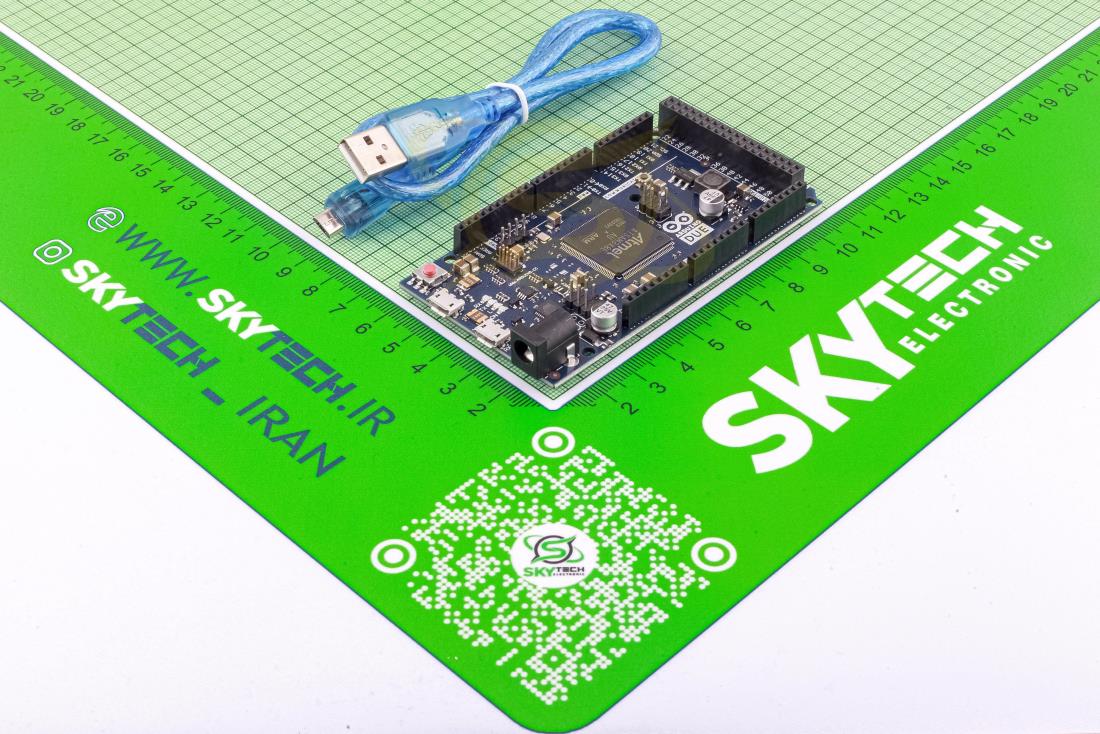

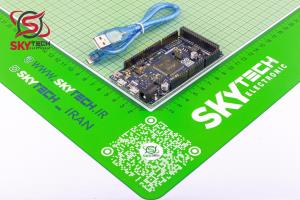

اين برد، هرچيزي را که جهت پشتيباني از ميکروکنترلر مورد نياز است، شامل مي شود؛ براي آغاز کار، برد را با يک کابل micro-USB به سادگي به کامپيوتر متصل کنيد و يا با يک آداپتور AC-to-DC يا باتري، به آن ولتاژ بدهيد. برد Due با همه شيلدهاي آردوينو که با 3.3 ولت کار مي کنند، و همچنين با 1.0 Arduino pinout سازگار است.
هشدار: بر خلاف ديگر بردهاي آردوينو، برد آردوينو Due با ولتاژ 3.3 ولت کار مي کند. حداکثر ولتاژي که پين هاي ورودي/خروجي مي توانند تحمل کنند همين 3.3 ولت است. اعمال ولتاژ هاي بالاتر همچون 5ولت به يک پين ورودي/خروجي، مي تواند به برد آسيب بزند.
Description
NEW PRODUCTS
MOST POPULAR
SPECIAL OFFERS
ARDUINO
ARDUINO EDUCATION
GOODIES
COMPONENTS
OTHER BRANDS
BOOKS & MANUALS
STORE INFO
The Arduino Due is the first Arduino board based on a 32-bit ARM core microcontroller. With 54 digital input/output pins, 12 analog inputs, it is the perfect board for powerful larger scale Arduino projects.
OVERVIEW TECH SPECS DOCUMENTATION
The Arduino Due is a microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU. It is the first Arduino board based on a 32-bit ARM core microcontroller. It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), a 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button. Warning: Unlike most Arduino boards, the Arduino Due board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board. The board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it with a AC-to-DC adapter or battery to get started. The Due is compatible with all Arduino shields that work at 3.3V and are compliant with the 1.0 Arduino pinout.
|
