آی سی رگولاتور ولتاژ سه کاناله

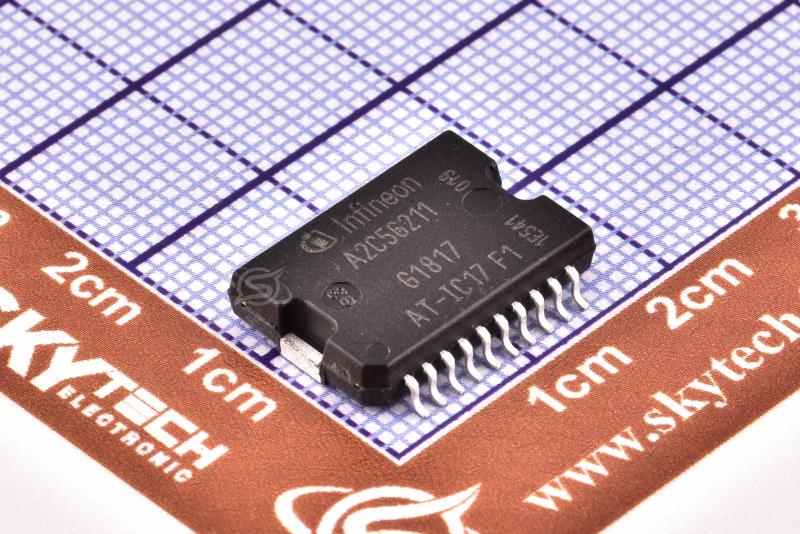

A2C56211
The A2C56211 is a monolithic integrated very low-drop triple voltage regulator
کیفیت: ORIGINAL(distributor) پکیج:
قیمت تک فروشی 1,119,913 ریال
قیمت عمده 1,012,121 ریال (10 به بالا)
قیمت ویژه 992,719 ریال (100 به بالا)
قیمت فوق العاده983,018 ریال (1000 به بالا)
قیمت تک فروشی 1.933 تتر با تخفیف
9.78.738.568.47
|
|
|
حداکثر دماي کاري |
150 سانتيگراد |
|
حداقل دماي کاري |
-65 سانتيگراد |
|
|
|
|
توضیحات
آي سي A2C56211 به عنوان رگولاتور در ايسيوهاي محصولات ايران خودرو و سايپا مورد استفاده قرار گرفته است . از اين آي سي که تامين کننده ولتاژ 5V مي باشد در ايسيوهاي زيمنس L90 ، ريو ، زيمنس بايفيول و کروز استفاده شده است . آي سي A2C56211 با داشتن 3 خروجي رگوله شده که توسط پايه هاي Enable کنترل مي شود يکي از بهترين گزينه ها در طراحي و ساخت ايسيو مي باشد . آي سي جايگزين اين قطعه TLE4471 و A2C33648 مي باشد .
Description
The A2C56211 is a monolithic integrated very low-drop triple voltage regulator. The
deimain output supplies loads up to 450 mA and the additional tracked outputs can prov
up to 50 mA and 100 mA. In addition the device includes a watchdog for
microcontroller-supervision, an under-voltage reset, a power on reset and extended
enabling features. The watchdog and reset timing can be chosen independently of each
other. The A2C56211 is available in the P-DSO-20-12 power package. It is designed to
supply microprocessor systems under the severe condition of automotive applications
it anduand therefore it is equipped with additional protection against overload, short circ
. overtemperature. Of course the A2C56211 can be used in other applications as well
.The A2C56211 operates in the temperature range of Tj = – 40 to 150C
|
