توضیحات

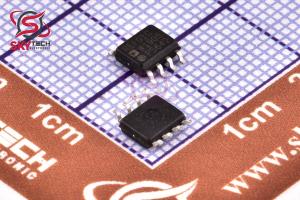

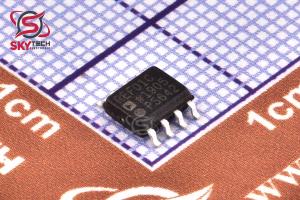

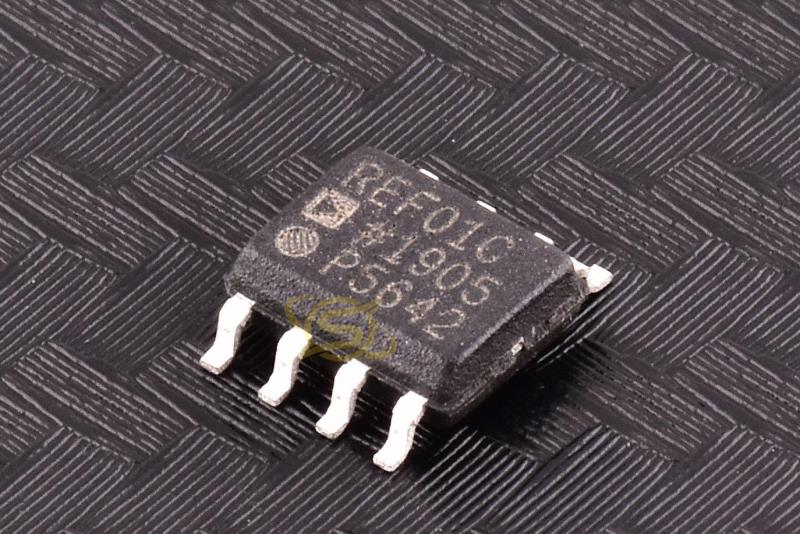

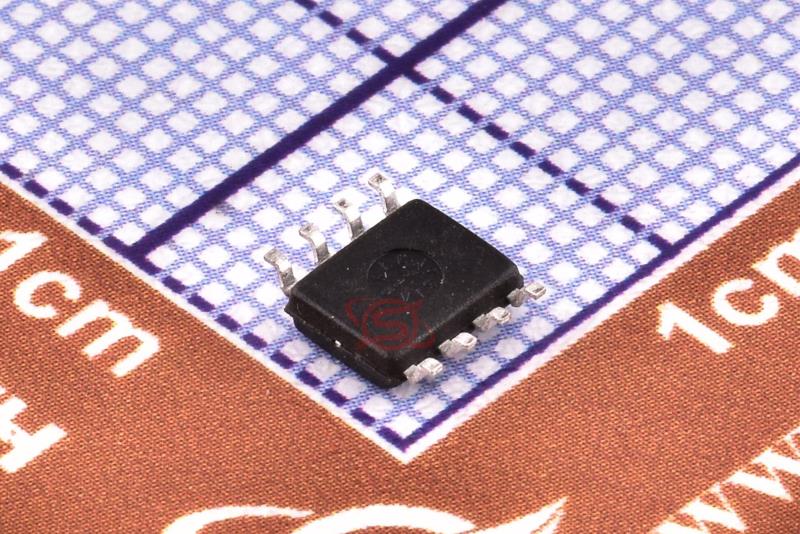

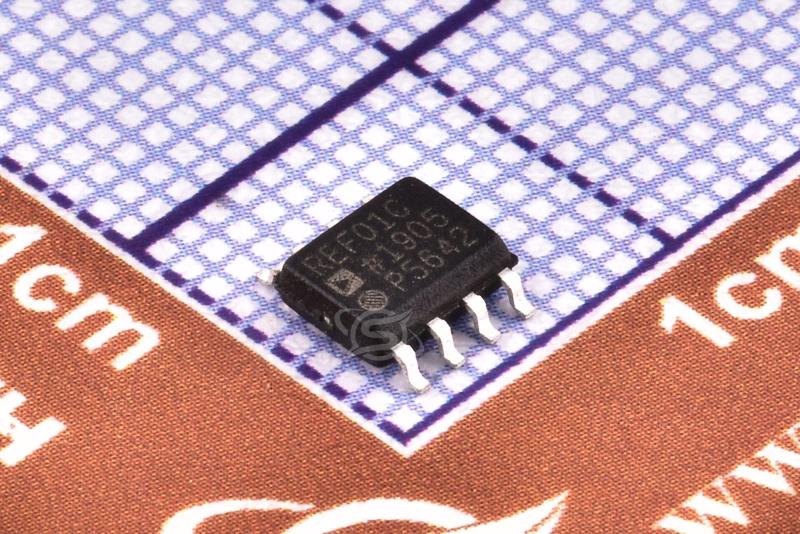

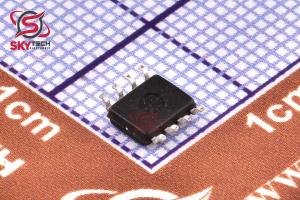

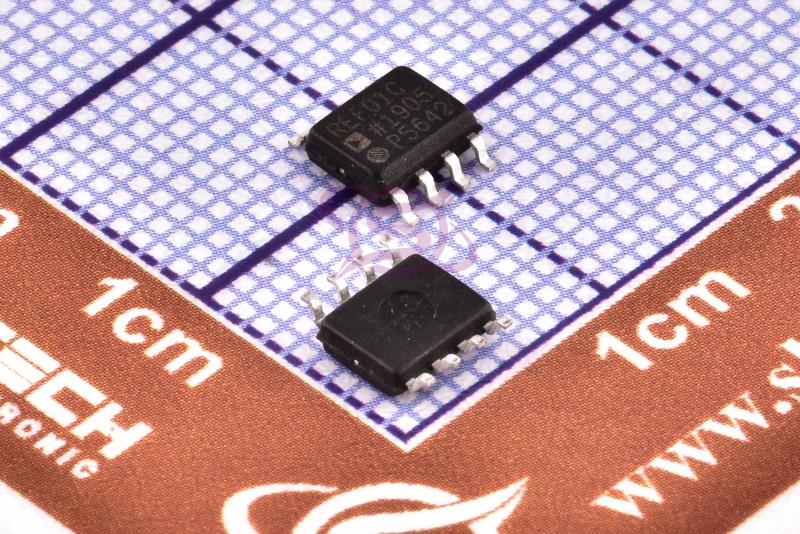

اين آي سي ها از پرکاربردترين قطعات الکترونيک مي باشند و به منظور استفاده به عنوان تامين کننده هاي منبع تغذيه مدار ها همچنين ولتاژ دقيق مرجع براي مبدل هاي آنالوگ ADC و DAC ها استفاده مي شوند.خروجي ولتاژ اين ايسي 10 ولت با0.3 درصد خطا با پايداري دمايي بسيار دقيق 8.5 ppm / C
مصرف جريان بسيار پايين در حد 1 ميلي امپر
Description
The REF01/REF02/REF03 series of precision voltage references
provide a stable 10.0 V, 5.0 V, or 2.5 V output with minimal change
in response to variations in supply voltage, ambient temperature
or load conditions. The devices are available in 8-lead SOIC, PDIP,
CERDIP, and TO-99 packages, as well as 20-terminal LCC
packages (883 only), furthering the usability of the devices in
both standard and high stress applications.
With an external buffer and a simple resistor network, the
TEMP terminal can be used for temperature sensing and
approximation. A TRIM terminal is also provided on the
device for fine adjustment of the output voltage.
The small footprint, wide supply range, and application
versatility make the REF01/REF02/REF03 series of references
ideal for general-purpose and space-constrained applications.
*High output accuracy
-REF01: 10.0 V, ±0.3% maximum
-REF02: 5.0 V, ±0.3% maximum
-REF03: 2.5 V, ±0.6% maximum
*Adjustable output: ± 3% minimum
*Excellent temperature stability
-REF01: 8.5 ppm/°C maximum
-REF02: 8.5 ppm/°C maximum
-REF03: 50 ppm/°C maximum
*Low noise
-REF01: 30 µV p-p typical
-REF02: 15 µV p-p typical
-REF03: 6 µV p-p typical
*High supply voltage range: up to 36 V maximum
*Low supply current: 1.4 mA maximum
*High load-driving capability: 10 mA maximum
*Temperature output function
-APPLICATIONS
*Precision data systems
*High resolution converters
*Industrial process control systems
*Precision instruments
*Military and aerospace applications
|
