توضیحات
ميکروکنترلر نوعي ريزپردازنده است که داراي حافظه RAM ROM، تايمر، پورت‌هاي ورودي و خروجي (I/O) و درگاه ترتيبي (Serial Port پورت سريال)، درون خود تراشه است، و مي‌تواند به تنهايي ابزارهاي ديگر را کنترل کند. به عبارت ديگر يک ميکروکنترلر، مدار مجتمع کوچکي است که از يک CPU کوچک و اجزاي ديگري مانند تايمر، درگاه‌هاي ورودي و خروجي آنالوگ و ديجيتال و حافظه تشکيل شده‌است.
در واقع يک ريزپردازنده درون ميکروکنترولر قرار گرفته‌است که با استفاده از آن مي‌تواند محاسبات منطقي و حسابي را انجام دهد.
وجود RAM و ROM و پورت‌هاي I/O در ميکروکنترلرها آن‌ها را يک انتخاب ايده ال براي کاربردهايي مي‌کند که قيمت و اندازه در آن‌ها مهم است. در بسياري از کاربردها مثل کنترل از راه دور تلويزيون نيازي به محاسبات سنگين وجود ندارد. در اين گونه موارد و بسياري ديگر از کاربردها فضاي مورد استفاده توان مصرفي و قيمت هر واحد مهم تر از قدرت محاسبات است.
اين ميکروکنترلر بسيار پر مصرف 32 بيتي ميباشد و کلاک و توان پردازشي بالايي دارد.
Description
Low power

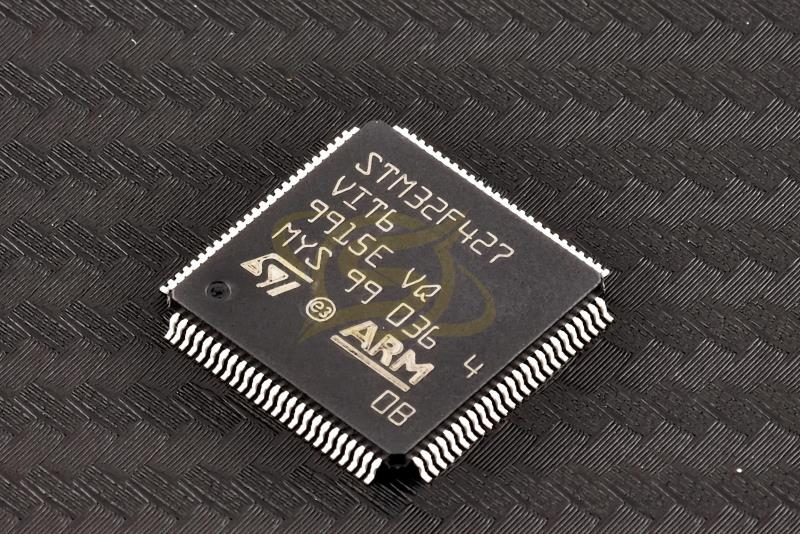

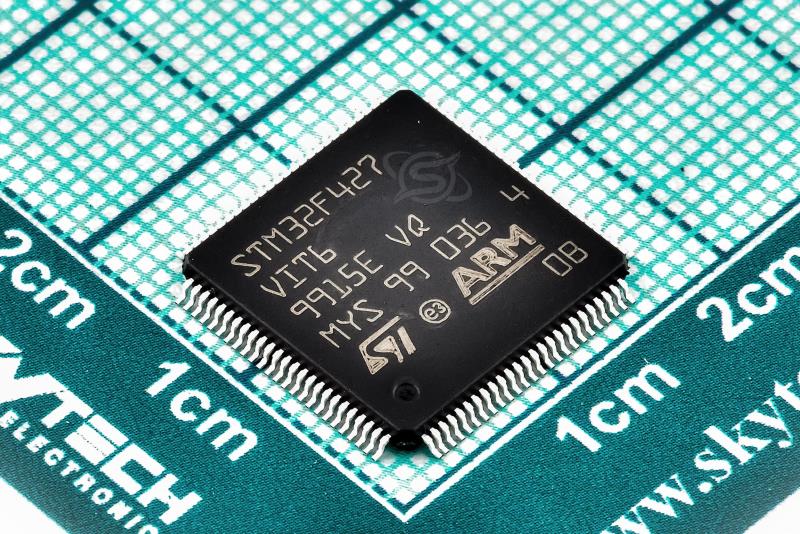

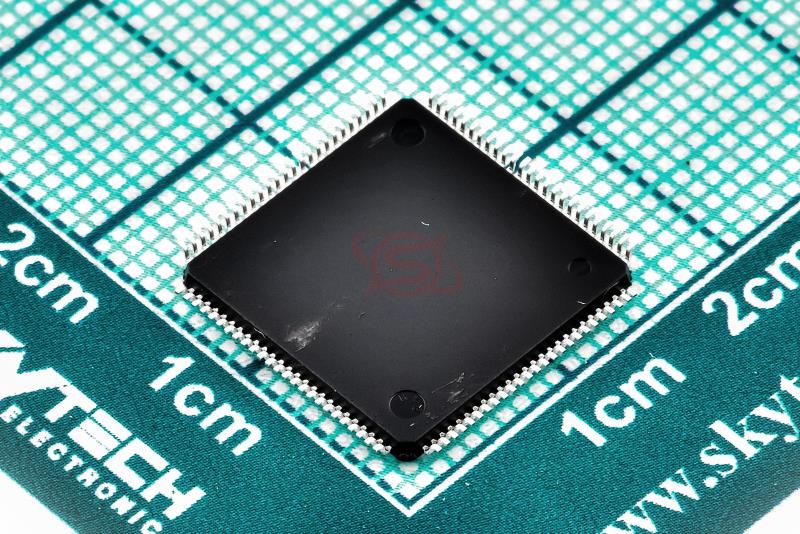

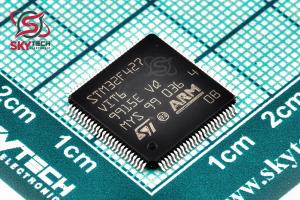

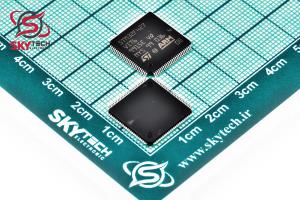

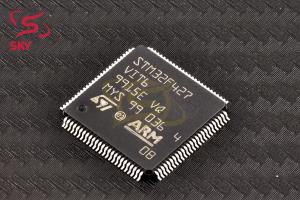

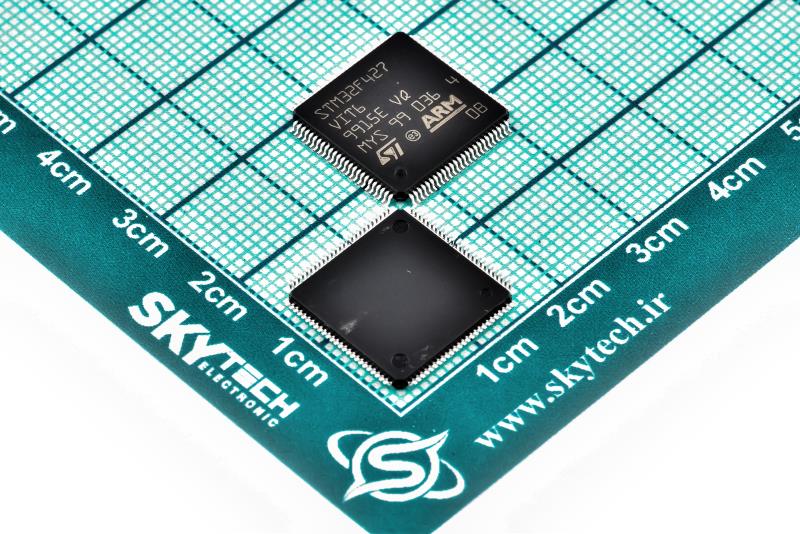

The STM32F427xx and STM32F429xx devices are based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 180 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all Arm® single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.
The STM32F427xx and STM32F429xx devices incorporate high-speed embedded memories (Flash memory up to 2 Mbyte, up to 256 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.
All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers. They also feature standard and advanced communication interfaces.
KEY FEATURES
Core: Arm® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from Flash memory, frequency up to 180 MHz, MPU, 225 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
Memories
Up to 2 MB of Flash memory organized into two banks allowing read-while-write
Up to 256+4 KB of SRAM including 64-KB of CCM (core coupled memory) data RAM
Flexible external memory controller with up to 32-bit data bus: SRAM, PSRAM, SDRAM/LPSDR SDRAM, Compact Flash/NOR/NAND memories
LCD parallel interface, 8080/6800 modes
LCD-TFT controller with fully programmable resolution (total width up to 4096 pixels, total height up to 2048 lines and pixel clock up to 83 MHz)
Chrom-ART Accelerator™ for enhanced graphic content creation (DMA2D)
Clock, reset and supply management
1.7 V to 3.6 V application supply and I/Os
POR, PDR, PVD and BOR
4-to-26 MHz crystal oscillator
Internal 16 MHz factory-trimmed RC (1% accuracy)
32 kHz oscillator for RTC with calibration
Internal 32 kHz RC with calibration
Sleep, Stop and Standby modes
VBAT supply for RTC, 20×32 bit backup registers + optional 4 KB backup SRAM
3×12-bit, 2.4 MSPS ADC: up to 24 channels and 7.2 MSPS in triple interleaved mode
2×12-bit D/A converters
General-purpose DMA: 16-stream DMA controller with FIFOs and burst support
Up to 17 timers: up to twelve 16-bit and two 32-bit timers up to 180 MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
Debug mode
SWD & JTAG interfaces
Cortex-M4 Trace Macrocell™
Up to 168 I/O ports with interrupt capability
Up to 164 fast I/Os up to 90 MHz
Up to 166 5 V-tolerant I/Os
Up to 21 communication interfaces
Up to 3 × I2C interfaces (SMBus/PMBus)
Up to 4 USARTs/4 UARTs (11.25 Mbit/s, ISO7816 interface, LIN, IrDA, modem control)
Up to 6 SPIs (45 Mbits/s), 2 with muxed full-duplex I2S for audio class accuracy via internal audio PLL or external clock
1 x SAI (serial audio interface)
2 × CAN (2.0B Active) and SDIO interface
Advanced connectivity
USB 2.0 full-speed device/host/OTG controller with on-chip PHY
USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY and ULPI
10/100 Ethernet MAC with dedicated DMA: supports IEEE 1588v2 hardware, MII/RMII
8- to 14-bit parallel camera interface up to 54 Mbytes/s
True random number generator
CRC calculation unit
RTC: subsecond accuracy, hardware calendar
96-bit unique ID
|
