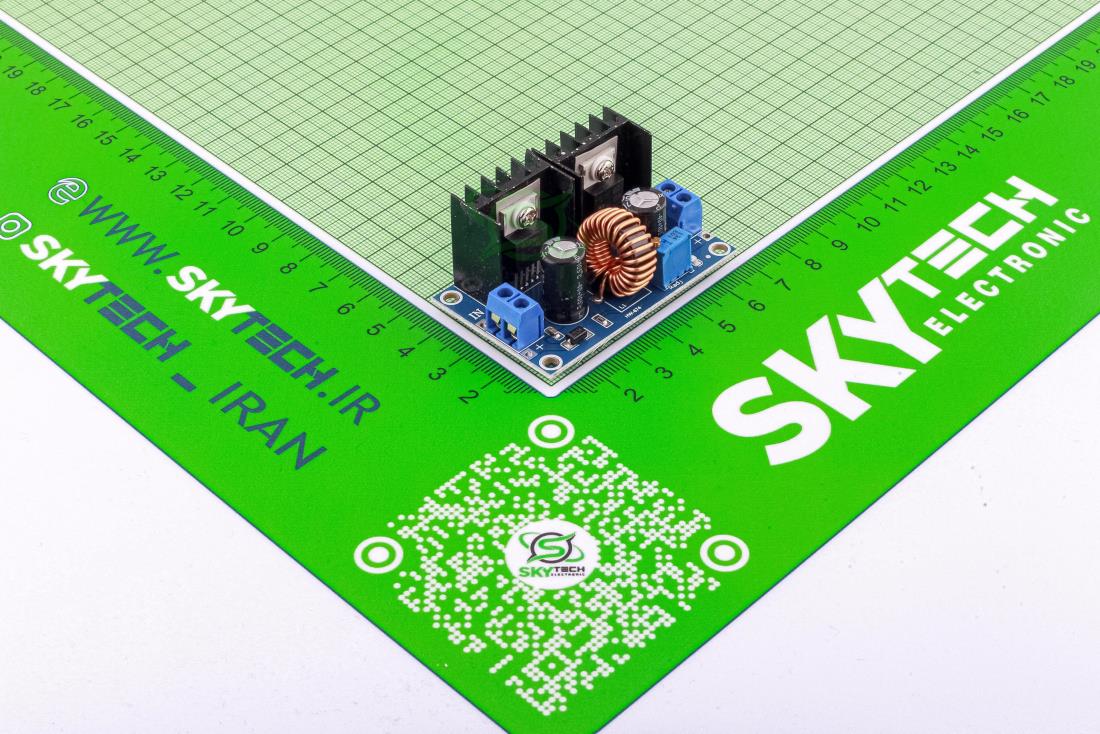

ماژول کاهنده ی ولتاژ
XL4016E MODULE YH11060D
DC voltage regulator PWM modulation Buck
کیفیت: ORIGINAL(distributor) پکیج:
قیمت تک فروشی 1,923,213 ریال
قیمت عمده 1,847,320 ریال (10 به بالا)
قیمت ویژه 1,819,999 ریال (100 به بالا)
قیمت فوق العاده1,806,338 ریال (1000 به بالا)
![SKYTECH](bootstrap/img/Icon/tether.png) قیمت تک فروشی 3.023 تتر با تخفیف
13.8213.0912.8312.7
|
توضیحات
ماژول رگولاتور کاهنده ولتاژ DC
مشخصات :
ولتاژ ورودي :4 تا 38 ولت
ولتاژ خروجي : 1.25 تا 36 ولت
ماکزيمم جريان خروجي 8 امپر( با فن و خنک سازي، براي استفاده هاي طولاني جريان بالاي 5 امپر توصيه نميشود)
ماکزيمم توان : 200 وات
درصد بازدهي : 95 درصد
فرکانس عملياتي :180 کيلوهرتز
داراي محافظ اضافه جريان، اضافه دما ، و اتصال کوتاه
موارد کاربرد:
سيستم صوتي و نمايشگر هاي led خودرو، راه اندازي موتور ها و...
Description
Description:
Product name: DC voltage regulator
Voltage regulating mode: PWM modulation
Input voltage: DC 4-38V
Output voltage: DC 1.25-36V
Maximum current: 8A(please add fan and make current less than 5A for a long term use)
Maximum power: 200W
Conversion efficiency: 95%
Switching frequency: 180KHz
Working Temperature: -45~+85?
Size: 6x3.7cm/2.36x1.46inch
Features:
The voltage regulator has excellent linearity regulation and load regulation
With multiple protection: over-current protection, over-temperature protection and short circuit protection, etc
Wide Application:
Car audio, radio, navigator, monitor, LED car display, air conditioner, interphone, motors etc
Note:
Please make sure there is a 2V voltage difference between input voltage and output voltage
The maximum output current can reach 8A; For long time working please make sure the current is less than 5A.
This is not a step up module, but a step down module
|
