توضیحات
ماژول باک بوستر ولتاژ DC 8-60V to 10-120V 15A يک ماژول کاملا ديحيتال با ابعاد کوچک ، توان و باردهي بالا
به علت وجود ميکروکنترلر و فيدبک گرفتن از ولتاژ خروجي عملکردي کاملا پايدار و ايمني را براي ما به ارمغان مي اورد.
از ديگر قابليت هاي اين ماژول ميتوان به حافظه دار بودن ان براي به ياد اوري تنظيمات قبلي اشاره کرد.
مشخصات:
ولتاژ ورودي : 8 تا 60 ولت
جريان خروجي : 0 تا 15 امپر
ولتاژ خروجي : 10 تا 120 ولت
درصد بازدهي : 85 درصد
فرکانس کاري 150 کيلئوهرتز
محافظ اتصال کوتاه
مد کنترل ديجيتالي
و ...
Description

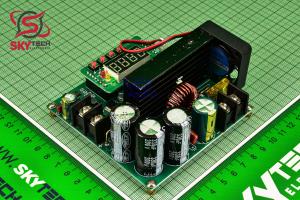

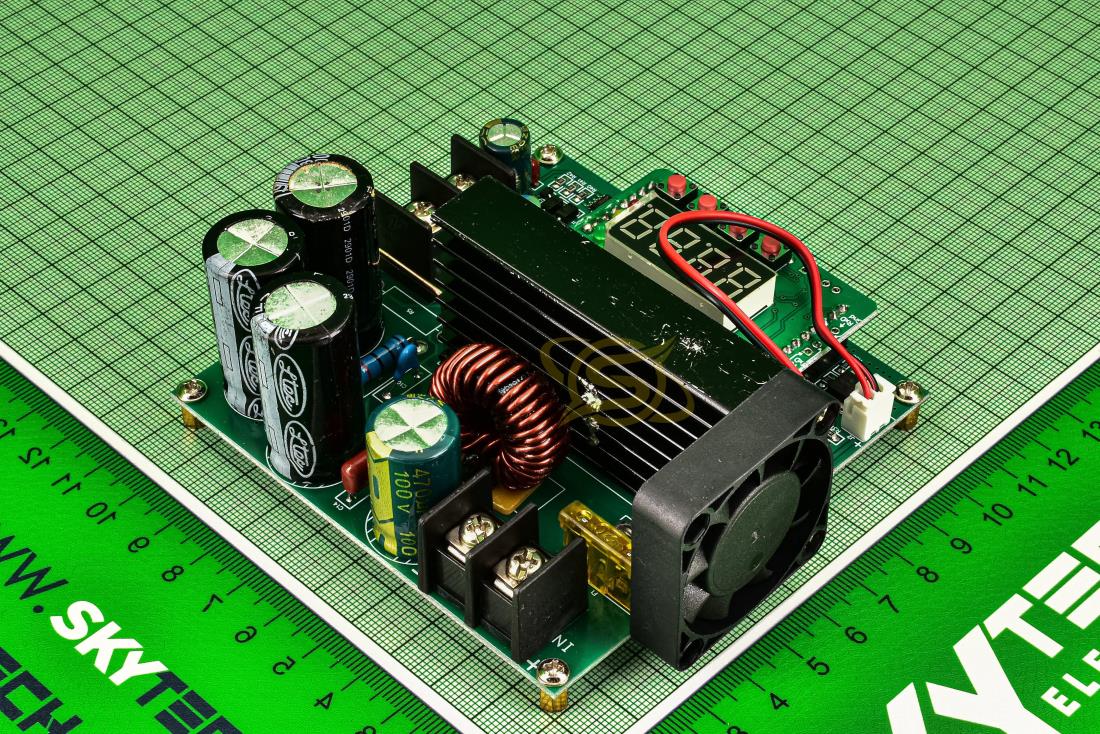

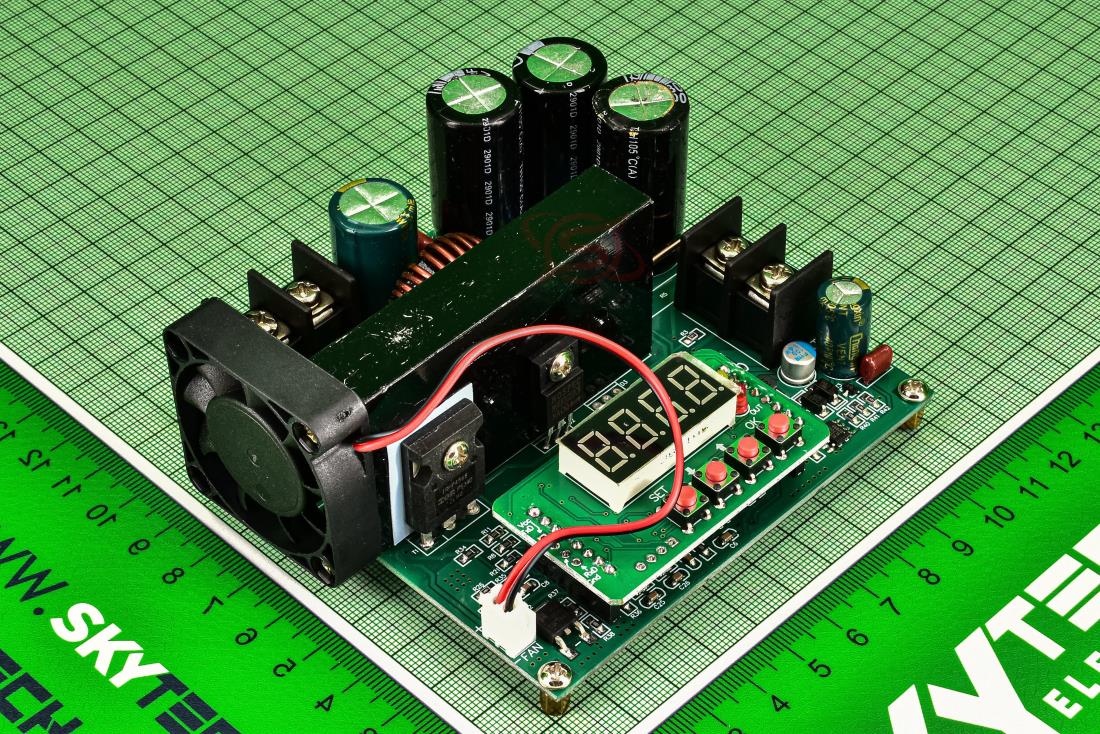

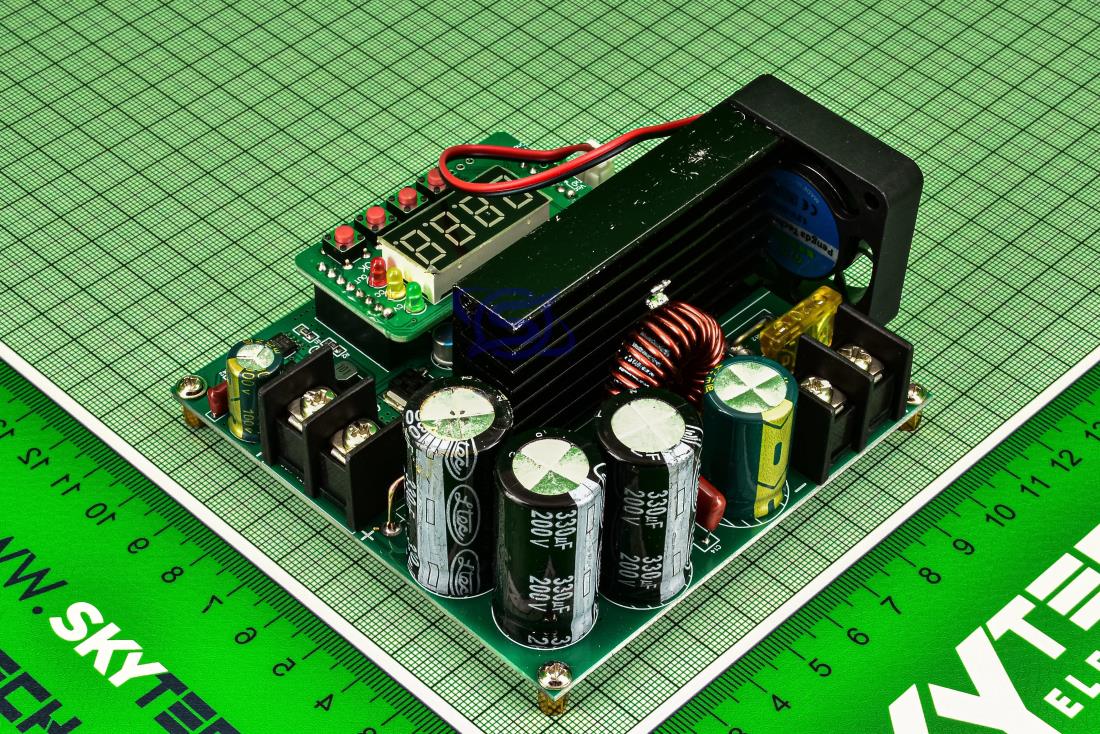

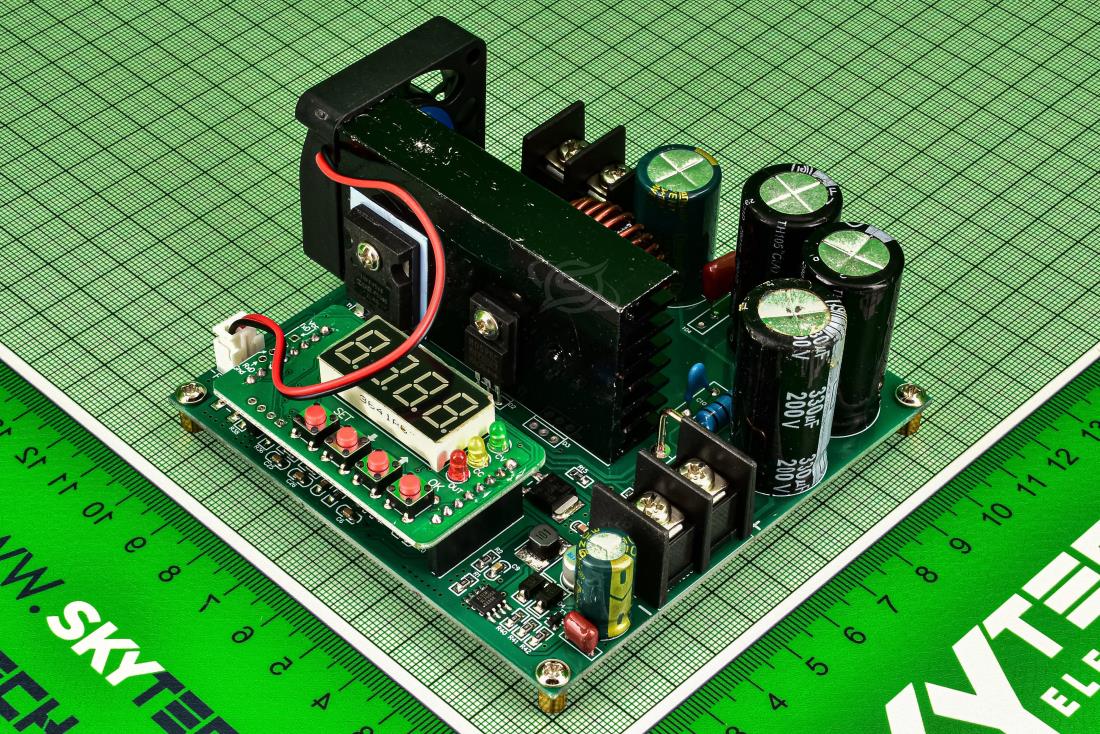

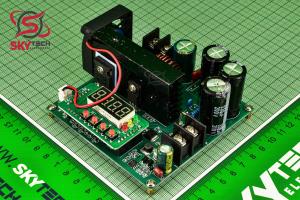

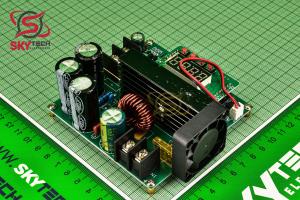

Numerical Control Regulator DC 8-60V to 10-120V 15A Boost Converter,
Description:
900-0 DC-DC boost module is a fully digital display NC boost module, small size, high power, high efficiency, stable. Joined the high-speed precision measurement and calculation, it can load regulation the output voltage and current size, built- In the same time. This machine has an automatic output after power on, auto rotate function parameters can be turned on or off as needed use
1, the use of advanced microprocessors, can accurate regulated output voltage and current;
2, with memory save function, can store 10 groups of parameters, and can be free stored, transferred out;
3, high-quality power devices, with the transition of precision op amps CV and CC loop configuration,
4, with an input voltage protection;
5, having a constant voltage, constant current function;
6, using 4 high brightness LED, can display the output voltage, current, power and capacity and other parameters in real time;
7, automatic / manual switching display voltage, current, power, capacity and other parameters;
8, with the output OUT, constant voltage CV, constant current CC indicator, you can view real-time job status;
9, can be set whether to automatically output after power;
10, can be a key to save the voltage and current values ??for the current setting
The modular nature 8V ~ 60V
Input Voltage 8V ~ 60V
Output Current 0 ~ 15A
Output voltage 10V ~ 120V
Conversion efficiency 85%
Frequency 150KHz
Short circuit protection constant Current
Operating temperature -40 ? ~ + 85 ?
Control method Digital control + LED display
The voltage regulator / display
Resolution
<100V / 0.01V;> 100V / 0.1V
The minimum resolution of power
Display
0.001W
The current regulator / display
Resolution
<10A / 0.01A;> 10A / 0.1A
The minimum resolution of capacity 0.001AH
Output Ripple ? 50mV
Weight 243g
Dimensions (W * H * D) 110 × 96 × 46 (mm)
|
