Description

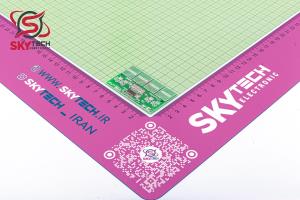

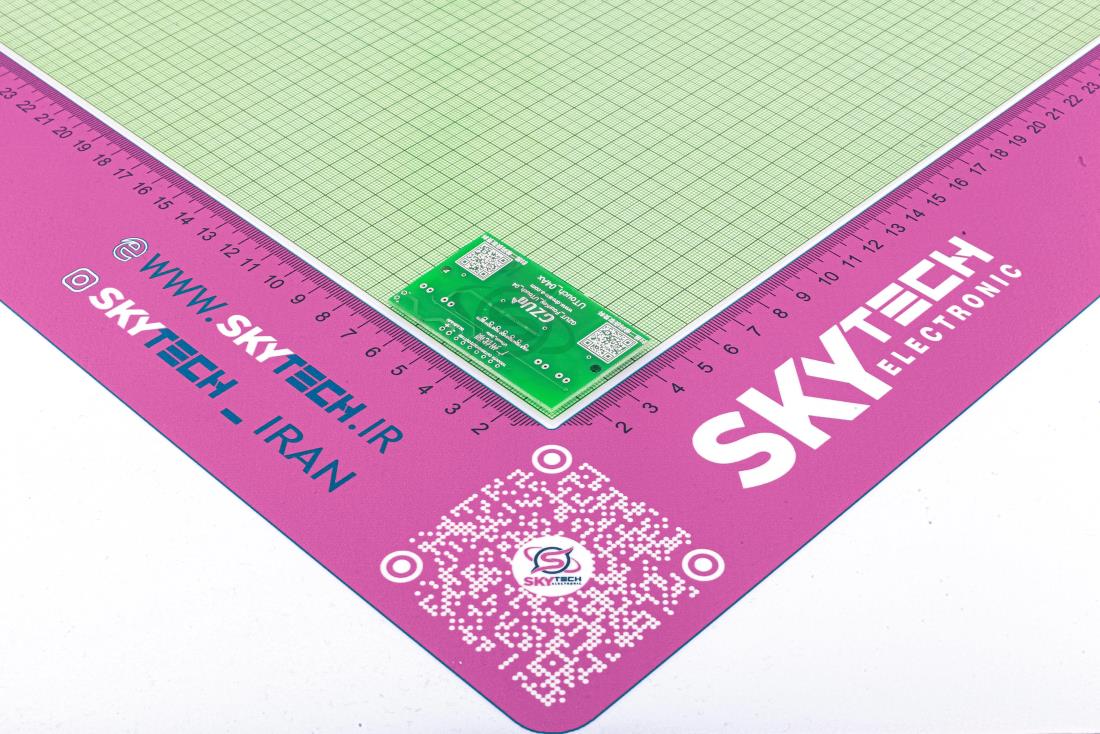

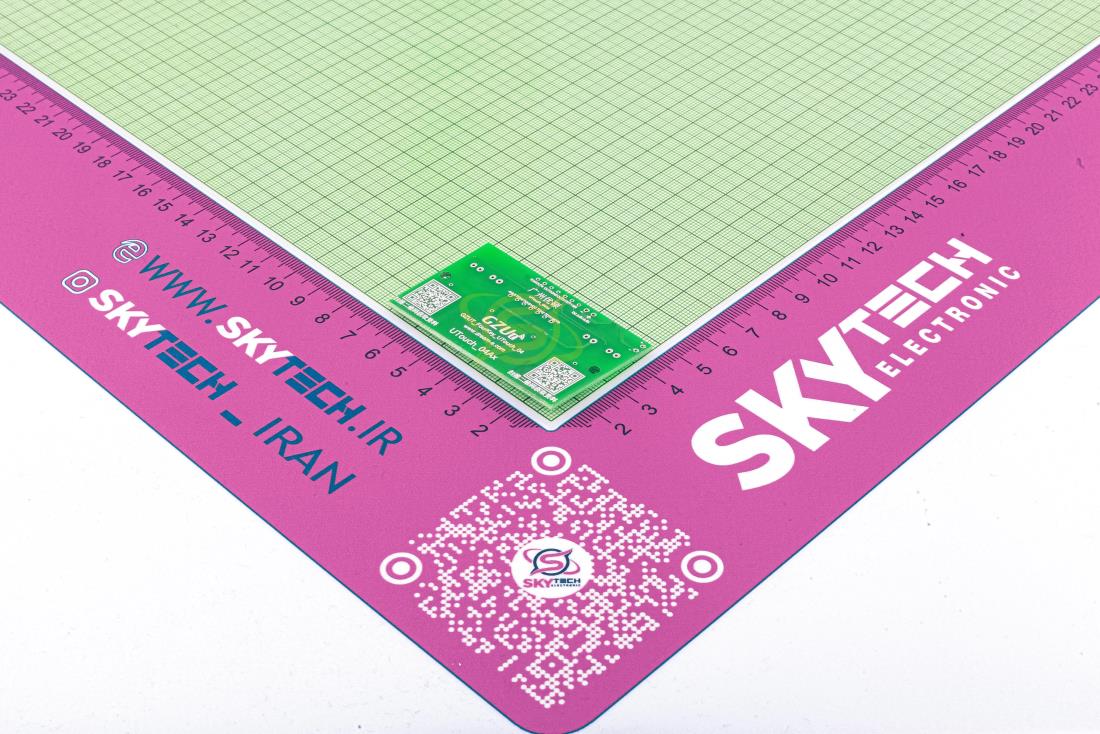

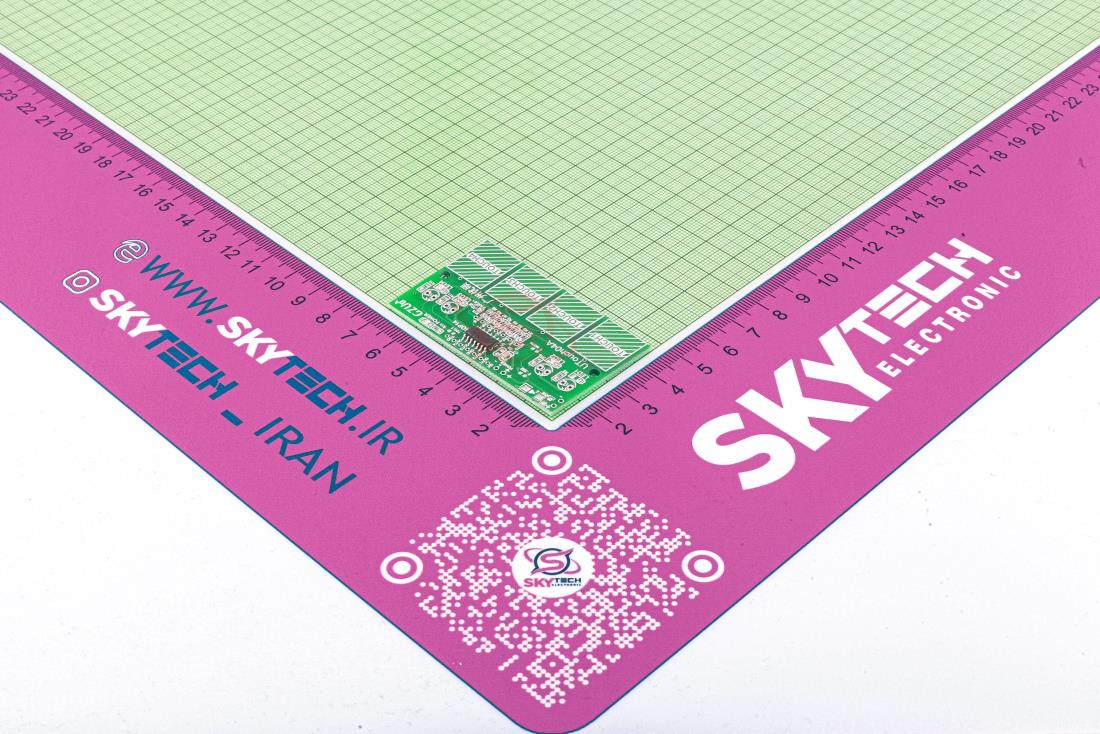

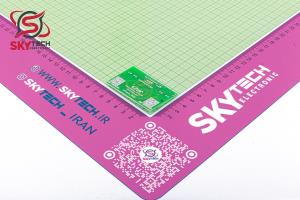

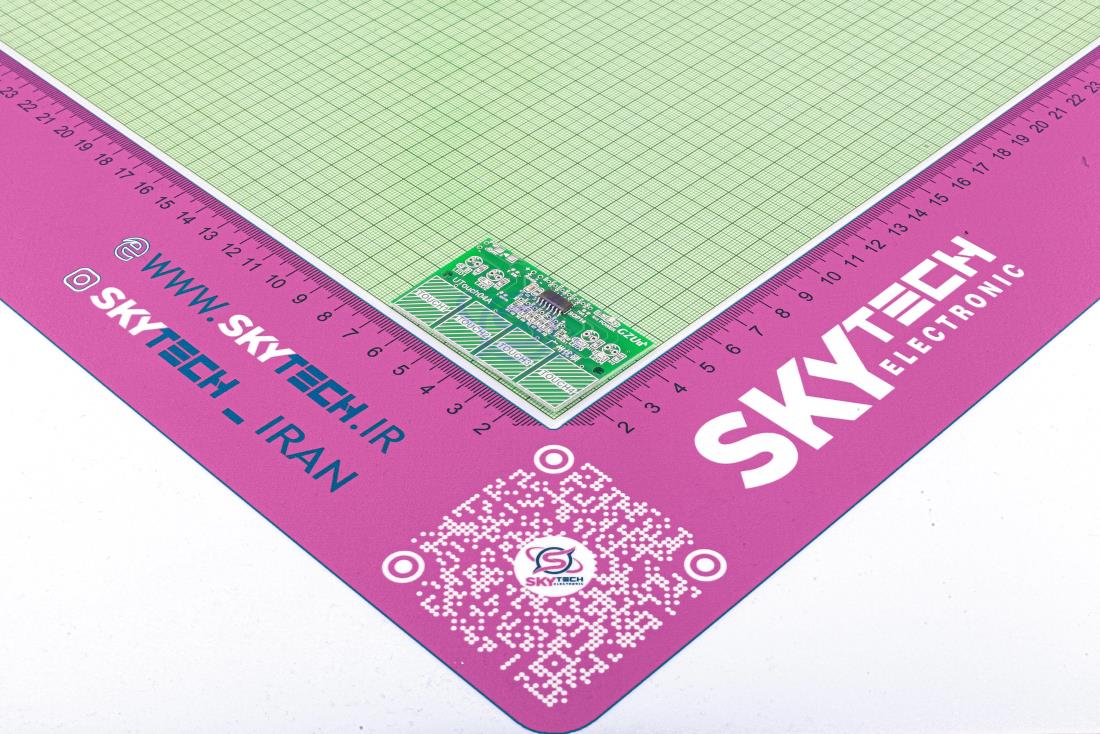

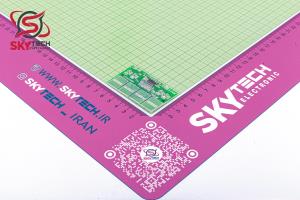

Based on the touch sensor chip UTouch04A, the module is capacitive touch switch module. By default setting, the module is in direct mode which tells that normally the OUT pin of the module outputs low and it will output high only when you touch the appropriate location. You can set the working mode. It be installed on various surfaces, such as plastic, glass and non-metallic materials.
Features:
- Touch Channel: 4-Channel
- Do not touch within 0.5 seconds after power up
- Funny and easy to use, can replace the traditional buttons;
- Low power consumption;
- High sensitivity;
- Working voltage: 2.5~5.2V DC;
- Onboard output indicator
- OUT1, OUT2, OUT3, OUT4 pads: output logic level
- TCH1, TCH2, TCH3, TCH4 pads: you can connect a external copper sheet to it and touch the sheet.
- Great for DIY, smart home project
General
Model N/A
Quantity 1Piece
Form Color Green
Material PCB
Specification
Application Great for DIY, smart home project
Working Voltage 2.5-5.2V
English Manual / Spec Yes
Download Link
Dimensions & Weight
Dimensions 2.4 in x 1.42 in x 0.12 in (6.1 cm x 3.6 cm x 0.3 cm)
Weight 0.26 oz (7.5 g)
|
