توضیحات
المان سرد کننده داراي کاربرد بسيار زيادي در صنايع گوناگون است که از جمله موارد استفاده آن مي توان عناوين زير را ذکر نمود:
در اتومبيل و خانه براي ساخت يخچال 12 ولتي ، کلمن ، آب سرد کن ، کولر و ...
در امور پزشکي ، آزمايشگاهي ، داروئي و لابراتوارها و ...
در صنايع نظامي ، فضائي ، هواپيمائي و ...
در صنايع الکترونيک و کامپيوتر و مخابرات ... بعنوان سرد کننده قطعات و هيت سينکهاي قطعات مثل ترانزيستورها و ديودها و آي سي هاي پاور و قدرت و CPU کامپيوتر و ...
براي استفاده عملي از اين قطعه ، نياز به لوازم جنبي زير خواهيد داشت :
هيت سينک بزرگ مخصوص براي اتصال به قسمت داغ جهت دفع حرارت
فن دور بالا و مخصوص براي اتصال به هيت سينک جهت خنک کردن آن
قطعه آلومينيمي واسط مخصوص براي اتصال به قسمت سرد جهت انتقال سرما
خمير سيليکوني مرغوب جهت انتقال هر چه بيشتر سرما و گرما از TEC
Description

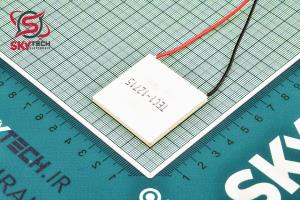

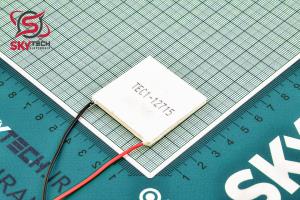

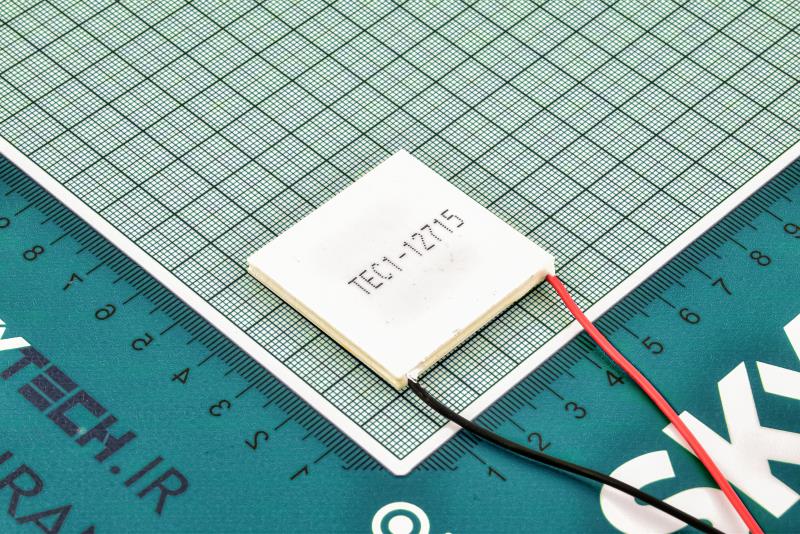

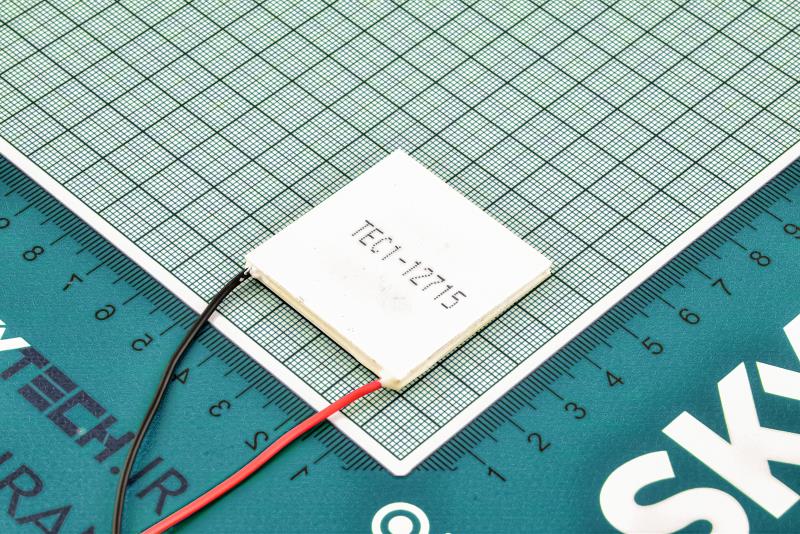

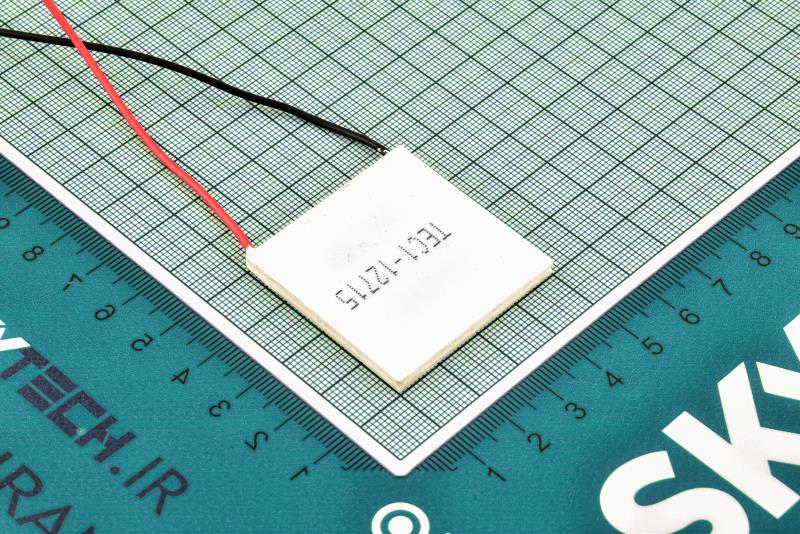

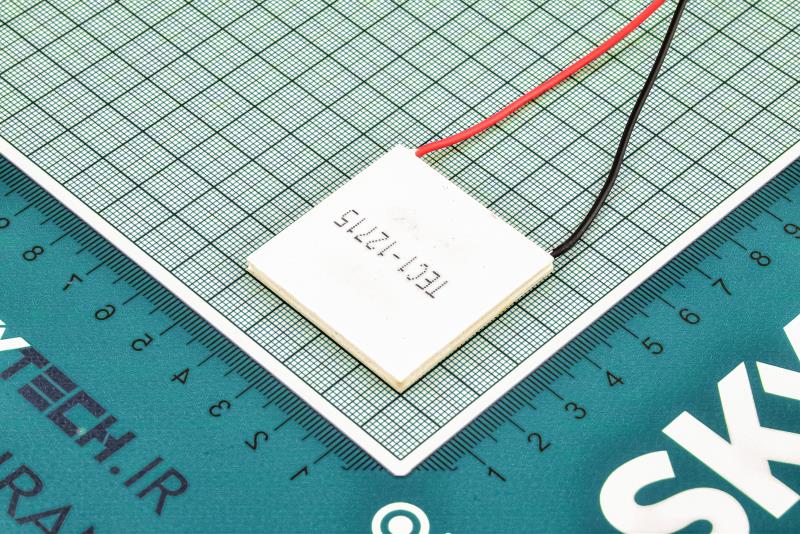

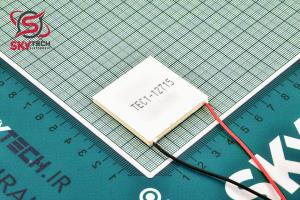

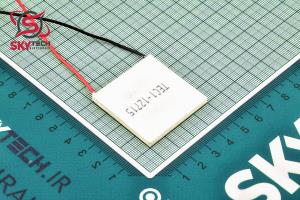

The TEC1-12715 40x40mm Thermoelectric Cooler 15A Peltier Module is the simple application of Peltier Thermoelectric Effect. The module features 127 semiconductor couples in the area of 40mmx40mm.
Thermoelectric coolers also are known as TEC or Peltier Module create a temperature differential on each side. One side gets hot and the other side gets cool. Therefore, they can be used to either warm something up or cool something down, depending on which side you use. You can also take advantage of a temperature differential to generate electricity.
This Peltier works very well as long as you remove the heat from the hot side. After turning on the device, the hot side will heat quickly, the cold side will cool quickly. If you do not remove the heat from the hot side (with a heat sink or other device), the Peltier will quickly reach stasis and do nothing. We recommend using an old computer CPU heatsink or another block of metal to pull heat from the hot side. We were able to use a computer power supply and CPU heatsink to make the cold side so uncomfortable we could not hold our finger to it.
A thermoelectric cooling (TEC) module is a semiconductor-based electronic component that functions as a small heat pump. By applying the DC power source to a TEC, heat will be transferred from one side of the module to the other. It creates a cold and hot side. They are widely used in industrial areas, for example, computer CPU, CCDs, portable refrigerators, medical instruments, and so on.
Also Known as Thermoelectric cooling modules, Thermoelectric modules, Peltier modules, Thermoelectric cooling module.
Operating Tips:
Do not exceed Imax or Vmax when operating module.
Please carry out moisture protection options (sealing) in final application use.
Life expectancy: 200,000 hours.
Failure rate based on longtime testings: 0.2%.
feature:
Model number: TEC1-12715
Operating Voltage: 12V
Maximum Voltage- Umax (V) : 15V
Maximum Current- Imax (A) : 15A
Maximum Power : 230 W
Power Cord: 100mm
Quality tested cooling cells.
Solid state, vibration free, noise-free.
Simple to install and operate.
|
