تراشه شارژ باتری

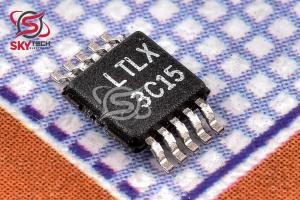

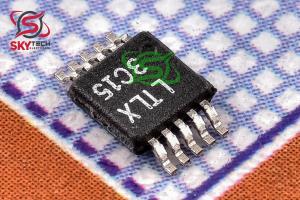

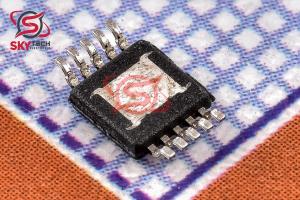

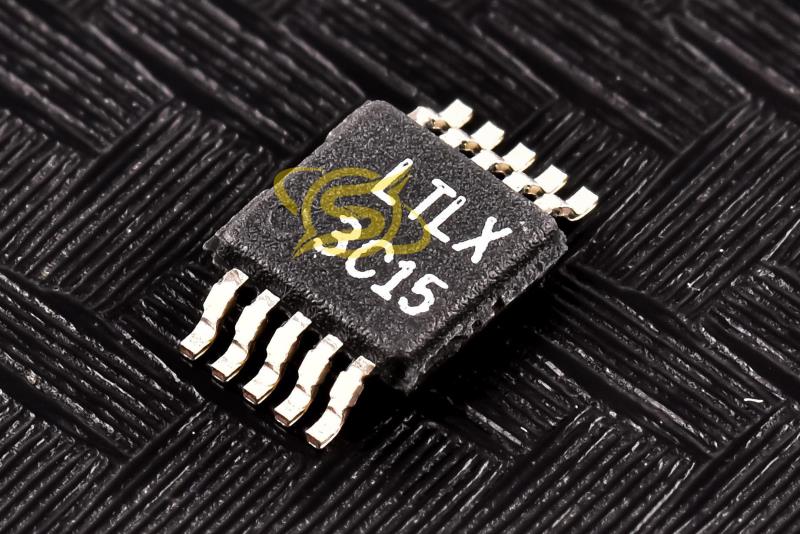

LTC1733EMSE#PBF
Monolithic Linear Lithium-Ion Battery Charger with Thermal Regulation
کیفیت: ORIGINAL(distributor) پکیج: MSOP-10
قیمت تک فروشی 3,366,120 ریال
قیمت عمده 3,206,100 ریال (10 به بالا)
قیمت ویژه 3,142,092 ریال (100 به بالا)
قیمت فوق العاده3,110,088 ریال (1000 به بالا)
 قیمت تک فروشی 3.466 تتر با تخفیف
18.91817.6417.46
|
|
|
نوع محصول |
Battery charging chip |
|
حداکثر دماي کاري |
85 سانتيگراد |
|
حداقل دماي کاري |
-40 سانتيگراد |
|
|
|
توضیحات
LTC®1733 يک شارژر خطي مستقل با جريان ثابت/ولتاژ ثابت براي باتري هاي ليتيوم يون با ماسفت برق روي تراشه است. بازخورد حرارتي داخلي جريان شارژ را براي محدود کردن دماي قالب در طول کارکرد با توان بالا يا شرايط دماي بالاي محيط تنظيم ميکند. اين ويژگي به کاربر اجازه مي دهد تا جريان شارژ بالا را بدون خطر آسيب رساندن به LTC1733 يا محصول دستي برنامه ريزي کند. به دليل ساختار داخلي ماسفت، به مقاومت حسگر جريان خارجي نياز نيست و ديود مسدود کننده مورد نياز نيست. جريان شارژ و زمان شارژ را مي توان به ترتيب با يک مقاومت و خازن به صورت خارجي تنظيم کرد. هنگامي که منبع ورودي (آداپتور ديواري) حذف مي شود، LTC1733 به طور خودکار وارد حالت خواب کم جريان مي شود و جريان تخليه باتري را به کمتر از 5MICRO A کاهش مي دهد.
Description
The LTC®1733 is a standalone constant-current/ constant-voltage linear charger for lithium-ion batteries with an on-chip power MOSFET. Internal thermal feedback regulates the charge current to limit die temperature during high power operation or high ambient temperature conditions. This feature allows the user to program a high charge current without risk of damaging the LTC1733 or the handheld product. No external current sense resistor is needed and no blocking diode is required due to the internal MOSFET architecture. The charge current and charge time can be set externally with a single resistor and capacitor, respectively. When the input supply (wall adapter) is removed, the LTC1733 automatically enters a low current sleep mode, dropping the battery drain current to less than 5MICRO A.
|
