آی سی سوییچ

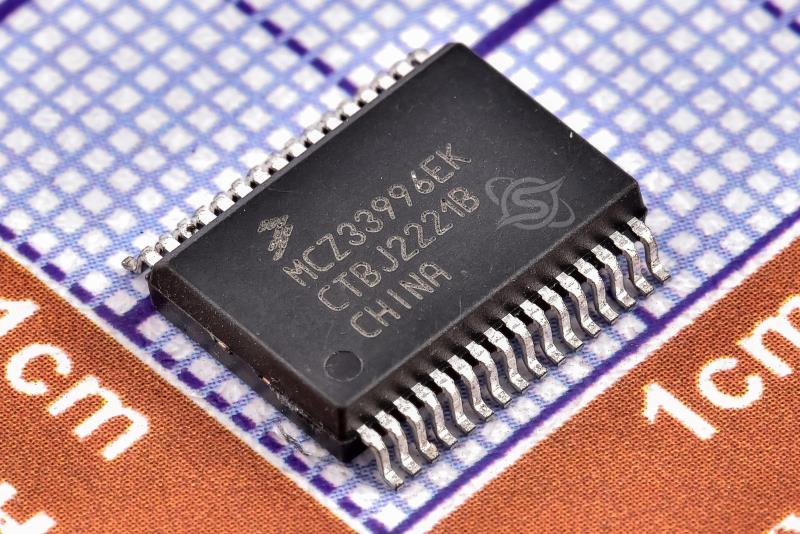

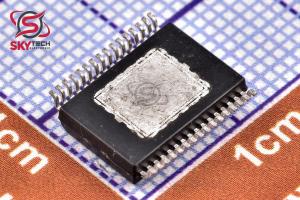

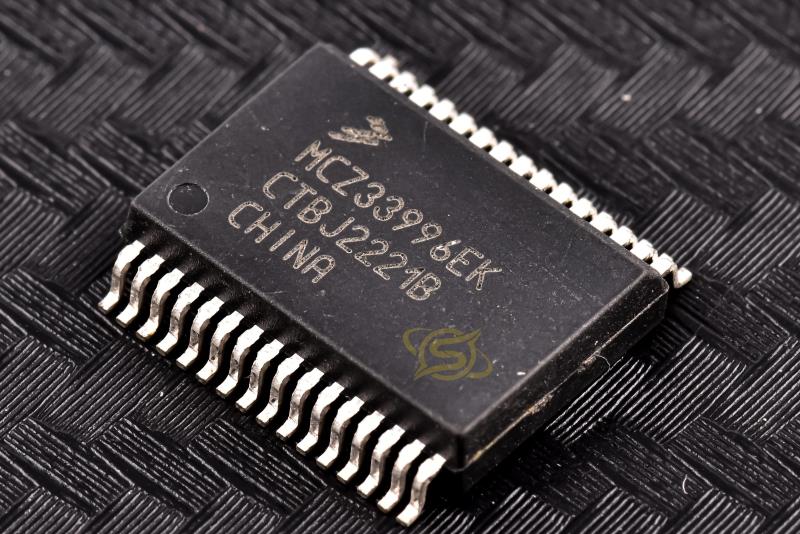

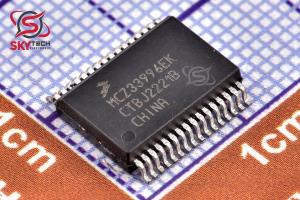

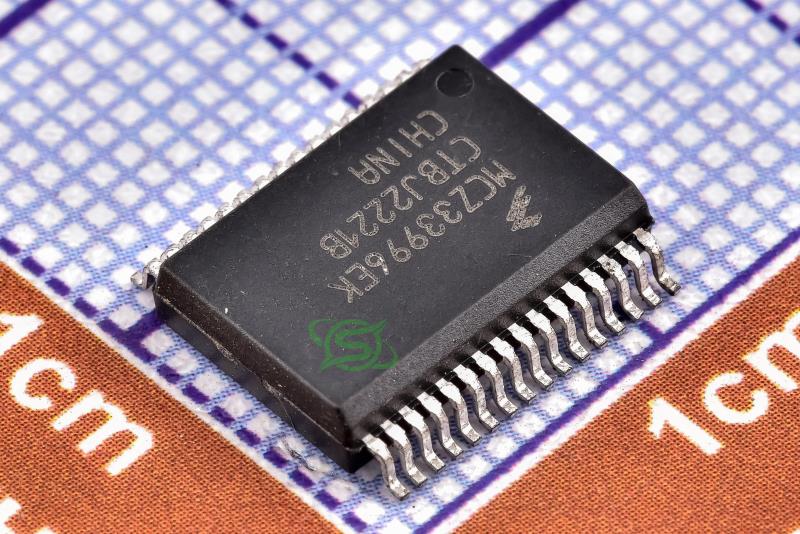

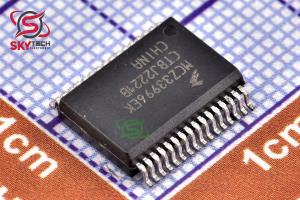

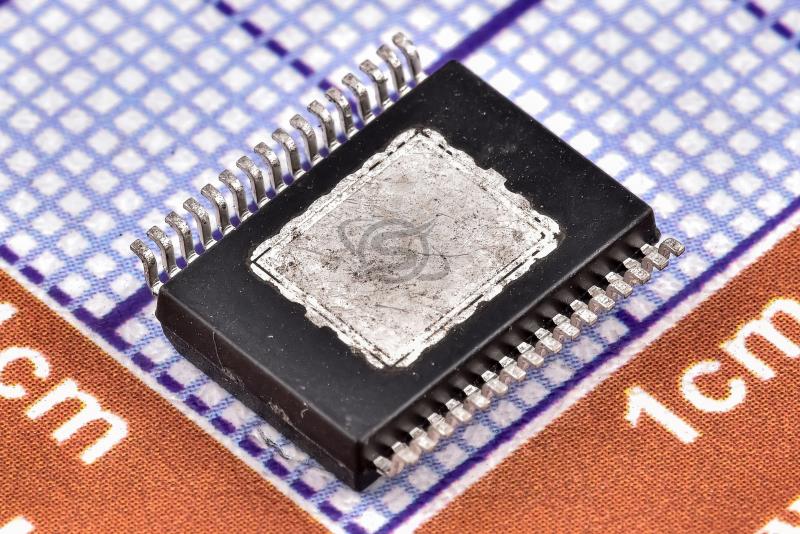

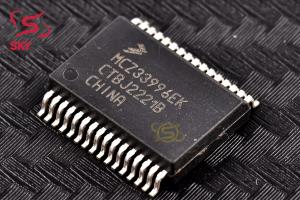

MCZ33996EK
16-output low side switch with a 24-bit serial input control.
کیفیت: ORIGINAL(distributor) پکیج: SOIC-32
قیمت تک فروشی 7,564,400 ریال
قیمت عمده 7,458,000 ریال (10 به بالا)
قیمت ویژه 7,309,040 ریال (100 به بالا)
قیمت فوق العاده7,234,560 ریال (1000 به بالا)
![SKYTECH](bootstrap/img/Icon/tether.png) قیمت تک فروشی 11.132 تتر با تخفیف
67.4566.565.1764.5
|
توضیحات
MCZ33996EK يک ايسي سوييچ با 16 کانال خروجي با 24 بيت ورودي بصورت سريال با پروتکول SPIميباشد.
از ويژگي هاي اين ايسي ميتوان به ولتاژ عملياتي بين 5 تا 27 ولت ، جريان خروجي محدود شده بين 0.9 تا 2.5 آمپر ،کلمپ ولتاژ خروجي تا 50 ولت ،قابليت کنترل خروجي ها بصورت PWM ، محافظ اضافه ولتاژ و ... اشاره کرد.
Description
The 33996 is a 16-output low side switch with a 24-bit serial input
control. It is designed for a variety of applications including inductive,
incandescent, and LED loads. The Serial Peripheral Interface (SPI)
provides both input control and diagnostic readout. A Pulse Width
Modulation (PWM) control input is provided for pulse width
modulation of multiple outputs at the same duty cycle. A dedicated
reset input provides the ability to clear all internal registers and turn
all outputs off.
|
