ماژول بارومتر و قطب نما
GY-652
integrates a measure sensor for air pressure with high precision, low power and high accuracy and a very accurate and reliable magnetic compass.
کیفیت: ORIGINAL(distributor) پکیج:
قیمت تک فروشی 5,664,200 ریال
قیمت عمده 5,557,800 ریال (10 به بالا)
قیمت ویژه 5,447,144 ریال (100 به بالا)
قیمت فوق العاده5,391,816 ریال (1000 به بالا)
![SKYTECH](bootstrap/img/Icon/tether.png) قیمت تک فروشی 8.323 تتر با تخفیف
50.3549.448.4147.92
|
توضیحات
ماژول قطب نما و فشار GY-625
ماژول قطب نما و فشار GY-625 داراي يک سنسور اندازه گيري فشار هوا با دقت بالا, مصرف کم به نام BMP180 و يک قطب نماي بسيار دقيق و قابل اعتماد مغناطيسي به نام HMC598 که دقت حداقل کمتر از 1 درجه را اندازه گيري مي کند. اين ماژول براي استفاده با انواع مختلفي از ميکروکنترلرها با استفاده از ارتباطات از طريق اينترفيس I2C طراحي شده و به همين دليل است که توسط Arduino و بسياري ديگر از کيت هاي توسعه استفاده مي شود.
رنج ميدان قابل اندازه گيري8+- گاوس
حساسيت 230-1370 LSB/gauss
رزولوشن 0.73-4.35mGauss
بيشترين ميدان اعمال شده ممکن 100000 uT
Description

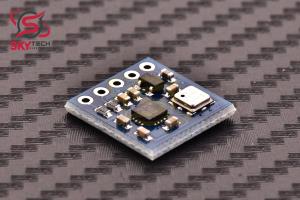

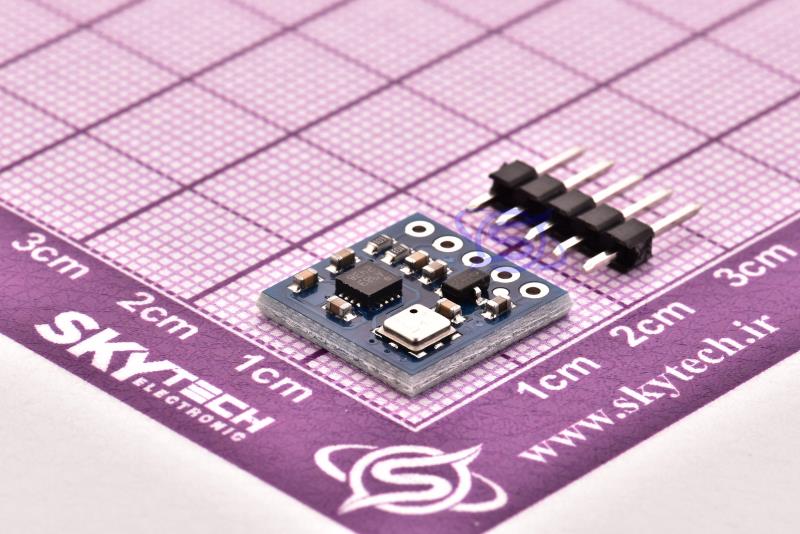

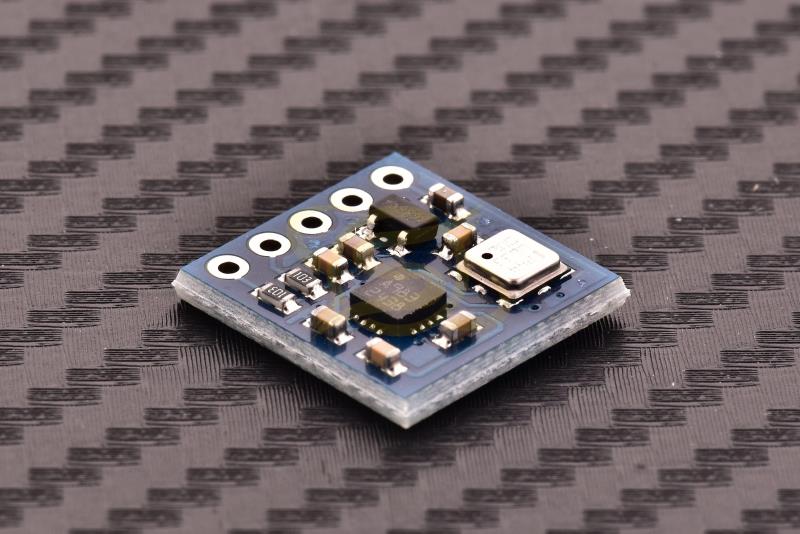

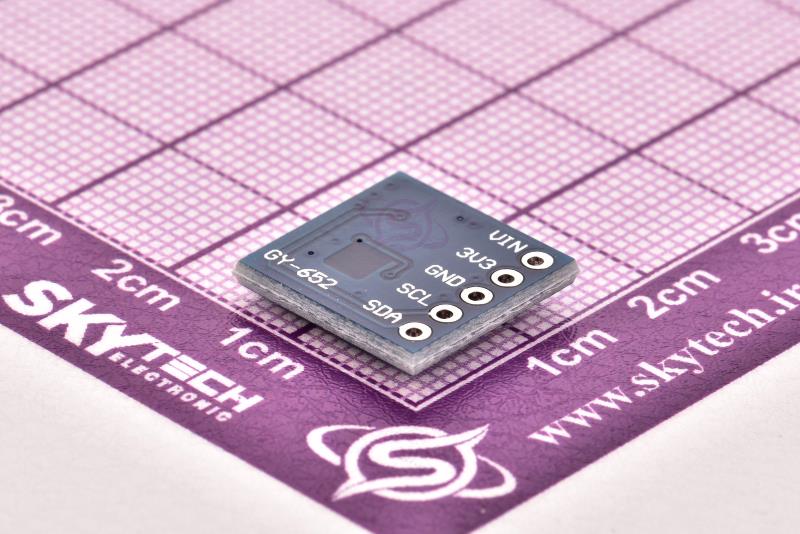

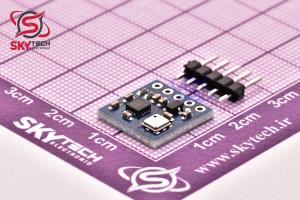

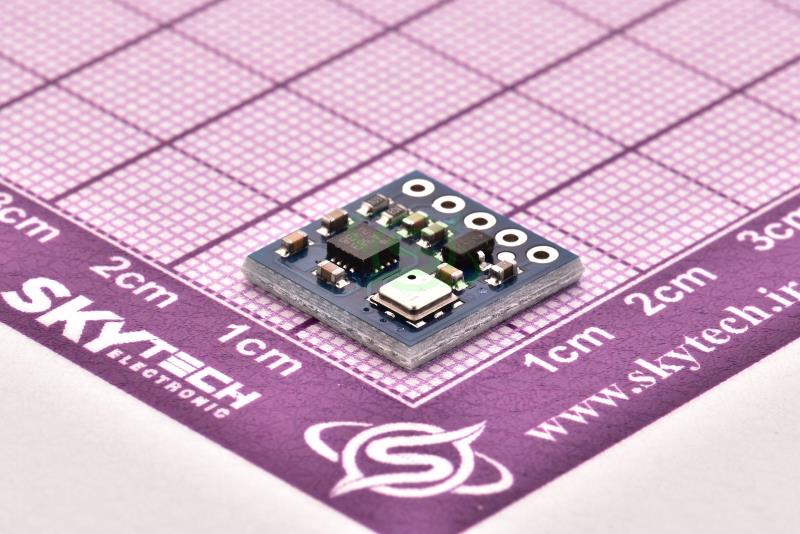

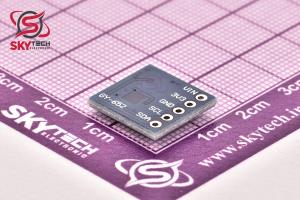

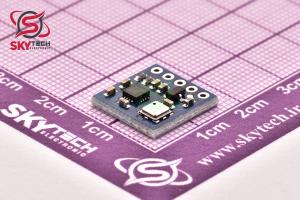

It is a module that integrates a measure sensor for air pressure with high precision, low power and high accuracy and a very accurate and reliable magnetic compass. On board there are, the known pressure sensor Bosch BMP180, which has now become a standard widely used in these specific modules for the extreme small size and high reliability it offers and the famous 3-axis magnetometer manufactured by Honeywell, model HMC598 , which offers an accuracy of no less than 1 ° on the measurement taken. The module is designed for use with a large variety of microcontrollers using communication through the I2C bus, it lends itself therefore to be managed handled by Arduino and many other development kit.
Use chip: HMC5983 + BMP180
Power supply: 3-5v (internal low dropout regulator)
Communication modes: standard IIC communication protocol)
Pressure Range: 300-1100hPa
Chip 12bit AD converter, 16-bit data output
Machine welding process to ensure quality
Size: 13mm * 14mm (standard pitch 2.54mm )
|
