گیرنده و فرستنده BUS

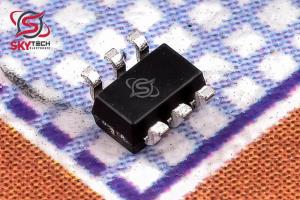

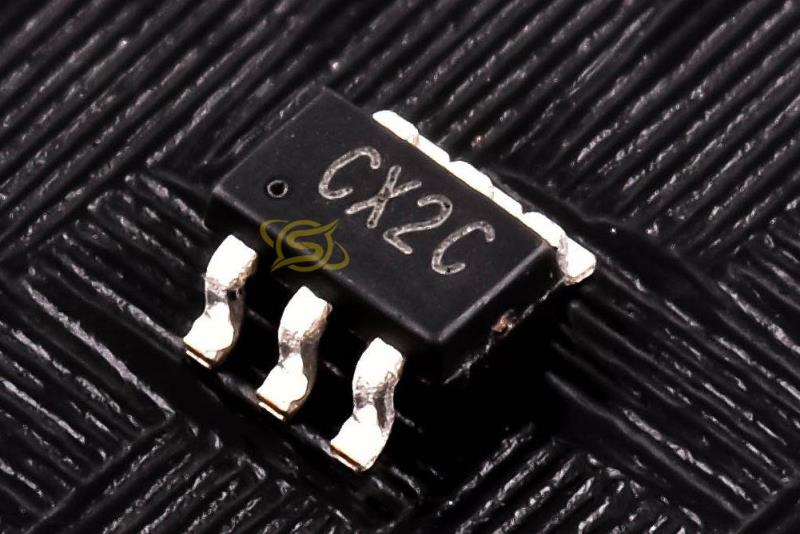

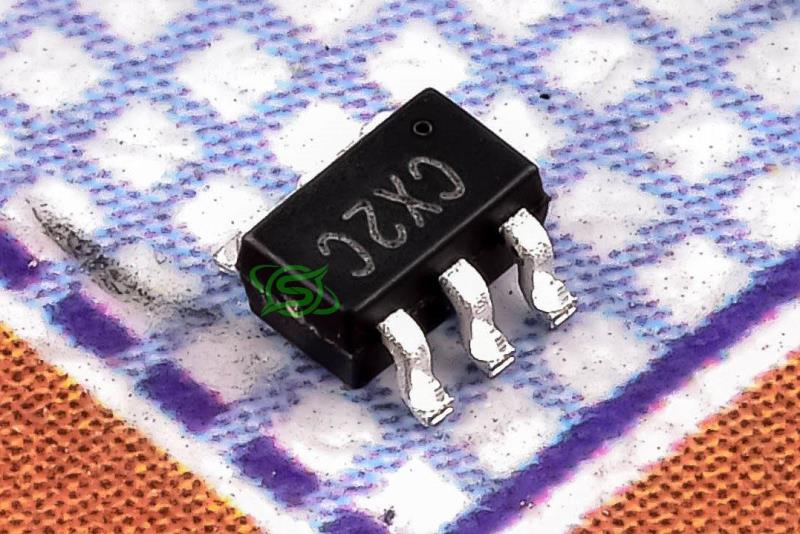

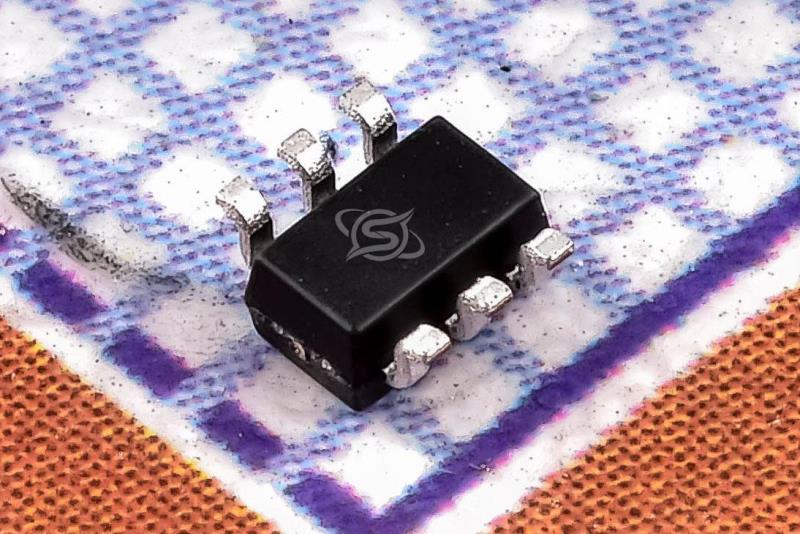

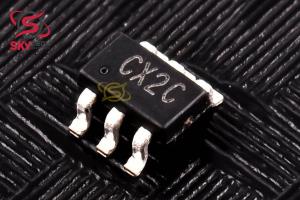

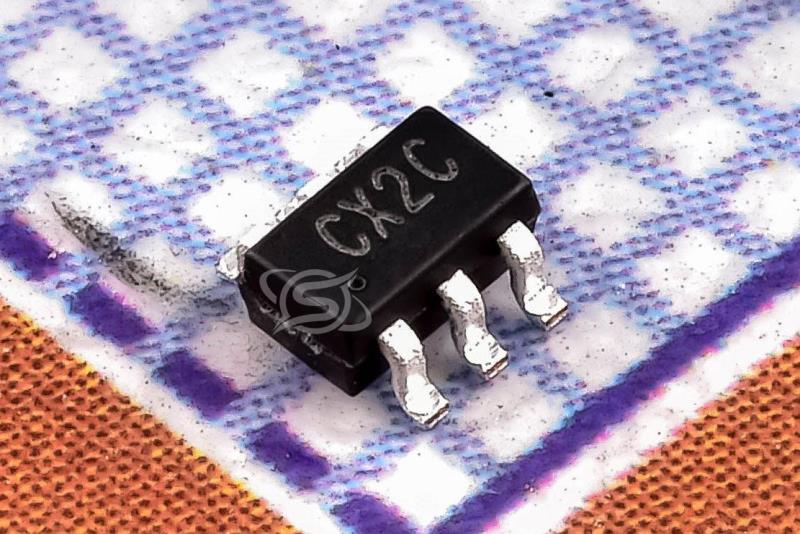

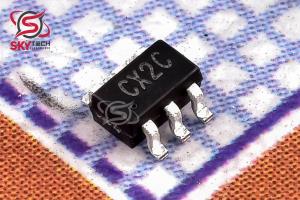

AIP74LVC1T45
Bus transceiver with dual power supply and tri-state control
کیفیت: ORIGINAL(distributor) پکیج: SOT-363
قیمت تک فروشی 83,195 ریال
قیمت عمده 79,275 ریال (10 به بالا)
قیمت ویژه 77,707 ریال (100 به بالا)
قیمت فوق العاده76,923 ریال (1000 به بالا)
![SKYTECH](bootstrap/img/Icon/tether.png) قیمت تک فروشی 0.122 تتر با تخفیف
0.740.70.690.68
|
توضیحات
AiP74LVCH1T45 فرستندههاي تک بيتي و دوگانه با خروجيهاي 3 حالته هستند که امکان ترجمه سطح دو طرفه را فراهم ميکنند. آنها داراي دو پورت ورودي-خروجي 1 بيتي (A و B)، ورودي کنترل جهت (DIR) و دو پايه تغذيه (VCC(A) و VCC(B) هستند. هر دو VCC(A) و VCC(B) را مي توان در هر ولتاژي بين 1.2 ولت و 5.5 ولت تامين کرد و دستگاه را براي ترجمه بين هر يک از گره هاي ولتاژ پايين (1.2 ولت، 1.5 ولت، 1.8 ولت، 2.5 ولت، 3.3 ولت) مناسب مي کند. و 5.0 ولت). پين هاي A و DIR به VCC(A) و پايه B به VCC(B) ارجاع داده مي شوند. A HIGH در DIR امکان انتقال از A به B و LOW در DIR امکان انتقال از B به A را فراهم مي کند. مدار IOFF خروجي را غيرفعال مي کند و از هرگونه جريان برگشتي آسيب رسان در هنگام خاموش شدن دستگاه جلوگيري مي کند. .
Description
The AiP74LVCH1T45 are single bit, dual supply transceivers with 3-state outputs that enable bidirectional level translation. They feature two 1-bit input-output ports (A and B), a direction control input (DIR) and dual supply pins (VCC(A) and VCC(B)). Both VCC(A) and VCC(B) can be supplied at any voltage between 1.2 V and 5.5 V making the device suitable for translating between any of the low voltage nodes (1.2V, 1.5V, 1.8V, 2.5V, 3.3V and 5.0V). Pins A and DIR are referenced to VCC(A) and pin B is referenced to VCC(B). A HIGH on DIR allows transmission from A to B and a LOW on DIR allows transmission from B to A. The devices are fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing any damaging backflow current through the device when it is powered down. .
|
