فرستنده گیرنده

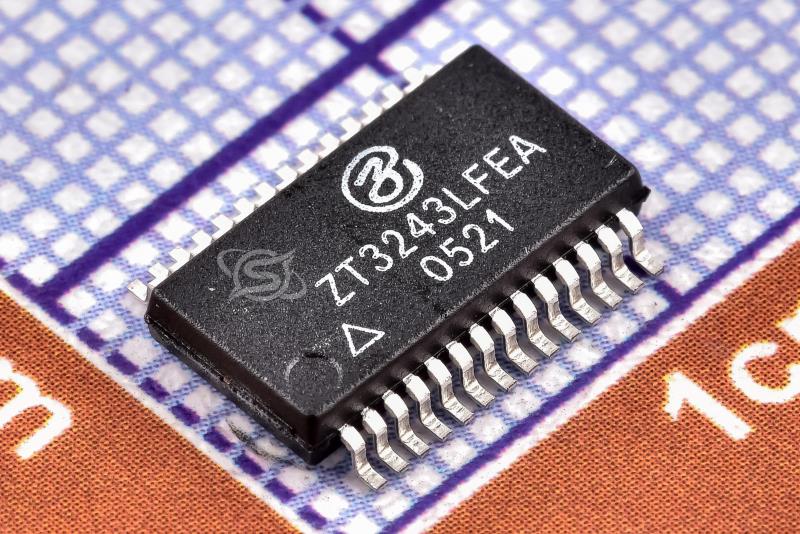

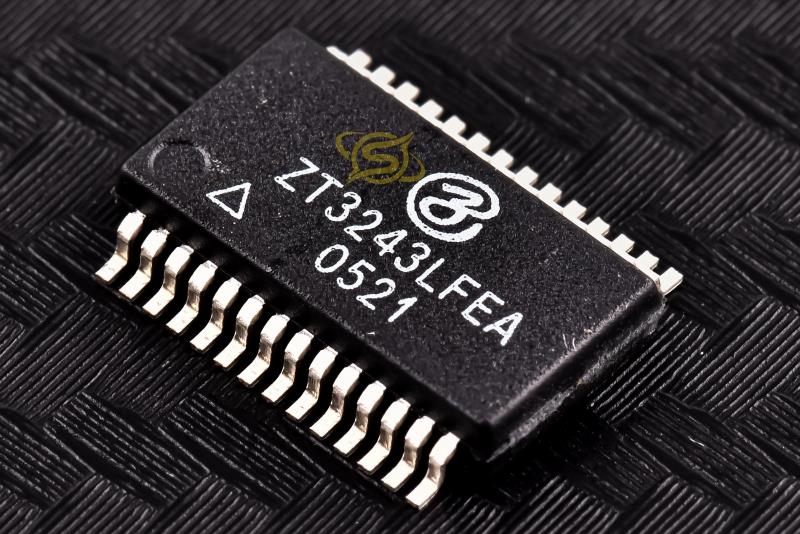

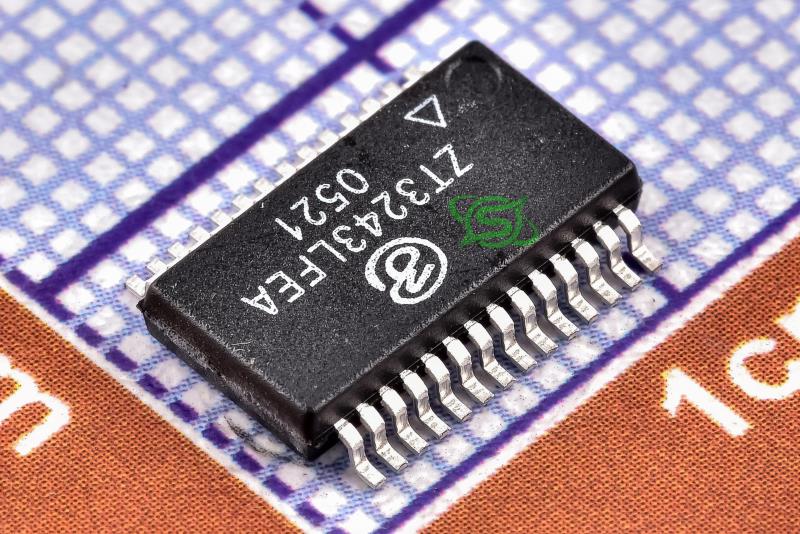

ZT3243FEA
Low Power +3V to +5.5V, 3D/5R 1000kbps RS232 Transceivers
کیفیت: ORIGINAL(distributor) پکیج: SSOP-28
قیمت تک فروشی 858,308 ریال
قیمت عمده 817,758 ریال (10 به بالا)
قیمت ویژه 801,538 ریال (100 به بالا)
قیمت فوق العاده793,428 ریال (1000 به بالا)
![SKYTECH](bootstrap/img/Icon/tether.png) قیمت تک فروشی 1.263 تتر با تخفیف
7.567.27.066.98
|
توضیحات
دستگاه هاي سري ZT3243F داراي رابط هاي ارتباطي EIA/TIA-232 و V.28/V.24 با برق 3 ولت هستند که نياز به انرژي کم دارند. آنها از سه درايور خط، پنج گيرنده خط و مبدل هاي ولتاژ تنظيم شده با خازن اختصاصي تشکيل شده اند.
اين دستگاهها از يک منبع تغذيه 3 ولت تا 5.5 ولت با نرخ داده تضميني 1000 هزار بيت در ثانيه با حفاظت تخليه الکترواستاتيکي (ESD) در همه پايههاي ورودي/خروجي RS232 بيش از 15 ± ولت IEC61000-4-2 تخليه شکاف هوا و
تخليه تماس ±8KV IEC61000-4-2.
سري ZT3243F داراي عملکرد اختصاصي AUTOGREEN (در انتظار ثبت اختراع) است که به طور خودکار مبدل هاي ولتاژ تنظيم شده روي تراشه و مدارهاي درايور را هنگامي که کابل RS-232 از رابط ميزبان جدا مي شود يا هنگامي که يک دستگاه جانبي متصل خاموش مي شود، خاموش مي کند.
Description
The ZT3243F Series devices are 3V powered EIA/TIA-232
and V.28/V.24 communication interfaces with low power
requirements. They consist of three line drivers, five line
receivers and the proprietary switch-capacitor regulated
voltage converters. These devices operate from a single 3V
to 5.5V power supply at the guaranteed data rate of 1000K
bits/sec with enhanced electrostatic discharge (ESD)
protection in all RS232 I/O pins exceeding ±15KV
IEC61000-4-2 Air Gap Discharge and ±8KV IEC61000-4-2
Contact Discharge.
The ZT3243F Series feature the AUTOGREEN (patent
pending) proprietary function which automatically powers
down the on-chip regulated voltage converters and driver
circuits when an RS-232 cable is disconnected from the
host interface or when a connected peripheral device is
turned off.
|
