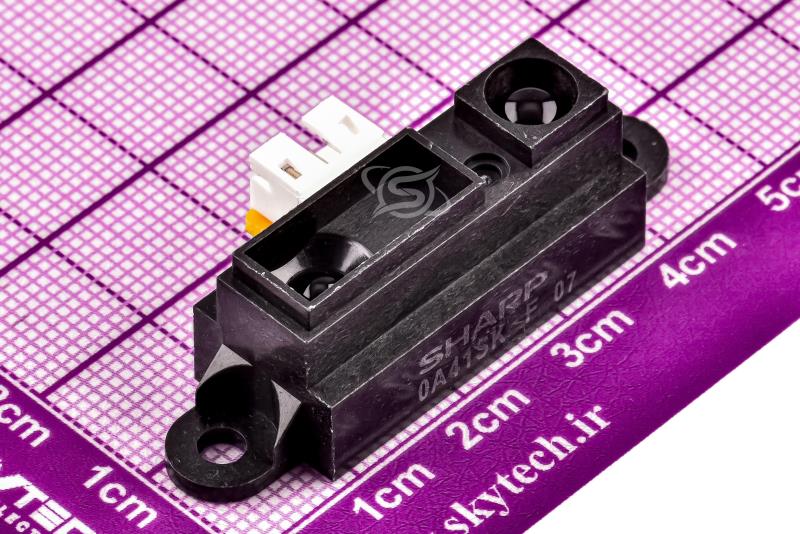

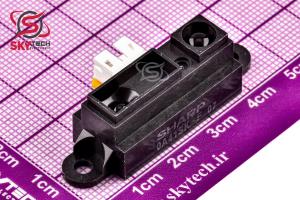

ماژول فاصله سنج نوری
GP2Y0A41SK0F
Sharp analog distance sensor features a detection range of 4cm to 30cm
کیفیت: ORIGINAL(distributor) پکیج:
قیمت تک فروشی 2,863,118 ریال
قیمت عمده 2,742,418 ریال (10 به بالا)
قیمت ویژه 2,689,309 ریال (100 به بالا)
قیمت فوق العاده2,662,755 ریال (1000 به بالا)
 قیمت تک فروشی 4.064 تتر با تخفیف
22.0821.1220.720.49
|
توضیحات
ماژول فاصله سنج مادون قرمز شارپ با کد تجاري GP2Y0A41SK يکي از سنسورهاي دقيق فاصله سنج نوري است که در محدوده 4 تا 30 سانتي متر توانايي تشخيص فاصله را دارد. از آنجايي که عملکرد سنسور فاصله سنج مادون قرمز با ولتاژ آنالوگ همراه مي‌باشد، کارايي ساده‌اي خواهد داشت.
پروتکل ارتباطي : خروجي آنالوگ
ولتاژ مورد نياز : در محدوده 4.5 تا 5.5 ولت DC
ولتاژ خروجي : 2.3 ولت
Description
The GP2Y0A41SK0F Sharp analog distance sensor features a detection range of 1.5? to 12? (4 cm to 30 cm). The shorter range gives you higher resolution measurements, and the lower minimum detection distance makes this sensor great for detecting very close objects. The distance is indicated by an analog voltage, making this sensor very easy to use.
The Sharp distance sensors are a popular choice for many projects that require accurate distance measurements. This IR sensor is more economical than sonar rangefinders, yet it provides much better performance than other IR alternatives. Interfacing to most microcontrollers is straightforward: the single analog output can be connected to an analog-to-digital converter for taking distance measurements, or the output can be connected to a comparator for threshold detection. The detection range of this version is approximately 4 cm to 30 cm (1.5? to 12?).

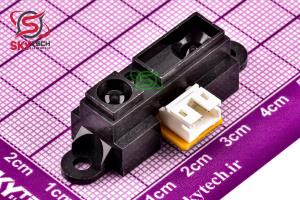

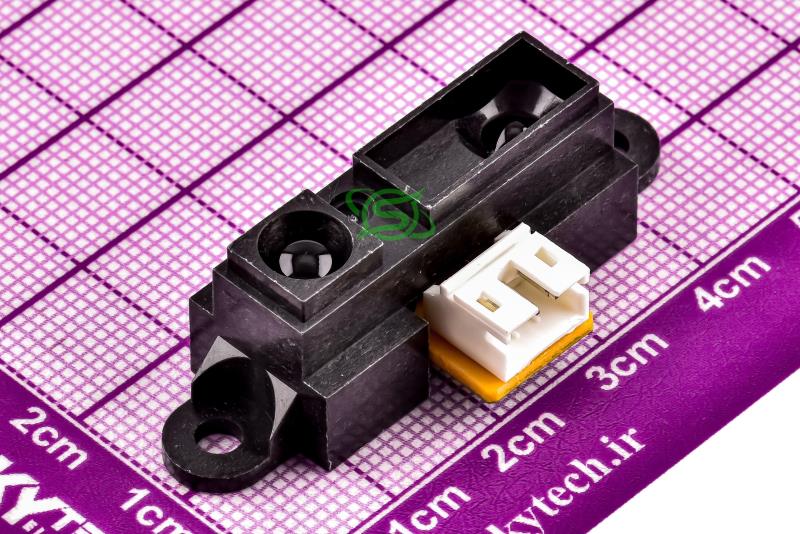

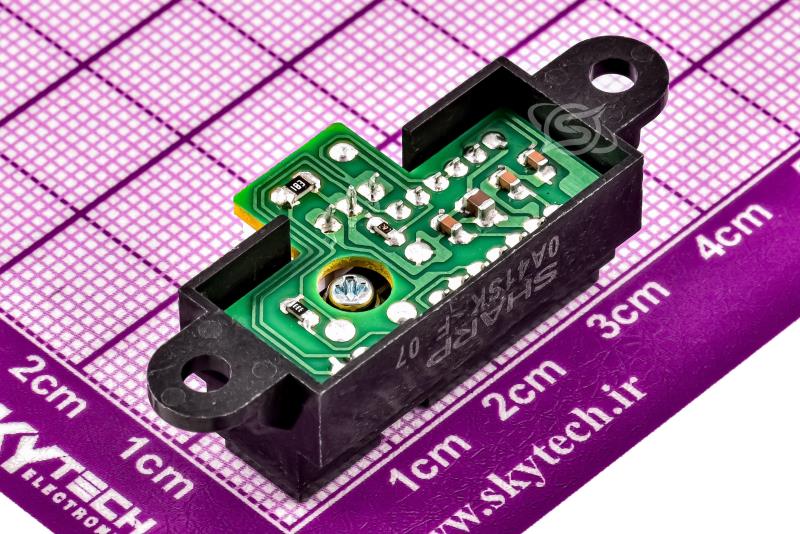

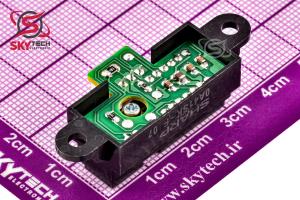

The GP2Y0A41 uses a 3-pin JST PH connector that works with our 3-pin JST PH cables for Sharp distance sensors (not included), as shown in the upper picture on the right. These cables have 3-pin JST connectors on one end and are available with pre-crimped male pins, pre-crimped female pins, and with unterminated wires on the other end. It is also possible to solder three wires to the sensor where the connector pins are mounted (see the lower picture to the right). When looking at the back, the three connections from left to right are power, ground, and the output signal.
|
