سوئیچ آنالوگ

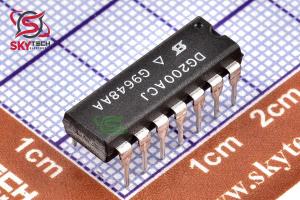

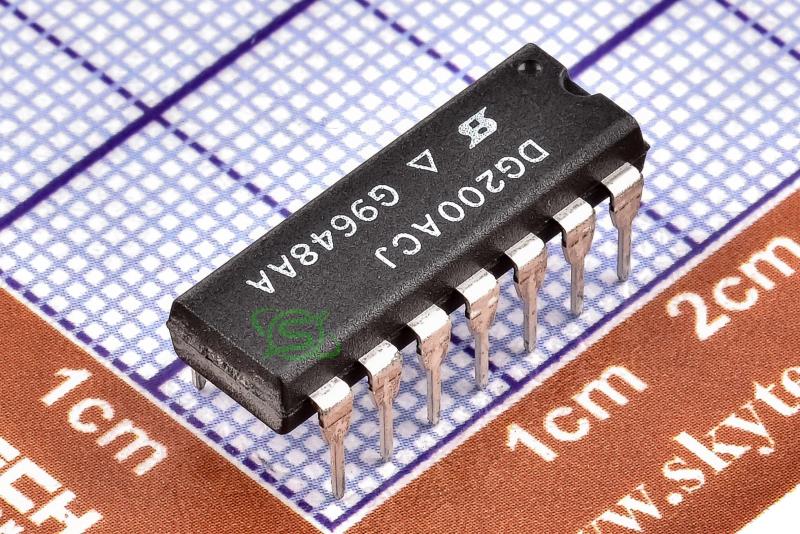

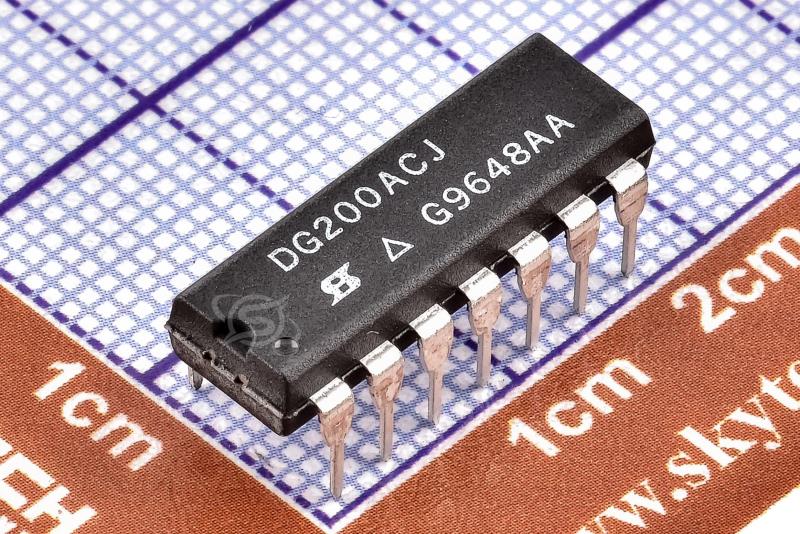

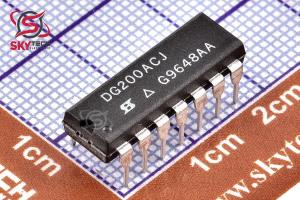

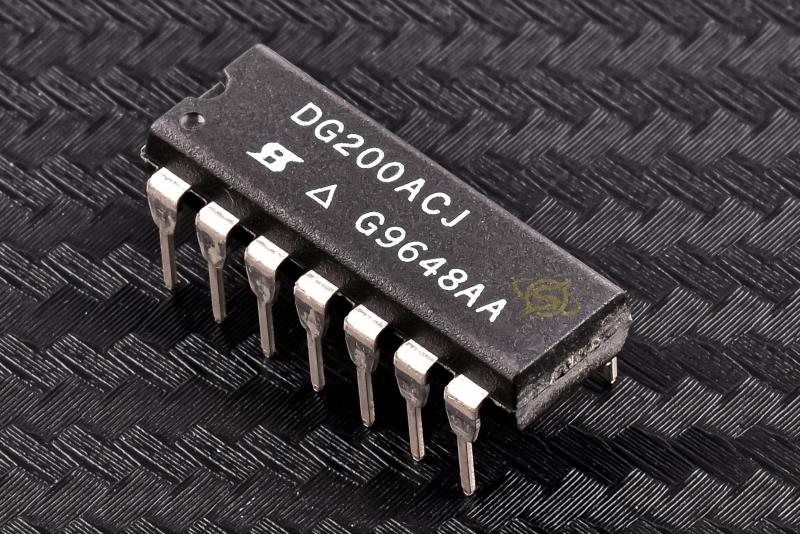

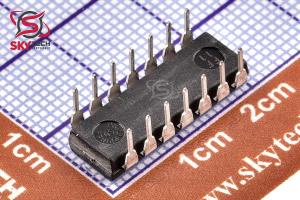

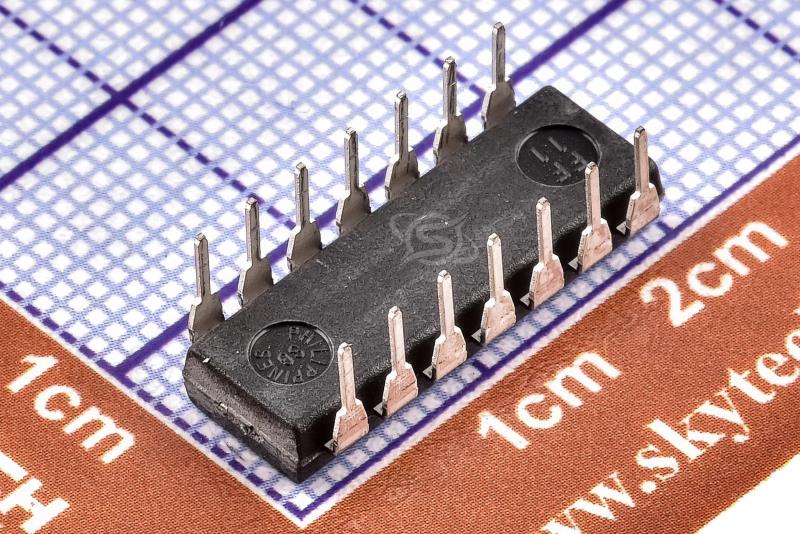

DG200ACJ
Monolithic Dual SPST CMOS Analog Switch
کیفیت: ORIGINAL(distributor) پکیج: PDIP-14
قیمت تک فروشی 2,642,350 ریال
قیمت عمده 2,519,500 ریال (10 به بالا)
قیمت ویژه 2,470,360 ریال (100 به بالا)
قیمت فوق العاده2,445,790 ریال (1000 به بالا)
 قیمت تک فروشی 2.835 تتر با تخفیف
14.1813.513.2313.09
|
توضیحات
قطعههاي DG2003، DG2004 و DG2005 سوئيچهاي آنالوگ CMOS دوکاناله (dual SPST) هستند که براي عملکرد بالا در سوئيچينگ سيگنالهاي آنالوگ طراحي شدهاند. اين سوئيچها با مقاومت روشن بسيار پايين (rDS(on): حدود 1.2 اهم)، سرعت سوئيچينگ بالا (14 نانوثانيه)، تزريق بار کم (1 پيکوکولن)، و مصرف توان پايين، گزينهاي مناسب براي دستگاههاي قابل حمل و سيستمهاي با تغذيه باتري به شمار ميروند. اين قطعهها در پکيج کوچک MSOP-8 عرضه شدهاند که فضاي بورد را کاهش داده و باعث سهولت در طراحي مدارهاي فشرده ميشود. عملکرد متقارن در هر دو جهت عبور سيگنال در وضعيت روشن، و توانايي بلوک سيگنال تا سطح تغذيه در وضعيت خاموش از ويژگيهاي کليدي آنها است. اين سري از فناوري کمولتاژ JI2 شرکت Vishay Siliconix ساخته شدهاند و لايه اپيتکسي از latch-up جلوگيري ميکند. اين قطعهها با ولتاژ تغذيه پايين (1.8 تا 5.5 ولت) کار ميکنند و کاملاً با منطق TTL/CMOS سازگار هستند.
Description
The DG2003, DG2004, and DG2005 are dual single-pole/single-throw (SPST) monolithic CMOS analog switches designed for high-performance analog signal switching. They offer low on-resistance (rDS(on): 1.2 ?), fast switching (14 ns), low charge injection (1 pC), and very low power consumption. Packaged in compact MSOP-8, they are ideal for portable and battery-powered systems requiring efficiency and minimal board space. These switches are built on Vishay Siliconix’s low-voltage JI2 process, with an epitaxial layer that prevents latchup. Each switch conducts equally well in both directions when on and blocks signals up to the supply voltage when off. Operating from 1.8 V to 5.5 V, the devices are TTL/CMOS compatible and suited for applications such as cell phones, communication systems, portable test equipment, and sample-and-hold circuits.
|
