توضیحات

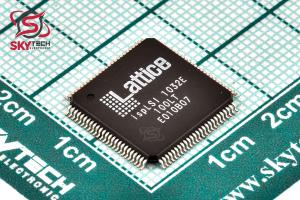

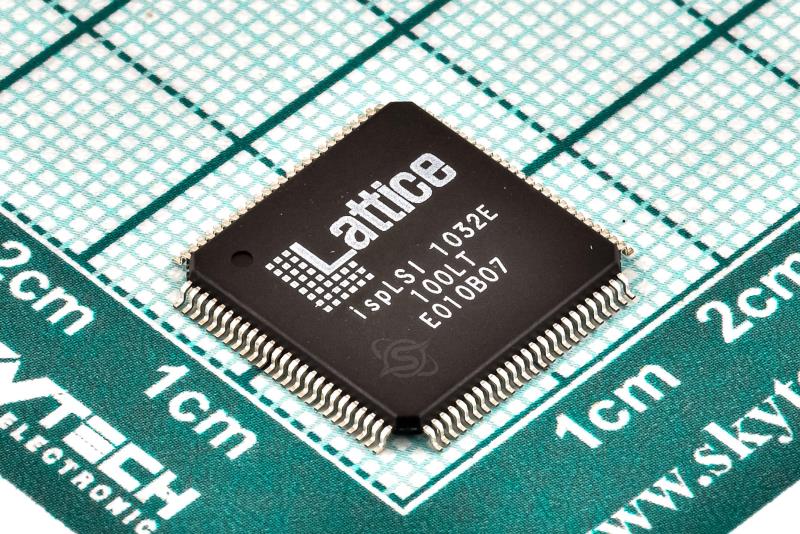

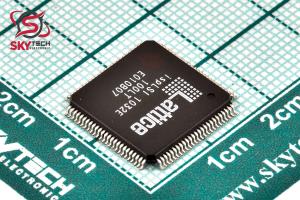

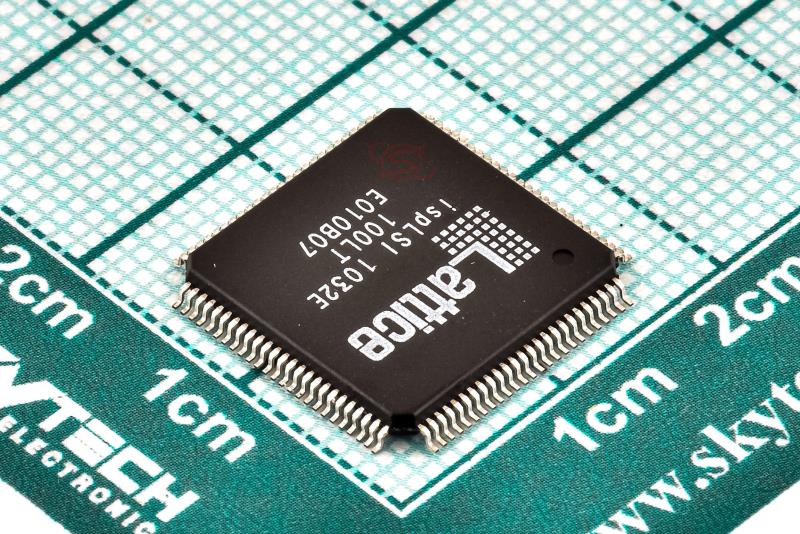

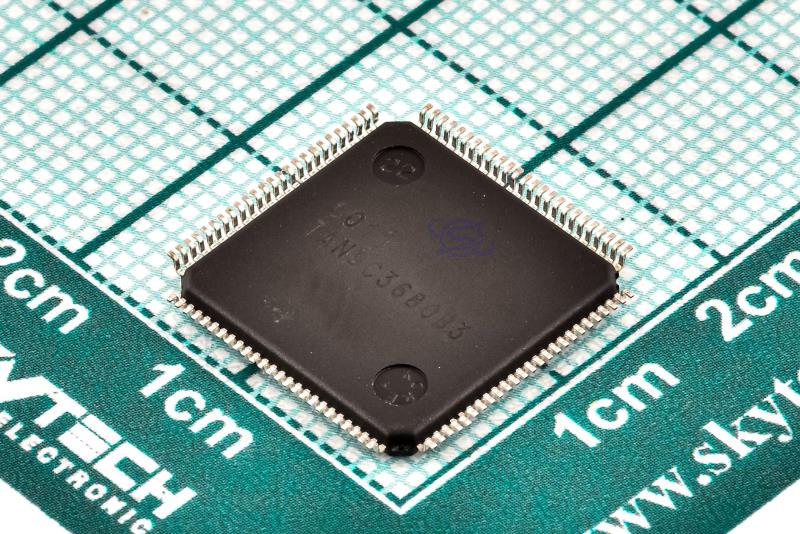

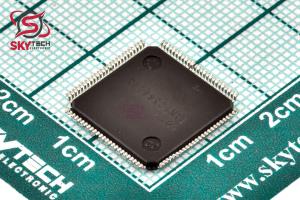

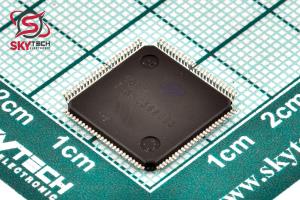

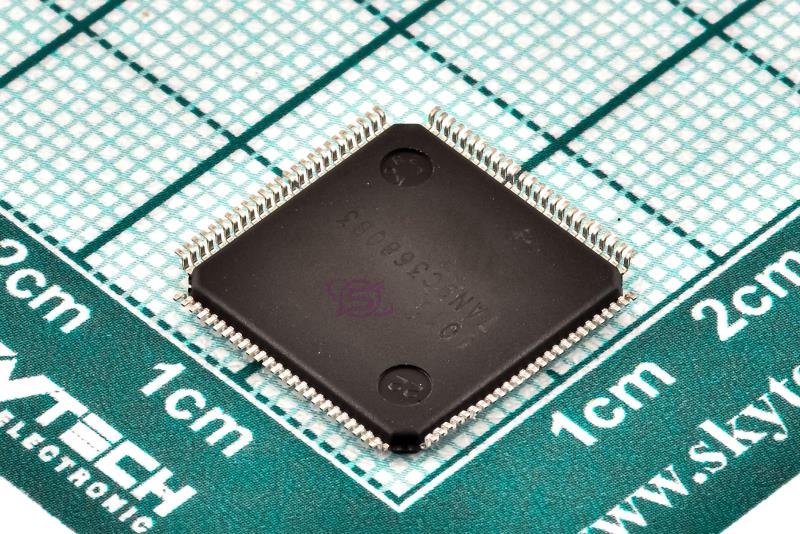

isplsi1032e يک ايسي قابل برنامه ريزي از نوع لاجيک با 192 ريجستر و 64 پين ورودي خروجي ميباشد.
8 پين ورودي، 4 پين ورودي کلاک ، و يک GRP.
-ويژگي ها :
-6000 گيت PLD
-64 پين ورودي خروجي
-ماکزيمم فرکانس عملياتي 125 مگاهرتز
-پين پليسمنت انعطاف پذير
-کلاک سنکرون و آسنکرون
-Small Logic Block Size for Random Logic
- High Speed Global Interconnect
Description
The ispLSI 1032E is a High Density Programmable Logic
Device containing 192 Registers, 64 Universal I/O pins,
eight Dedicated Input pins, four Dedicated Clock Input
pins and a Global Routing Pool (GRP). The GRP
provides complete interconnectivity between all of these
elements. The ispLSI 1032E device offers 5V non-volatile in-system programmability of the logic, as well as the
interconnects to provide truly reconfigurable systems. A
functional superset of the ispLSI 1032 architecture, the
ispLSI 1032E device adds two new global output enable
pins.
The basic unit of logic on the ispLSI 1032E device is the
Generic Logic Block (GLB). The GLBs are labeled A0,
A1…D7 (see Figure 1). There are a total of 32 GLBs in the
ispLSI 1032E device. Each GLB has 18 inputs, a programmable AND/OR/Exclusive OR array, and four outputs
which can be configured to be either combinatorial or
registered. Inputs to the GLB come from the GRP and
dedicated inputs. All of the GLB outputs are brought back
into the GRP so that they can be connected to the inputs
of any GLB on the device.
*Feaures:
• HIGH DENSITY PROGRAMMABLE LOGIC
— 6000 PLD Gates
— 64 I/O Pins, Eight Dedicated Inputs
— 192 Registers
— High Speed Global Interconnect
— Wide Input Gating for Fast Counters, State
Machines, Address Decoders, etc.
— Small Logic Block Size for Random Logic
• HIGH PERFORMANCE E2CMOS® TECHNOLOGY
— fmax = 125 MHz Maximum Operating Frequency
— tpd = 7.5 ns Propagation Delay
— TTL Compatible Inputs and Outputs
— Electrically Erasable and Reprogrammable
— Non-Volatile
— 100% Tested at Time of Manufacture
— Unused Product Term Shutdown Saves Power
• IN-SYSTEM PROGRAMMABLE
— In-System Programmable (ISP™) 5V Only
— Increased Manufacturing Yields, Reduced Time-toMarket and Improved Product Quality
— Reprogram Soldered Devices for Faster Prototyping
• OFFERS THE EASE OF USE AND FAST SYSTEM
SPEED OF PLDs WITH THE DENSITY AND FLEXIBILITY
OF FIELD PROGRAMMABLE GATE ARRAYS
— Complete Programmable Device Can Combine Glue
Logic and Structured Designs
— Enhanced Pin Locking Capability
— Four Dedicated Clock Input Pins
— Synchronous and Asynchronous Clocks
— Programmable Output Slew Rate Control to
Minimize Switching Noise
— Flexible Pin Placement
— Optimized Global Routing Pool Provides Global
Interconnectivity
— Lead-Free Package Options
|
