توضیحات
ايپرام( Eprom )برگرفته از erasable programmable read only memory است آي سي است که قابل خواندن ، برنامه ريزي و پاک شدن باشد ودر تمام دستگاههاي صوتي وتصويري وجود دارد و کار آن ذخيره سازي داده ها و مديريت کليه قطعات الکترونيکي يک دستگاه است اين آي سي يک نوع حافظه EEPROM ميباشد اين آي سي داراي 64KB حافظه ميباشد که با قطع برق و خاموش شدن پاک نميشود .
Description
The Microchip Technology Inc. 24AA64/24LC64/
24FC64 (24XX64*) is a 64 Kbit Electrically Erasable
PROM. The device is organized as a single block of
8K x 8-bit memory with a 2-wire serial interface. Lowvoltage design permits operation down to 1.7V, with
standby and active currents of only 1 mA and 3 mA,
respectively. It has been developed for advanced, lowpower applications such as personal communications
or data acquisition. The 24XX64 also has a page write
capability for up to 32 bytes of data. Functional
address lines allow up to eight devices on the same
bus, for up to 512 Kbits address space.
Features:
• Single-Supply with Operation down to 1.7V for
24AA64/24FC64 devices, 2.5V for 24LC64
devices
• Low-Power CMOS Technology:
- Active current 3 mA, max.
- Standby current 1 mA, max.
• 2-Wire Serial Interface, I2C™ Compatible
• Packages with 3 Address Pins are cascadable up
to 8 devices
• Schmitt Trigger Inputs for Noise Suppression
• Output Slope Control to Eliminate Ground Bounce
• 100 kHz and 400 kHz Clock Compatibility
• 1 MHz Clock for FC versions
• Page Write Time 5 ms, max.
• Self-timed Erase/Write Cycle
• 32-Byte Page Write Buffer
• Hardware Write-protect
• ESD Protection > 4,000V
• More than 1 Million Erase/Write Cycles
• Data Retention > 200 Years
• Factory Programming Available

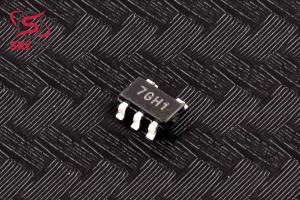

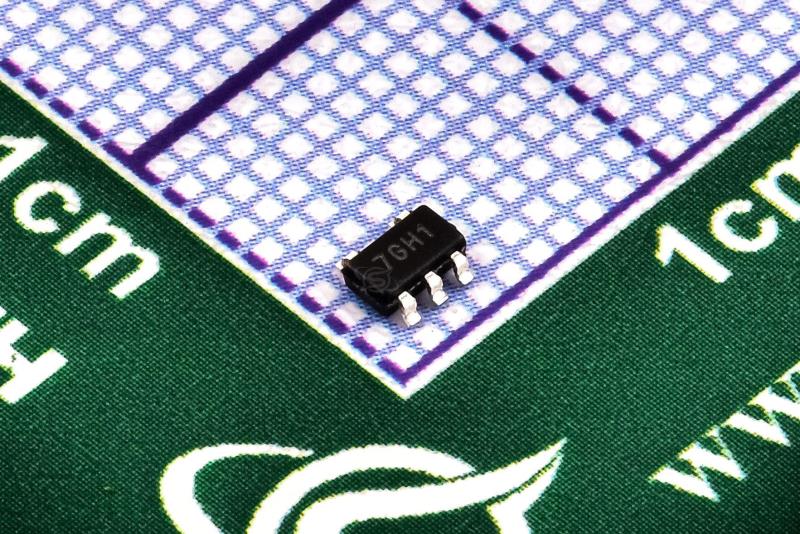

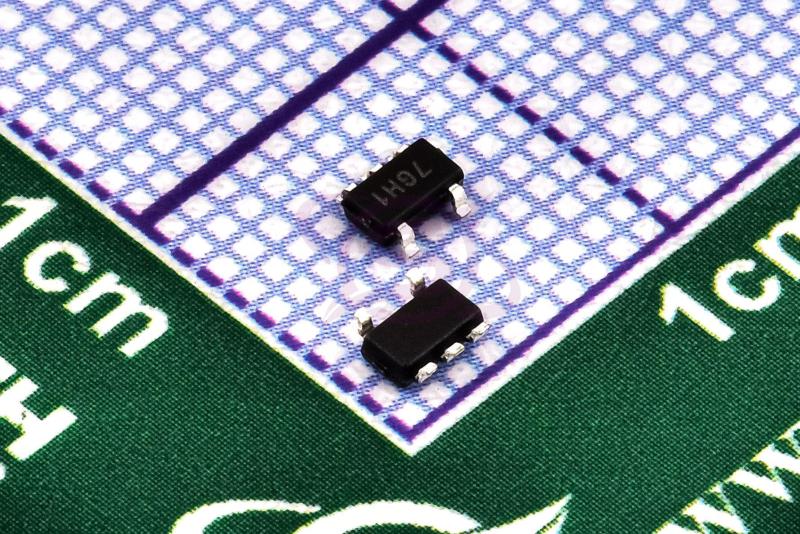

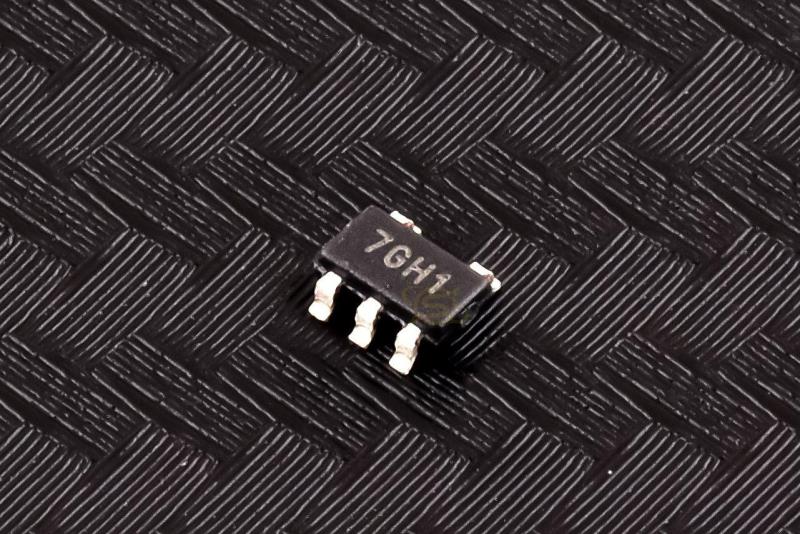

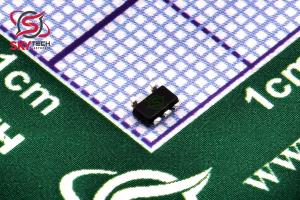

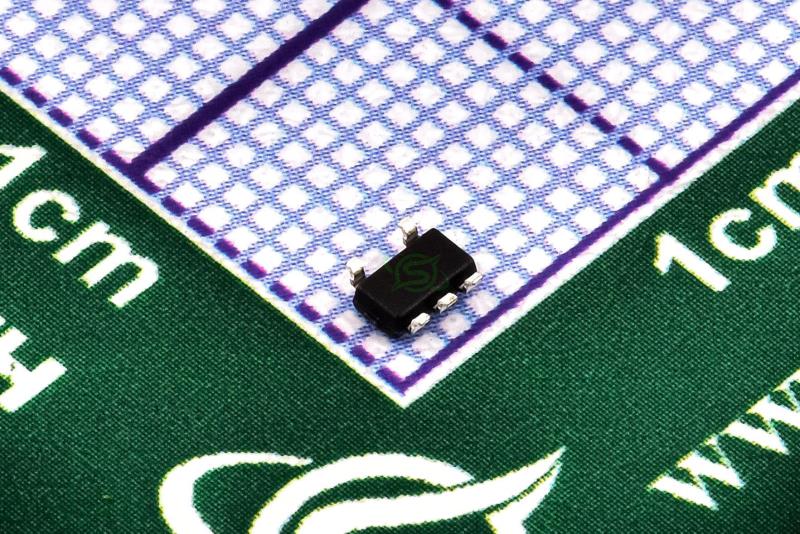

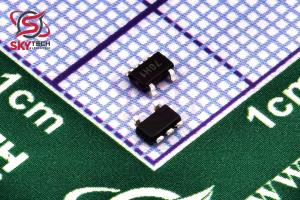

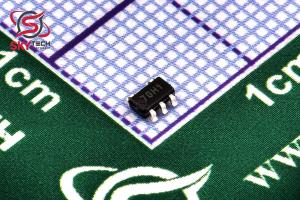

• Packages include 8-lead PDIP, SOIC, SOIJ,
TSSOP, X-Rotated TSSOP, MSOP, DFN, TDFN,
5-lead SOT-23 or Chip Scale
|
