پروگرمر
MPLAB PICKIT 3.5
The PICkit 3 programmer/debugger is a simple, low-cost in-circuit debugger that is controlled by a PC running MPLAB IDE
کیفیت: Not original(copy) پکیج:
قیمت تک فروشی 10,682,120 ریال
قیمت عمده 10,178,312 ریال (10 به بالا)
قیمت ویژه 10,037,246 ریال (100 به بالا)
قیمت فوق العاده9,966,713 ریال (1000 به بالا)
![SKYTECH](bootstrap/img/Icon/tether.png) قیمت تک فروشی 16.767 تتر با تخفیف
7267.265.8665.18
|
توضیحات
پروگرمر PICKIT ورژن 3.5 براي ميکروکنترلر هاي ميکروچيپ.
قابليت پروگرام کردن به صورت Off Line بدون کرش
پشتيباني از نسخه هاي مختلف نرم افزار MPLAB,MPLAB X
بدون نياز به firmware
سرعت برنامه ريزي بالاتر نسبت به ورژن هاي قبلي
با استفاده از اين پروگرامر مي توانيد انواع قديمي تا جديد ميکروکنترلرهاي PIC و DsPic را پروگرامر نماييد.
Description
The PICkit 3 programmer/debugger is a simple, low-cost in-circuit
debugger that is controlled by a PC running MPLAB IDE (v8.20 or greater) software on
a Windows® platform. The PICkit 3 programmer/debugger is an integral part of the
development engineer’s toolsuite. The application usage can vary from software
development to hardware integration.
The PICkit 3 programmer/debugger is a debugger system used for hardware and
software development of Microchip PIC® microcontrollers (MCUs) and dsPIC® Digital
Signal Controllers (DSCs) that are based on In-Circuit Serial Programming™ (ICSP™)
and Enhanced In-Circuit Serial Programming 2-wire serial interfaces. In addition to
debugger functions, the PICkit 3 programmer/debugger system also may be used as a
development programmer.
The debugger system executes code like an actual device because it uses a device
with built-in emulation circuitry, instead of a special debugger chip, for emulation. All
available features of a given device are accessible interactively, and can be set and
modified by the MPLAB IDE interface.
The PICkit 3 debugger was developed for emulating embedded processors with debug
facilities. The PICkit 3 features include:
• Full-speed USB support using Windows standard drivers
• Real-time execution
• Processors run at maximum speeds
• Built-in over-voltage/short circuit monitor
• Low voltage to 5V (1.8-5V range)

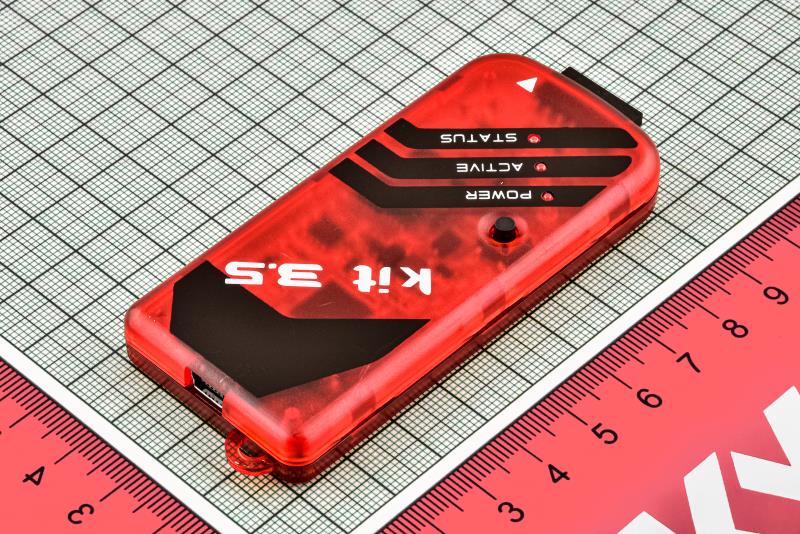

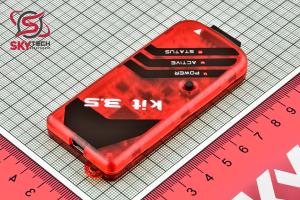

• Diagnostic LEDs (power, active, status)
• Read/write program and data memory of microcontroller
• Erase of all memory types (EEPROM, ID, configuration and program) with
verification
• Peripheral freeze at breakpoint
|
