Specifications:
Model: JQ-K1163T
Voltage range: 7V-18V
USB: Connect U disk (maximum support 32GB)
LED: digital color display

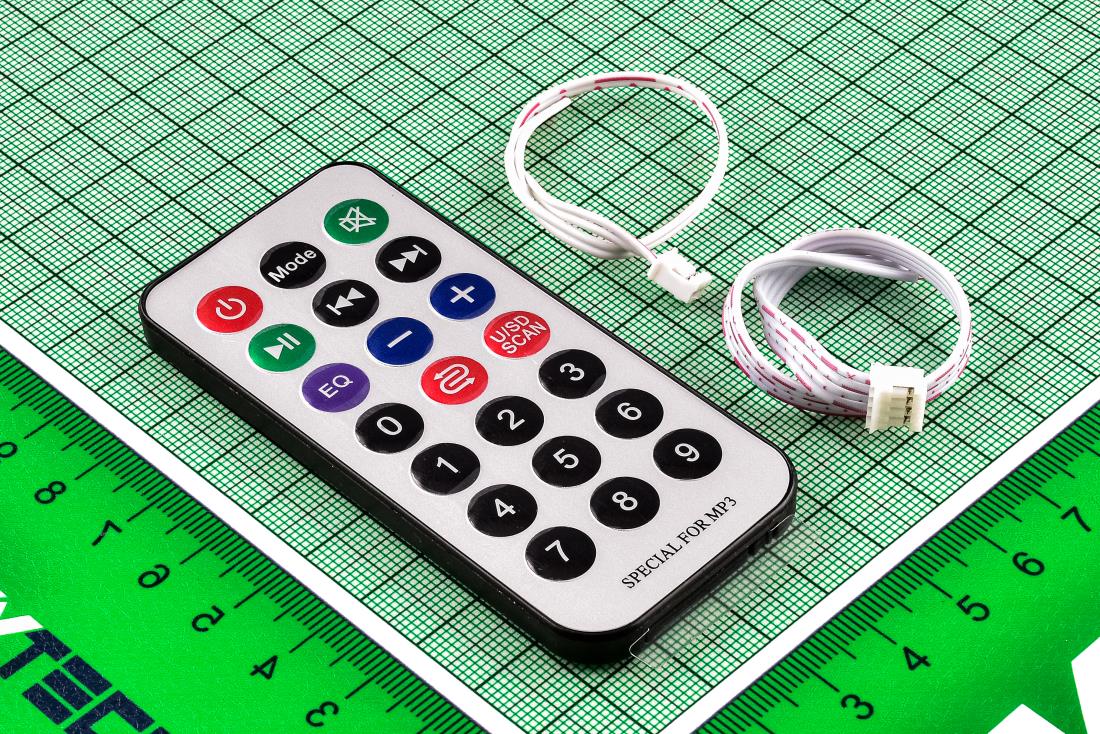

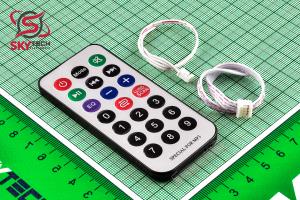

infrared receiver module
TF: Connect TF memory card (Maximum support 32GB)
AUX: audio input interface
VOL-button (previous song/volume down): In MP3 state, short press VOL-to last song, long press to lower volume. In the case of FM radio, short press to transmit up one channel. In the bluetooth function the short press is bluetooth the last song, long press is the volume decreases.
Scan button (play/pause): scan short press in MP3 state to play/pause; Short press in the FM radio state to automatically shut down and store stations; Short press to play/pause under bluetooth function.
VOL + button (next song / volume increase): short press VOL + in MP3 state for the next song, long press to increase volume. Short press in the case of FM radio to tune one station down. Short press in the bluetooth function of the next song in bluetooth, long press to increase the volume.
Mode: Switch between USB/TV/FM/Line in/Bluetooth
switch folder:
Switch to the previous folder: Double-click the VOL . button
Switch to the next folder: Double-click the VOL + . button
recording function:
-Internal recording can only record line in/FM/Bluetooth.
Long press the MODE button to start recording Long press the MODE button again to cancel the recording function and play the recording file.
-When recording, you need to connect a storage device, such as U disk or TF card.
More information:
Bluetooth IC: Bluetooth version 5.0
Music Format: MP3/WMA/WAV/FLAC/APE Lossless Music Format
FM radio frequency: 87.5-107.5MHZ
Support function introduction: Support MP3/USB/TF/Line in/FM/Bluetooth/Remote control connection/DC 5V or 12V (Optional)
About the case: Panel size: 107*25mm
