توضیحات

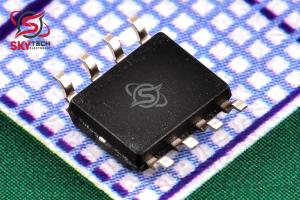

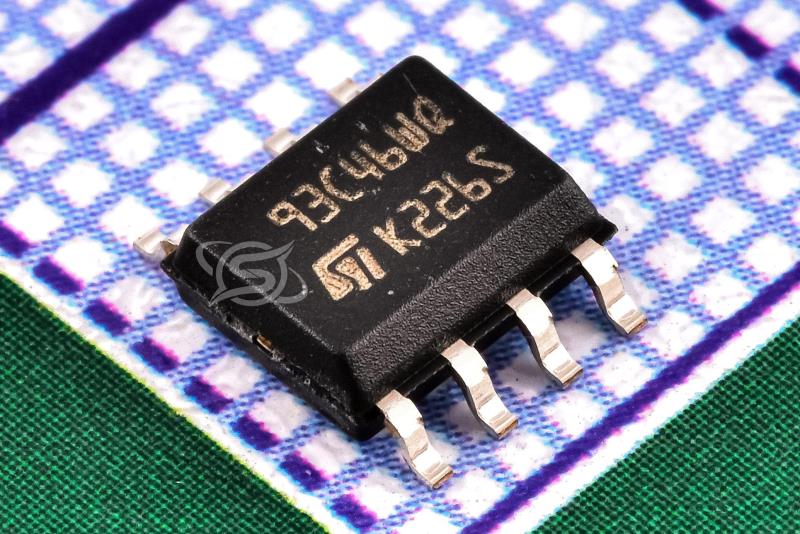

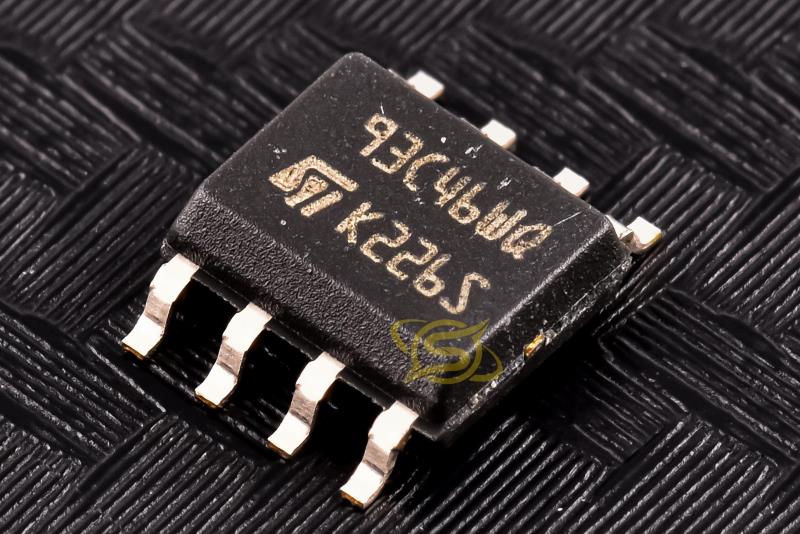

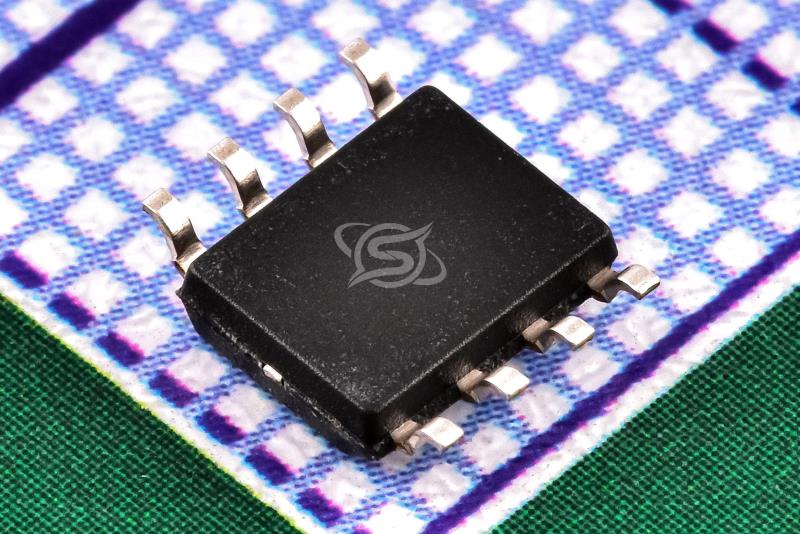

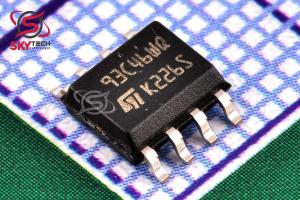

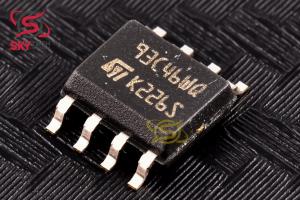

آي سي AT93C46يک EEPROM سريال 1Kb محصول کمپاني ATMEL مي باشد.اين آي سي براي استفاده در بسياري از مدارات تجاري و صنعتي کم مصرف با ولتاژ پايين مناسب مي باشد.
ويژگي ها :
*رنج گسترده ي ولتاژ عملياتي از 1.8تا 5.5 ولت
*جريان کاري پايين در حالت خواندن و نوشتن
*جريان مصرفي 1 ميکرو امپري در مد استند باي
*نگهداري ديتا تا 200سال
*قابليت نوشتن و پاک کردن تا 1 مليون بار
*عرضه شده در پکيج
8-pin DIP, 8-pin TSSOP
Description
AT93C46D
3-wire Serial EEPROM
1K (128 x 8 or 64 x 16)
The Atmel® AT93C46D provides 1,024 bits of Serial Electrically Erasable
Programmable Read-Only Memory (EEPROM) organized as 64 words of 16 bits
each (when the ORG pin is connected to VCC) and 128 words of 8 bits each (when
the ORG pin is tied to ground). The device is optimized for use in many industrial
and commercial applications where low-power and low-voltage operations are
essential. The AT93C46D is available in space-saving 8-lead JEDEC SOIC,
8-lead TSSOP, 8-pad UDFN, 8-lead PDIP, and 8-ball VFBGA packages.
The AT93C46D is enabled through the Chip Select pin (CS) and accessed via a
3-wire serial interface consisting of Data Input (DI), Data Output (DO), and Shift
Clock (SK). Upon receiving a Read instruction at DI, the address is decoded, and
the data is clocked out serially on the DO pin. The write cycle is completely
self-timed, and no separate erase cycle is required before Write. The write cycle is
only enabled when the part is in the Erase/Write Enable state. When CS is
brought high following the initiation of a write cycle, the DO pin outputs the
Ready/Busy status of the part.
The AT93C46D operates from 1.8V to 5.5V.
|
