سنسور فوتودیود

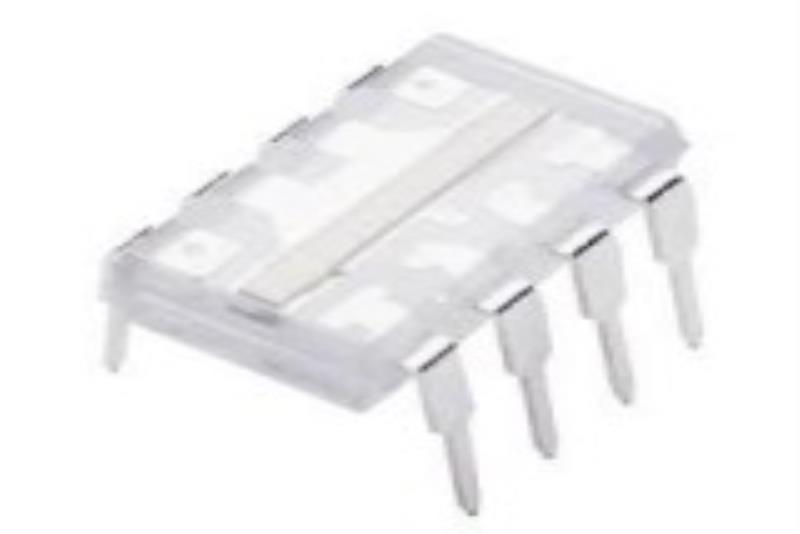

TSL1401
TSL1401 linear sensor array consists of a 128 × 1 array of photodiodes associated charge amplifier circuitry, and a pixel data-hold function that provides simultaneous-integration start and stop times for all pixels.
کیفیت: ORIGINAL(distributor) پکیج:
قیمت تک فروشی 1,058,170 ریال
قیمت عمده 952,953 ریال (10 به بالا)
قیمت ویژه 934,014 ریال (100 به بالا)
قیمت فوق العاده924,544 ریال (1000 به بالا)
قیمت تک فروشی 1.8 تتر با تخفیف
9.68.648.478.38
|
توضیحات
آي سي TSL1401 يک سنسور خطي شامل يک آرايه 1*128 از فتوديودها با دقت 400DPI مي باشد.
اين سنسور که 128 فتوديود که در يک آرايه ي خطي قرار گرفته اند را دربرمي گيرد ويژگي هاي زير را دارد:
ولتاژ عملياتي : 4.5 تا 5.5 ولت
محدوده ي دماي کاري : 0 تا 70+ درجه سلسيوس
جريان خروجي : 20 ميلي امپر
طول موج عملياتي : 400 تا 1000 نانومتر
نوع خروجي : انالوگ
Description
TSL1401
The TSL1401 linear sensor array consists of a 128 × 1 array of photodiodes, associated charge amplifier
circuitry, and a pixel data-hold function that provides simultaneous-integration start and stop times for all pixels.
The pixels measure 63.5 µm (H) by 55.5 µm (W) with 63.5-µm center-to-center spacing and 8-µm spacing
between pixels. Operation is simplified by internal control logic that requires only a serial-input (SI) signal and
a clock.
128 × 1 Sensor-Element Organization
400 Dots-Per-Inch (DPI) Sensor Pitch
High Linearity and Uniformity
for 256 Gray-Scale (8-Bit) Applications
Output Referenced to Ground
Low Image Lag . . . 0.5% Typ
Operation to 2 MHz
Single 5-V Supply
|
